1. Rated load: 3000kg
2. Bucket capacity: 1.7 m3
3. Engine: US Brand engine
2. Bucket capacity: 1.7 m3
3. Engine: US Brand engine
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
6920x2430x3151 mm
-
Machine Weight:
-
10200 kg
-
Bucket capacity:
-
2.4cbm
-
Marketing Type:
-
Provided
-
Warranty of core components:
-
Provided
-
Product name:
-
Changlin 3ton 1.8m3 wheel loader 937H chinese wheel loader
-
Bucket Capacity:
-
1.7m3
-
Rated Load:
-
3000
-
Max. Digging Force:
-
96kn
-
Max. Traveling Force:
-
105
-
Operating Weight:
-
10200
-
Rated Power:
-
92kw
-
Rated Speed:
-
2200r/min
-
Max. Torque:
-
500
-
Steering Angle:
-
±38°
Quick Details
-
Engine Brand:
-
imported
-
Power:
-
60 KW
-
Brand Name:
-
Oriemac
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
6920x2430x3151 mm
-
Machine Weight:
-
10200 kg
-
Bucket capacity:
-
2.4cbm
-
Marketing Type:
-
Provided
-
Warranty of core components:
-
Provided
-
Product name:
-
Changlin 3ton 1.8m3 wheel loader 937H chinese wheel loader
-
Bucket Capacity:
-
1.7m3
-
Rated Load:
-
3000
-
Max. Digging Force:
-
96kn
-
Max. Traveling Force:
-
105
-
Operating Weight:
-
10200
-
Rated Power:
-
92kw
-
Rated Speed:
-
2200r/min
-
Max. Torque:
-
500
-
Steering Angle:
-
±38°

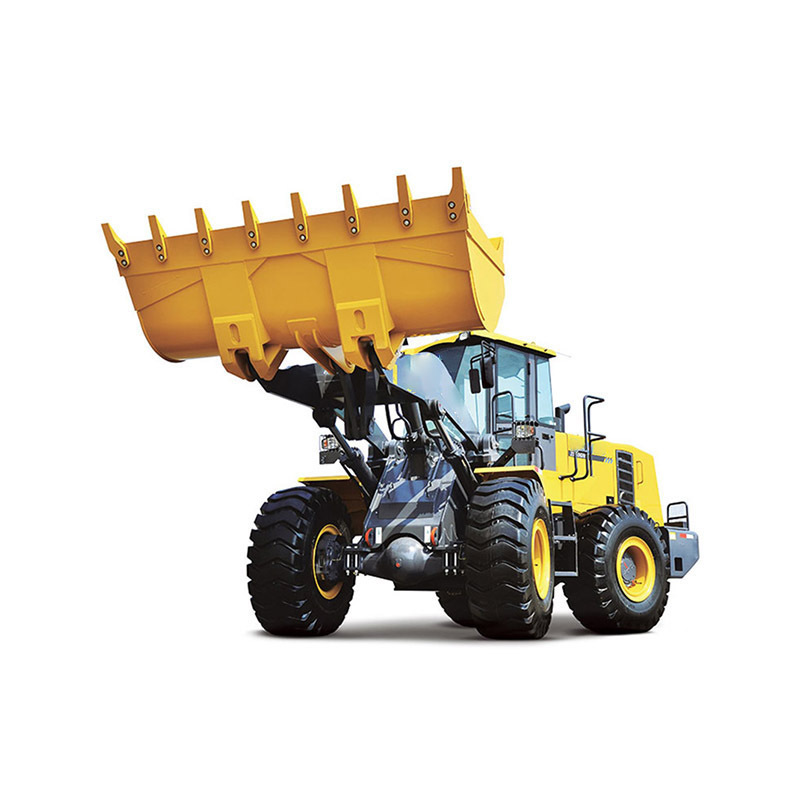

Product Overview
937H
1. The 937H Wheel Loader is equipped with US brand Engine.
2. This front end loader adopts 3 forward and 3 reverse power shift transmission.
3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
Features :
* 3 tons of gearbox, heavy-duty frame, heavy duty preferred.
* The turning radius is small and the steering is flexible, suitable for small venues.
* 3 tons of classic models, excellent quality, super cost-effective.
* Super traction, excellent shovel ability, and more convenient maintenance.
* Large bucket design, high bucket rate, especially suitable for earthwork, sand and gravel materials and other bulk scraping.
* 3 tons of gearbox, heavy-duty frame, heavy duty preferred.
* The turning radius is small and the steering is flexible, suitable for small venues.
* 3 tons of classic models, excellent quality, super cost-effective.
* Super traction, excellent shovel ability, and more convenient maintenance.
* Large bucket design, high bucket rate, especially suitable for earthwork, sand and gravel materials and other bulk scraping.
FEATURES AT A GLANCE
Right elevation
Left elevation
Rear elevation
PRODUCT SPECIFICATIONS
|
Model
|
937H
|
|
|
Length×Width×Height(mm)
|
7000×2305×3136
|
|
|
Rated load (Kg)
|
3000
|
|
|
Rated bucket capacity(m3)
|
1.7
|
|
|
Operating weight(Kg)
|
10200
|
|
|
Diesel engine
|
6BT5.9-C130
|
|
|
Rated output(KW)
|
97
|
|
|
Transmission case
|
SINOMACH
|
|
|
Gear positions
|
3 forward gear, 3 reverse gear
|
|
|
Max. drawing force(KN)
|
96
|
|
|
Max. dump clearance(mm)
|
2934
|
|
|
Dump reach (mm)
|
1043
|
|
|
Wheel base(mm)
|
2750
|
|
|
Total cycle time (s)
|
9.2
|
|
PRODUCT CONFIGURATION
Chinese high power engine
Imported control valve
Japan imported hydraulic motor
Product Show
Successful Project
Project in Chile
Project in Nigeria
Project in Zimbabwe
