Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
FZN25-12D
-
Rated current (A):
-
125A/630A
-
Rated voltage (kV):
-
12KV
-
Rated frequency:
-
50/60Hz
-
Mechanical life:
-
10000 Times
-
Model:
-
Indoor AC High-voltage Vacuum Load Switch
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
125A/630A
-
Rated Voltage:
-
12000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
FZN25-12D
-
Rated current (A):
-
125A/630A
-
Rated voltage (kV):
-
12KV
-
Rated frequency:
-
50/60Hz
-
Mechanical life:
-
10000 Times
-
Model:
-
Indoor AC High-voltage Vacuum Load Switch
Product Category
Product Description
The Lowest Price FZN25-12D 12kv Disconnect Break Electric Isolating Vacuum Load Switch

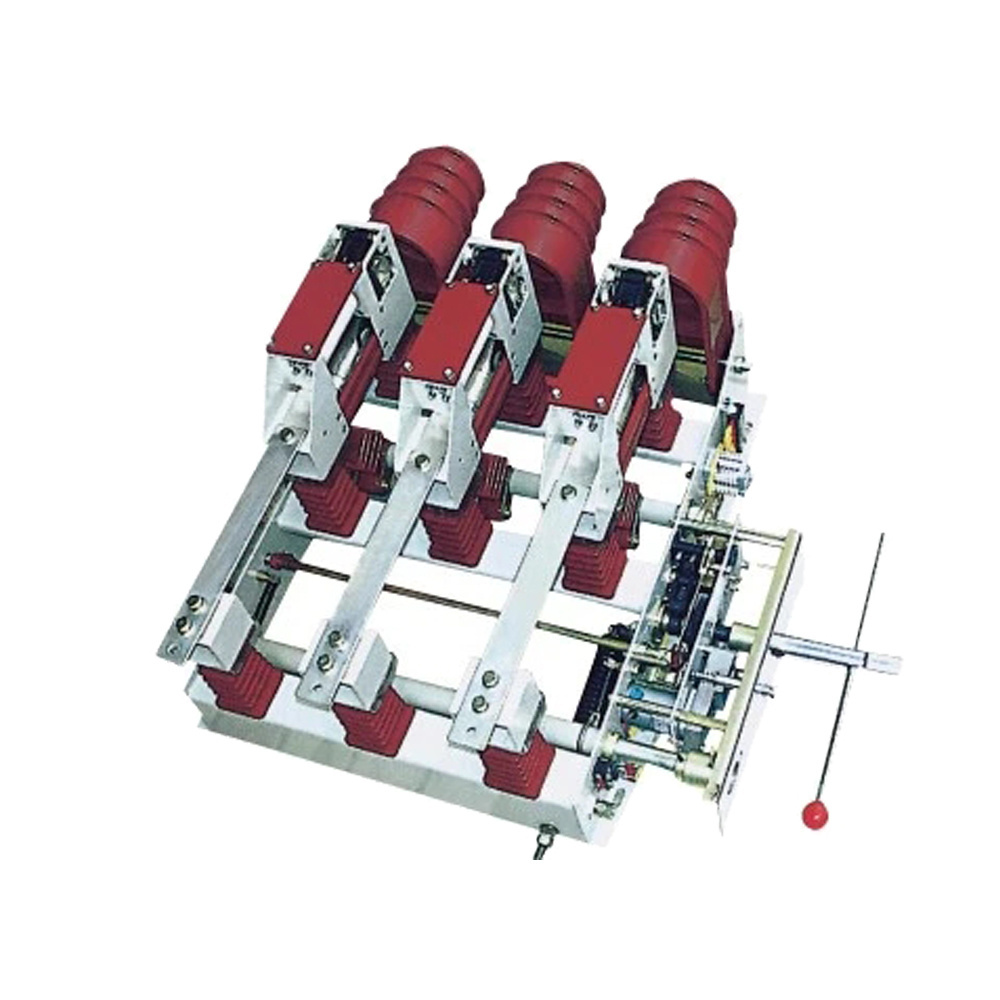

Indoor AC High-voltage Vacuum Load Switch
Product Detail
| Rated current (A) | 125A/630A |
| Rated voltage (kV) | 12KV |
| Rated frequency | 50/60Hz |
| Mechanical life | 10000 Times |
| Model | Indoor AC High-voltage Vacuum Load Switch |
| Product Keywords | 12kv disconnect switch,vacuum load break switch,electric load isolating switch |
Main application
FZN25, FZRN25 type vacuum load switch and composite apparatus, suitable for
three-phase AC 50Hz ring network or terminal power supply and industrial electrical
equipment, for load control and short circuit protection use, load switch open and
close the closed loop current, no-load transformer and cable charging current,
composite apparatus can break any current till rated short circuit current.
Adopt the straight move or isolating fracture and vacuum interrupter linkage. With
function of manual and electric operation.
FZN25, FZRN25 special transmission structure design, arc extinguish chamber only
withstand voltage in the moment of closing and breaking, small size, low price.
FZN25, FZRN25 can realize isolation fracture and arc extinguish chamber fracture
disposable operating.
FZN25, FZRN25 has a grounding switch mutual linkage grounding valve between the
static contact and movable conductive cylinder, ensures safety and convenient
maintenance.
