Quick Details
-
Model Number:
-
CX-LTFM
-
Product Name:
-
Gas / Liquid Turbine Flow Meter
-
Medium:
-
Water Liquid,Gas
-
Power supply:
-
220VAC/ 24VDC
-
Accuracy:
-
1.0%
-
Application:
-
Liquid Flow Measurement
-
Output:
-
4-20mA/pulse/RS485/RS232
-
Connection:
-
Flange Clamp Thread
-
Material:
-
Stainless Steel
-
Keywords:
-
Fuel Flow Meter Diesel
-
Display:
-
LCD Digital
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-LTFM
-
Product Name:
-
Gas / Liquid Turbine Flow Meter
-
Medium:
-
Water Liquid,Gas
-
Power supply:
-
220VAC/ 24VDC
-
Accuracy:
-
1.0%
-
Application:
-
Liquid Flow Measurement
-
Output:
-
4-20mA/pulse/RS485/RS232
-
Connection:
-
Flange Clamp Thread
-
Material:
-
Stainless Steel
-
Keywords:
-
Fuel Flow Meter Diesel
-
Display:
-
LCD Digital

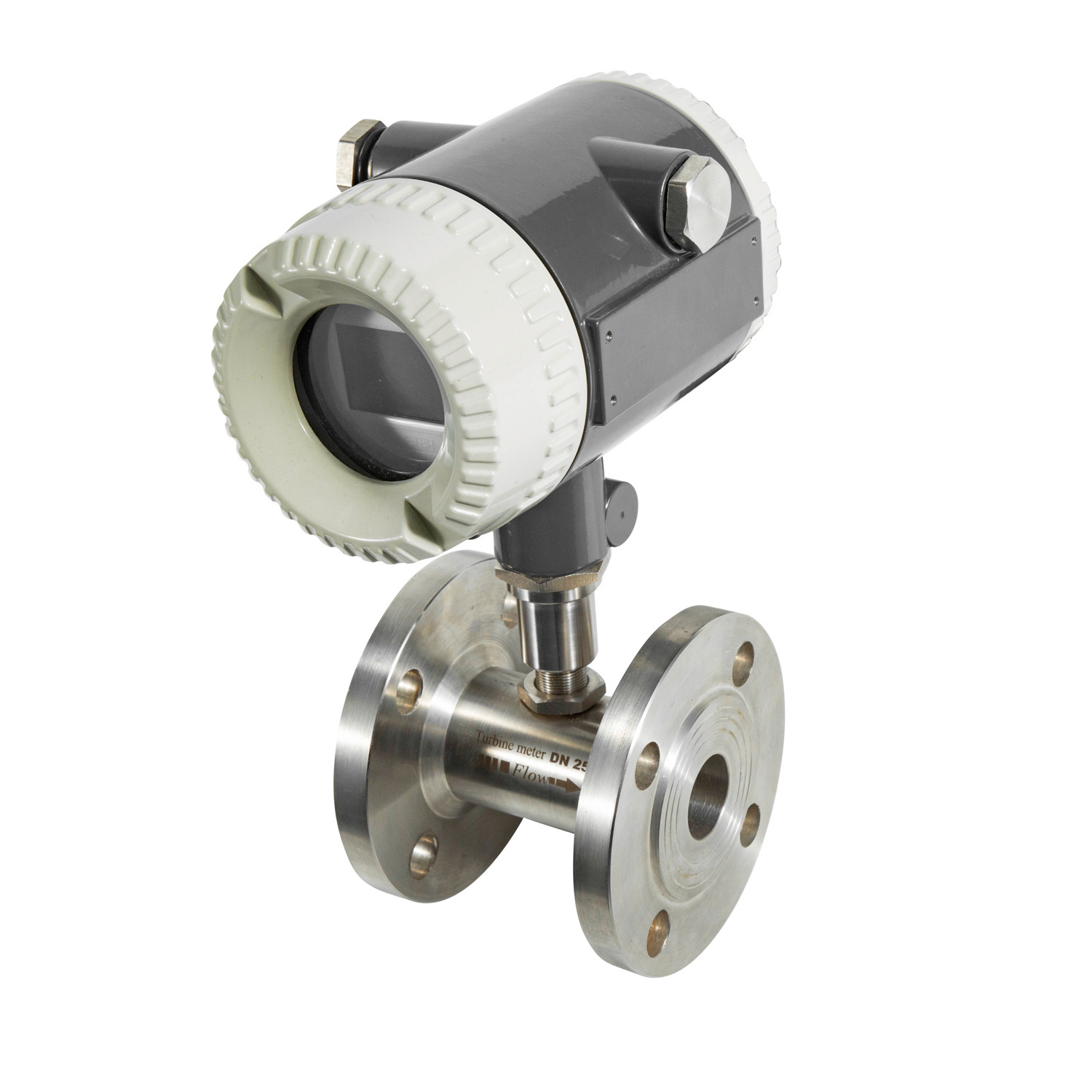

I ntelligent Liquid Turbine Flow Meter is the use of turbine flow sensor of ultra low power single chip microprocessor technology advanced and show that the new intelligent instrument product integration, using double crystalfield display, and has the advantages of compact mechanism, clear reading,high reliability, free from outside interference power, anti lightning, low costadvantages.
Liquid Turbine Flowmeter Feature
Liquid Turbine Flow Meter has advantages such as high accuracy, good repeatability, no zero drift, and high range ratio. The liquid turbine flowmeter has high-quality bearings and specially designed guide vanes, which greatly reduces wear and is not sensitive to peak values. Even under harsh conditions, it can provide reliable measurement variables. The output signal of the turbine flowmeter is a pulse, which is easy to digitize. The turbine flowmeter has small pressure loss, the blades can be corrosion-resistant, and can measure viscous and corrosive media.
Gas Turbine Flow Meter
| Product Name | Gas Turbine Flow Meter |
| Standard | GB/T8940-2003 |
| Connection Size(mm) | 20,25,32,40,50,65,80,100,125,150,200,250,300(flange connection) |
| Connection Size(mm) | 25,40,50(can be made with thread connection) |
| Accuracy | ±1.5%(±1% customized) |
| Range ratio | 1:10 ;1:20 ;1:30 |
| Material |
Body:SS304 or cast aluminium impeller:anticorrosive ABS or quality aluminium alloy Convertor : cast aluminium |
| Working Condition |
Medium Temperature:-20~80C of Natural Gas Turbine Flow Meter Ambient Temperature:-30~60C Relative humidity:5%~90%;Working pressure:86Kpa~106Kpa |
| Supply |
A.external power:+24VDC±15%,ripple wave≤±5%,suitable for 4-20mA,Pulse,RS485 B.internal power:1 group 3.0V10AHlithium battery,battery power can do formal work in2.0v~3.0v. |
| Output | Pulse,4-20mA,control signal |
| Communication | RS485 of Natural Gas Turbine Flow Meter |
| Explosion proof | ExdⅡBT6 or ExiaⅡCT4 |
| Protect | IP65 of hydrogen gas flow meter |
Gas turbine flow meters are mainly used for measuring the flow rate of medium fluids such as air, nitrogen, oxygen, hydrogen, biogas, natural gas, steam, etc. in industrial pipelines. When measuring the volumetric flow rate under working conditions, they are almost not affected by parameters such as fluid density, pressure, temperature, viscosity, etc. No movable mechanical parts, therefore high reliability and low maintenance. The instrument parameters can be stable for a long time. The gas vortex flowmeter adopts a piezoelectric stress sensor, which has high reliability and can operate within the working temperature range of -20 ℃ to+250 ℃. There are analog standard signals and digital pulse signal outputs, which are easy to use in conjunction with digital systems such as computers. It is a relatively advanced and ideal flow instrument.
Liquid Turbine Flowmeter
| Product Name | stainless steel liquid turbine flowmeter for alcohol diesel milk water |
| Measuring medium | Liquid(Water,liquefied petroleum gas ,refined oil ,light crude oil ,organic liquid,inorganic liquid and other fiber,particulate impurities of liquid ) |
| Nominal diameter | DN4-DN200 |
| Accuracy | 0.2%,0.5%,1% |
| Nominal pressure | 1.0MPa,1.6MPa, 2.5Mpa; 4.0Mpa; 6.3MPa, |
| Power supply | 3.6V lithium battery; 12VDC; 24VDC; |
| Output signal | three-wire pulse output, two-wire 4-20mA output |
| Communication Protocol | Hart/RS485 |
| Environmental conditionas | Ambient temperature: -20 ℃ ~ +60 ℃; Relative humidity: 5% to 95%; Atmospheric pressure: 86kPa ~ 106kPa; |
| Explosion-proof grade | CT-4,CT6 |
