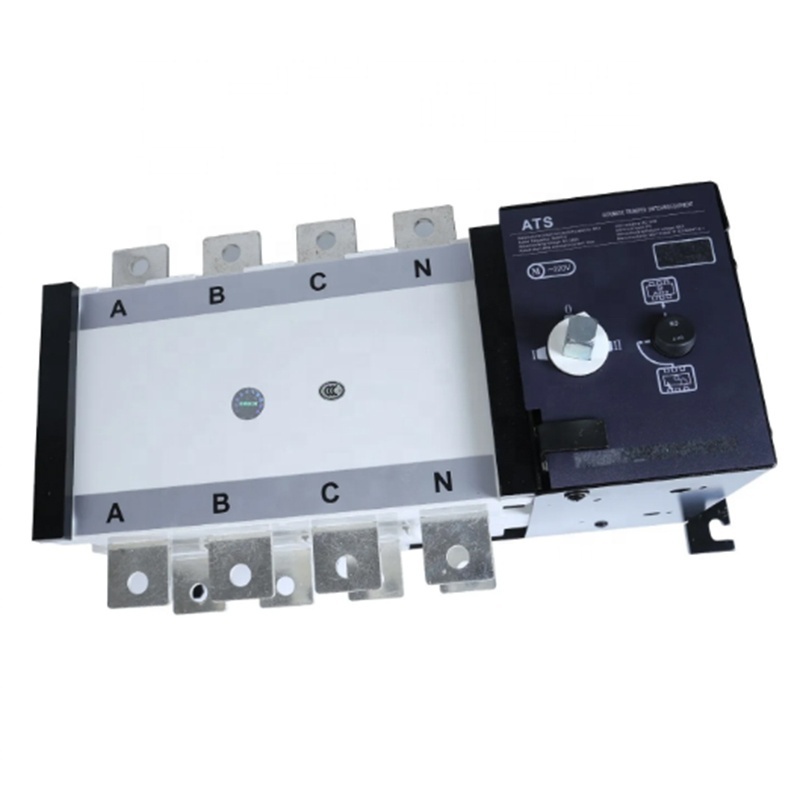

Quick Details
-
Model Number:
-
HGLD-100
-
Rated Voltage:
-
230/400V
-
Pole number:
-
4P
-
Rated ampere::
-
100A-3200A
-
Dimensions:
-
247*108*145--640*440*500mm
-
Packing::
-
Single carton
-
Quality grade::
-
excellent
Quick Details
-
Poles Number:
-
1.2.3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODM/CNTOPSUN
-
Model Number:
-
HGLD-100
-
Rated Voltage:
-
230/400V
-
Pole number:
-
4P
-
Rated ampere::
-
100A-3200A
-
Dimensions:
-
247*108*145--640*440*500mm
-
Packing::
-
Single carton
-
Quality grade::
-
excellent
Product Description
| Agreed thermal current lth | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated insulation voltage Ui | 750V | 1000V | |||||||||||||||
| Rated impulse withstand voltage Uimp | 8KV | 12KV | |||||||||||||||
| Rated voltage of the switch copper | AC 440V | ||||||||||||||||
| Rated work curret le AC-33A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated connection capability | 10 le | ||||||||||||||||
| Rated breaking capability | 10 le | ||||||||||||||||
| Rated conditional short-circuit current | 100KA | 70KA | 100KA | 120KA | 80KA | ||||||||||||
| Rated short-time withstand current IS | 7KA | 9KA | 13KA | 26KA | 50KA | 55KA | |||||||||||
| Transfer time I-II or II -I | 0.45s | 0.6s | 1.2s | 2.4s | |||||||||||||
| Control voltage of the switch motor | DC24V AC220V AC280V | ||||||||||||||||
