Quick Details
-
Color:
-
FULL COLOR
-
Panel Size:
-
500*500mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
RX391
-
Product name:
-

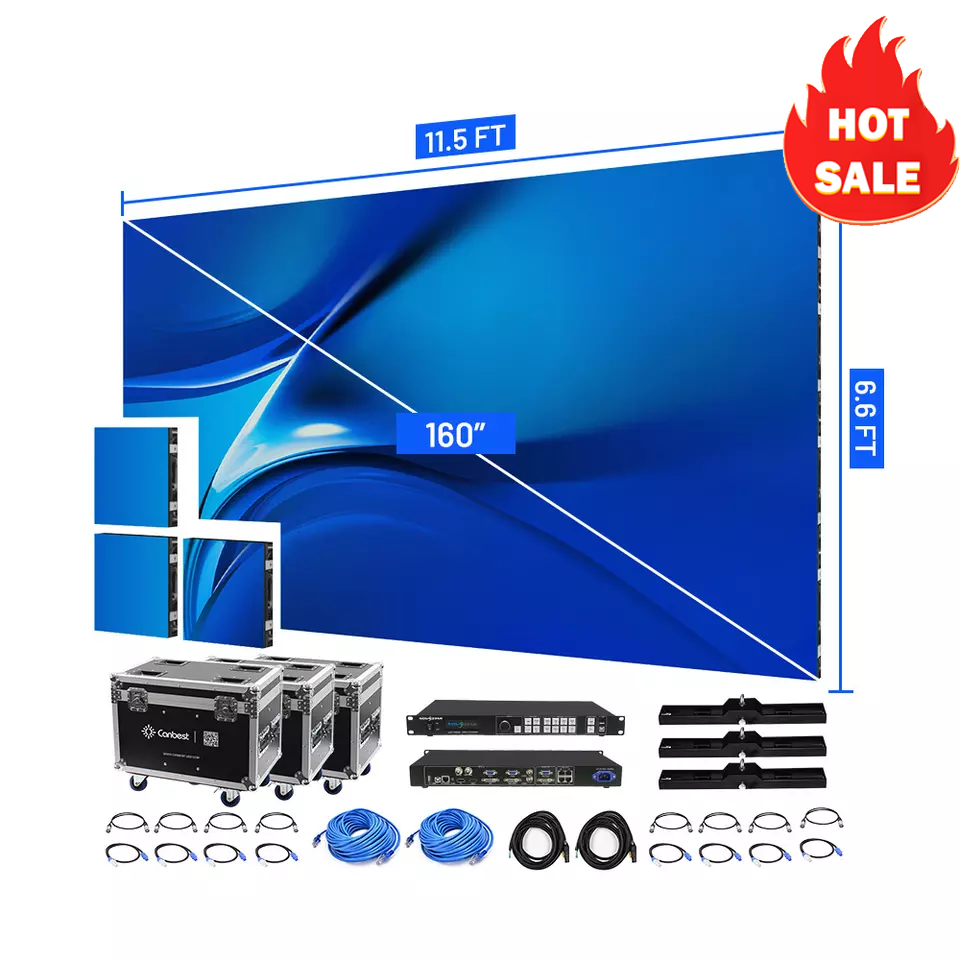

Canbest RX P2.6 P3.9 Turnkey Led Video Wall System Package
-
Cabinet Material:
-
Die Cast Aluminum
-
Refresh Rate (Hz):
-
3840
-
Driving Method:
-
1/32
-
Life span:
-
100000hours
-
Warranty:
-
5 Years
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Display Function:
-
Video Picture Graphic Text Message
-
After-sales Service Provided:
-
Online Video Technical Support
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Canbest
-
Color:
-
FULL COLOR
-
Panel Size:
-
500*500mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
RX391
-
Product name:
-
Canbest RX P2.6 P3.9 Turnkey Led Video Wall System Package
-
Cabinet Material:
-
Die Cast Aluminum
-
Refresh Rate (Hz):
-
3840
-
Driving Method:
-
1/32
-
Life span:
-
100000hours
-
Warranty:
-
5 Years
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Display Function:
-
Video Picture Graphic Text Message
-
After-sales Service Provided:
-
Online Video Technical Support
Warranty
Technical Parameter
|
Items
|
RX261
|
RX291
|
RX391
|
|
LED Configuration
|
SMD1415
|
SMD1415
|
SMD1921
|
|
Pixel Pitch（ mm）
|
2.604
|
2.9mm
|
3.9mm
|
|
Cabinet resolution(dots)
|
192x192
|
168x168
|
128x128
|
|
Cabinet Density（ dots /m²）
|
147474
|
113367
|
65536
|
|
Module Size（L x W x H）/( mm)
|
250mmx250mm
|
250mmx250mm
|
250mmx250mm
|
|
Cabinet Size（L x W x L）/( mm)
|
500x500x87mm
|
500x500x87mm
|
500x500x87mm
|
|
Cabinet Material
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
|
Cabinet Weight ( Per Panel/ kg)
|
7.5Kg
|
7.5Kg
|
7.5Kg
|
|
Color Depth(Bit)
|
16
|
16
|
16
|
|
Gray Scale
|
65536
|
65536
|
65536
|
|
Refresh Rate（ Hz）
|
≥3840
|
≥3840
|
≥3840
|
|
Driving Mode
|
1/32
|
1/28
|
1/16
|
|
Brightness（ nit）
|
≥1000
|
≥1000
|
≥1000
|
|
Viewing Angle（ H/V°）
|
140/120°
|
140/120°
|
140/120°
|
|
Input Voltage（ V）
|
AC110V/AC220V±10%
|
AC110V/AC220V±10%
|
AC110V/AC220V±10%
|
|
Input Frequency（ Hz）
|
60
|
60
|
60
|
|
Power Consumption Max.( W/m²）
|
650
|
650
|
650
|
|
Power Consumption Ave.（ W/m²）
|
200
|
220
|
220
|
|
Storage Temperature （ ℃）
|
-15 ~ 50
|
-15 ~ 50
|
-15 ~ 50
|
|
Working Temperature（ ℃）
|
-10 ~ 40
|
-10 ~ 40
|
-10 ~ 40
|
|
Storage Humidity（ RH）
|
10%~90%
|
10%~90%
|
10%~90%
|
|
Protection Level
|
IP40
|
IP40
|
IP40
|
|
Installation Type
|
Hanging / Stacking
|
Hanging / Stacking
|
Hanging / Stacking
|
|
Maintenance Type
|
Front and Rear
|
Front and Rear
|
Front and Rear
|
