Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengfeng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
500 kg
-
Core Components:
-
Other
-
PLC Brand:
-
other
-
Product name:
-
screen basket
-
Function:
-
pulp screening
-
Material:
-
Stainless steel
-
Screen area:
-
0.3-4 m2
-
Screen hole size:
-
1.6-3.5mm
-
Screen slot size:
-
0.1-0.55mm
-
Seam size:
-
0.1-0.55mm
-
Screen hole:
-
50-1000TPD
-
Screen slot:
-
30-730TPD
-
Inlet pulp consistency:
-
1-4%
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
/
-
Max. workable width:
-
/
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengfeng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
500 kg
-
Core Components:
-
Other
-
PLC Brand:
-
other
-
Product name:
-
screen basket
-
Function:
-
pulp screening
-
Material:
-
Stainless steel
-
Screen area:
-
0.3-4 m2
-
Screen hole size:
-
1.6-3.5mm
-
Screen slot size:
-
0.1-0.55mm
-
Seam size:
-
0.1-0.55mm
-
Screen hole:
-
50-1000TPD
-
Screen slot:
-
30-730TPD
-
Inlet pulp consistency:
-
1-4%
Product Description

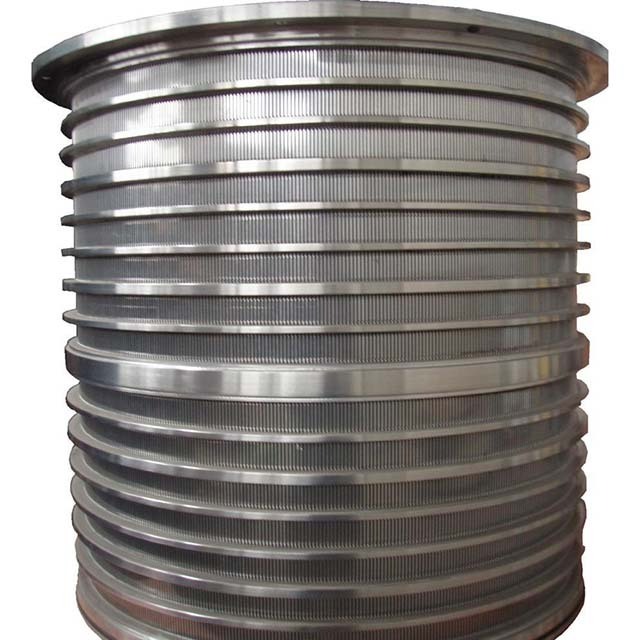

we manufacture and supply a superior quality range of Pressure Screen Baskets, which provide excellent results and great performance after the electro-polishing as well as chrome plating. Thus, we offer these products in varied shapes, sizes and dimensions according to the clients’ specific needs. These products are widely used by our clients across all over the world and are available with good quality.
Main Technical Parameters
| Type | ZNS0.3 | ZNS0.6 | ZNS0.9 | ZNS1.2 | ZNS1.5 | ZNS2 | ZNS3 | ZNS4 | |
| Screening area(m2) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 2 | 3 | 4 | |
| Inlet consistency(%) | 1.0-4.0 | ||||||||
| Production capacity(TPD) | Hole | 50-80 | 90-160 | 135-250 | 180-320 | 200-380 | 260-500 | 400-700 | 500-1000 |
| Slot | 30-50 | 60-100 | 90-150 | 120-190 | 140-230 | 220-300 | 300-450 | 350-730 | |
| Sieve hole size(mm) | Ø 1.6- Ø 3.5 | ||||||||
