Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hairui keyuan
-
Voltage:
-
220/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1500*1000*1200mm
-
Applicable Industries:
-
furniture workshop
-
Weight (KG):
-
480
-
Product Name:
-
wood mortising machine
-
Model:
-
MS3112
-
Motor Power:
-
2.2kw
-
Table size:
-
500*230mm
-
Spindle speed:
-
9000r/min
-
Maximum mortise depth:
-
60mm
-
Maximum mortise length:
-
120mm
-
Net weight:
-
480kg
-
Machine dimensions:
-
1500*1000*1200mm
Quick Details
-
Application:
-
Woodworking
-
Motor Speed:
-
9000r/min
-
Drill Diameter:
-
16mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hairui keyuan
-
Voltage:
-
220/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1500*1000*1200mm
-
Applicable Industries:
-
furniture workshop
-
Weight (KG):
-
480
-
Product Name:
-
wood mortising machine
-
Model:
-
MS3112
-
Motor Power:
-
2.2kw
-
Table size:
-
500*230mm
-
Spindle speed:
-
9000r/min
-
Maximum mortise depth:
-
60mm
-
Maximum mortise length:
-
120mm
-
Net weight:
-
480kg
-
Machine dimensions:
-
1500*1000*1200mm

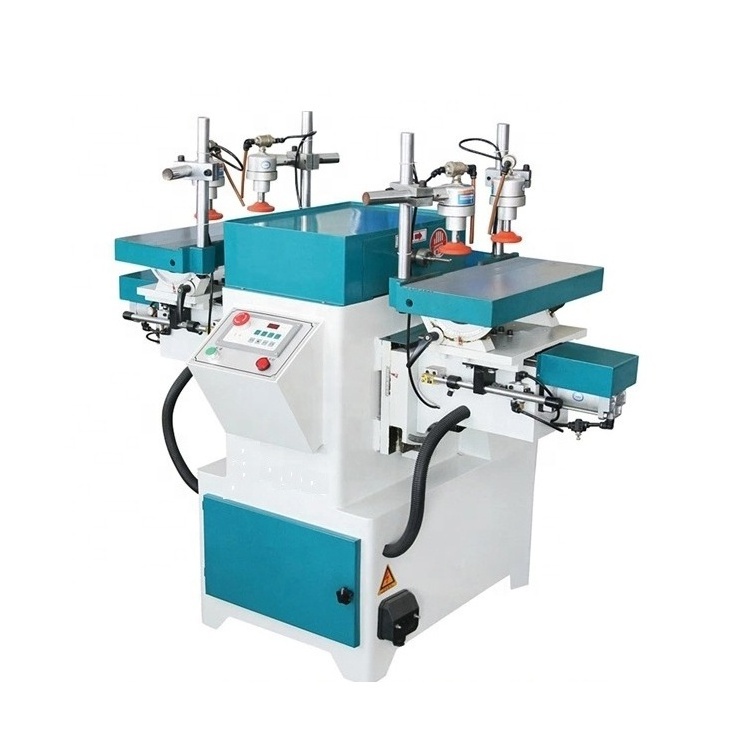

Products Description
Main Features
1
.
This machine is used for mortise processing of doors, tables, chairs and other products
2. The working width can be manually adjusted through the tenon width parameters of the digital display, making it easier to adjust the processing size and more accurate.
3. The spindle assembly slides along the cylindrical guide rail, and the weighing frequency is high to ensure the processing quality and efficiency.
4. Double worktops can be used for processing both sides at the same time, with double efficiency. At the same time, the worktops can be tilted at 30 degrees for processing inclined mortises.
Control panel
Easy to operate control panelto adjust the mortising width parameter, more accurate to process.
Double worktable
Double worktops can be pro-cessed on both sides at the same time, with double eficiency.
Table tiltable
The worktable can be inclined at 30 degrees for the processing of inclined mortise and tenon.
Cylinder pressing
The pressed parts do not damage the materials, and the product processing is stable and smooth.
Product Paramenters
|
name
|
|
Mortise machine
|
|
||
|
model
|
|
MS3112
|
|
||
|
Table size
|
|
500*230mm
|
|
||
|
Maximum mortise length
|
|
120mm
|
|
||
|
Maximum mortise depth
|
|
60mm
|
|
||
|
Lifting stroke of workbench
|
|
80mm
|
|
||
|
spindle speed
|
|
9000r/min
|
|
||
|
total power
|
|
2.2KW
|
|
||
|
weight
|
|
480kg
|
|
||
|
overall dimensions
|
|
1500*1000*1200mm
|
|
||
