Quick Details
-
Brand Name:
-
TR.LIGE
-
Model Number:
-
TQ-2210
-
Dimension (L x W x H):
-
700mm*516mm*290mm
-
Application:
-
performances/concert/party bars/music restaurants/auditoriums
-
Type:
-
Passive
-
Color:
-
Customizable
-
Material:
-
birch plywod/cutomizable
-
Function:
-
Voice
-
Channel:
-
2 way
-
Size:
-
2*10
-
Power Supply:
-
Other
-
Packing:
-
carton box/flight case/wooden shelf
-
Connector:
-
2x Speakon NL4MP
Quick Details
-
Power:
-
HF:140W RMS/280W Peak LF:1180W RMS /2360WPeak
-
Frequency Range (Hz):
-
68-18000Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TR.LIGE
-
Model Number:
-
TQ-2210
-
Dimension (L x W x H):
-
700mm*516mm*290mm
-
Application:
-
performances/concert/party bars/music restaurants/auditoriums
-
Type:
-
Passive
-
Color:
-
Customizable
-
Material:
-
birch plywod/cutomizable
-
Function:
-
Voice
-
Channel:
-
2 way
-
Size:
-
2*10
-
Power Supply:
-
Other
-
Packing:
-
carton box/flight case/wooden shelf
-
Connector:
-
2x Speakon NL4MP
|
Model：TQ-2210
|
TQ-2210
|
|
|
Drivers
|
HF:1×1.4"Voice-coil:3"
LF:2×10"Voice-coil:2.5" |
|
|
Frequency (-10dB)
|
68-18000Hz
|
|
|
Dispersion(-6dB)
|
horizontal:80°-100°/Splay angle setting:0°-12°(1°increment)
|
|
|
Sensitivity（1m/1W)
|
HF:103dB/LF:98dB
|
|
|
maximum SPL
|
125.7dB continuous/131.7dB Peak
|
|
|
Standard impedance
|
HF:8 Ohms/LF:8 Ohms
|
|
|
Rated Power
|
HF:140W RMS/280W Peak LF:1180W RMS /2360WPeak
|
|
|
Crossover Frequency
|
1200Hz
|
|
|
Connectors
|
2×Speakon NL4MP
|
|
|
Material
|
High-quality double-layer birch plywood box
|
|
|
Mesh surface
|
High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside.
|
|
|
Finish
|
Environmental protection water-based paint
|
|
|
Handing Position
|
Dedicated hoisting system
|
|
|
Dimensions(H×WxD)
|
290mm×700mm×516mm
|
|
|
Net Weight(Kg)
|
29.5
|
|
|
Cross weight(Kg)
|
32.7
|
|
1、
TQ-2210
linear array speaker adopts high-quality speaker unit, which is precisely calibrated by computer. Its phase and frequency response curves are extremely smooth. In addition, the whole box of TQ-2210 speaker is made of high-quality double-layer birch plywood, and the surface is coated with high-quality environmental protection water-based paints, with smooth lines, beautiful appearance and durability. The scientifically designed speaker is arm in arm and easy to carry. The speaker is designed with high technology. With high sound quality and high sound pressure. It can ensure that the original sound is stable in the high power state.
2、TQ-2210' s treble is clean and clear, its mid-frequency is vigorous and its bass is dynamic and full, which is powerful. Widely used in stadiums, music squares, churches, bars, theaters, concerts, concerts and other places.

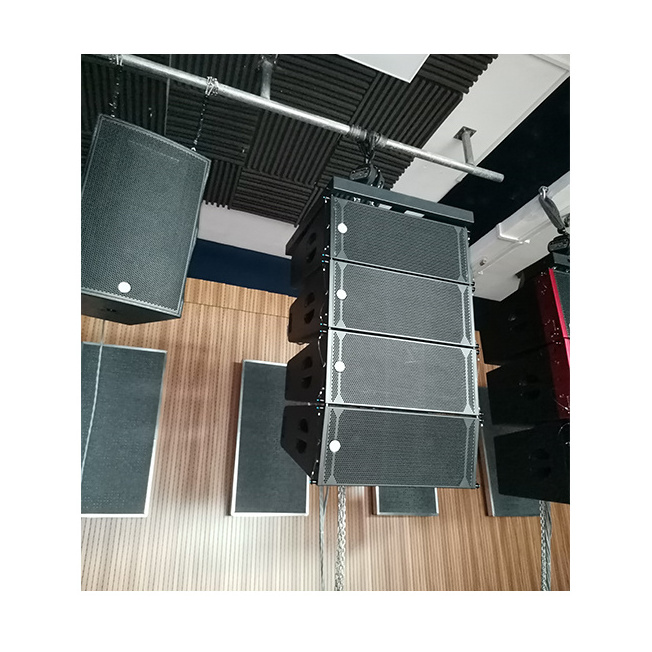

3、TQ-2210 uses hyperbolic reflected wave source technology, which can couple multiple speakers into a linear array system. It can also be used by a single speaker, and the cabinet can be combined horizontally or vertically. The speaker is equipped with a professionally designed hanging system, plug and play, and has a powerful output effect. The nominal sensitivity of TQ-2210 can reach 103dB SPL at 1W@1m, and the maximum sound pressure of a single box is 134dB. The sound pressure of the array module is determined by the number of speakers and the set angle.
T
R.LIGE professional audio brand was founded in 2013. It is a manufacturer integrating R&D,manufacturing, sales and engineering design services. lts products include: stage professional speakers, linear array speakers, KTV private room speakers, conference system products,Power amplifier and peripheral electronic products, etc.
Quality creates the future and restores the most authentic sound.
Professional casting quality, quality reaches the brand
TEL: 13535155768 WEB:
www.baonaaudio.com
Email:
trangrenlige@gmail
.com
Q1:What can you buy from us?
A1: Speaker,loundspeaker ,amplifier,surround,mircophone
Q2:Can I have a sample order for loudspeaker?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What about the lead time?
A3:Sample needs 7 days, mass production time needs 3-4 weeks for order quantity more than.
Q4:Is the shipping included in the product prices？
A4：NO,s
hipping is calculated separately.
Q5:
What's your payment methods?
A5: By T/T, L/C, paypal, Credit card transfer by ALIBABA trade assurance etc.
A5: By T/T, L/C, paypal, Credit card transfer by ALIBABA trade assurance etc.
Q6:Do you provide OEM and ODM service?
A6:Yes, we have OEM and ODM project experience.
A6:Yes, we have OEM and ODM project experience.
