Quick Details
-
Brand Name:
-
HOWO
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
China
-
Engine power:
-
371hp
-
Driving type:
-
6x4
-
Driving Side:
-
Left Hand & Right Hand
-
Application:
-
Mining
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro II
-
Gross Vehicle Weight:
-
75000
-
Brand Name:
-
HOWO
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
China
-
Engine power:
-
371hp
-
Driving type:
-
6x4
-
Driving Side:
-
Left Hand & Right Hand
-
Application:
-
Mining

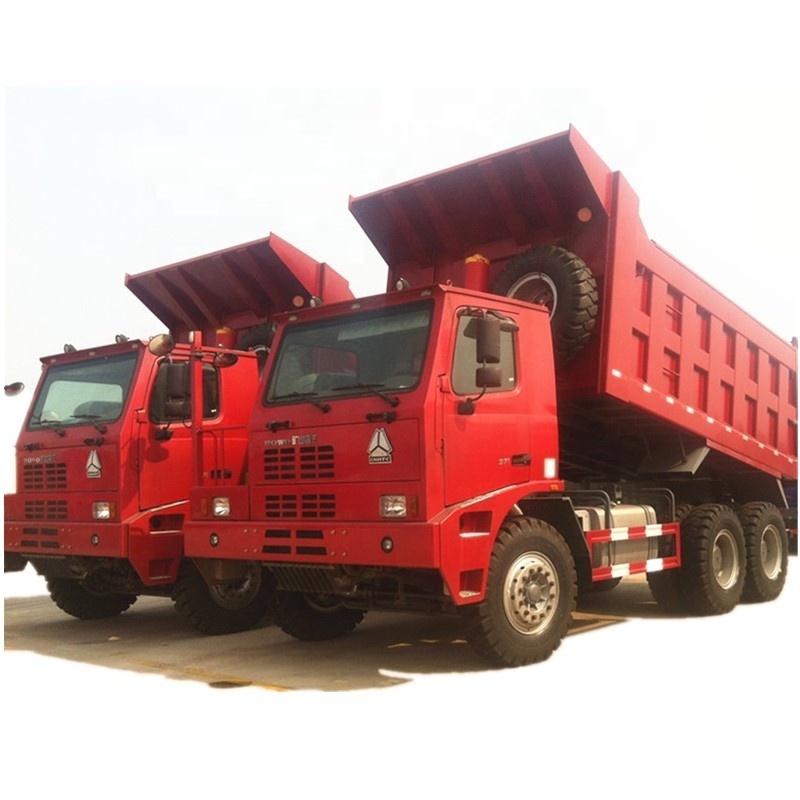

SINOTRUK HOWO 6X4 371HP 70T OFF-ROAD MINING KING DUMP TRUCK WITH REAR GATE ZZ5707S3840AJ
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
|
Weight |
Chassis weight(kg) |
17300 |
|
Dead weight(kg) |
29300 |
|
|
Max. Theoretical Loading Weight(kg) |
50000 |
|
|
Max. Theoretical G.V.W(kg) |
75000 |
|
|
Performance |
Min. Turning Diameter(m) |
22 |
|
Max. Speed(km/h) |
50(57) |
|
|
Fuel Tank Capacity(L) |
500 |
|
|
Chassis frame |
Type |
strengthened adequate ladder type frame |
|
Main beam cross-section |
380*120*10(mm) |
|
|
Auxiliary beam cross-section |
355*110*10(mm) |
|
|
Transmission |
Model |
HW19710 |
|
Forward Ratio |
14.28 10.62 7.87 5.87 4.375 3.26 2.43 1.8 1.34 1 |
|
|
Reverse Ratio |
13.91 3.18 |
|
|
Wheel alignment |
Front-wheel camber |
1° |
|
kingpin inclination(Inward) |
5° |
|
|
kingpin inclination(Rear) |
3°7 ′ |
|
|
Driving axle |
Model |
Central reduction with hub reduction |
|
Ratio |
10.47 Option: 8.51 |
|
|
Differential Locks |
Exist between wheels and axles |
|
|
Body(Tilting End) |
Dimension(L*W*H mm) |
5800*3100*1500 |
|
Thickness(Floor*Side mm) |
16*12 |
|
|
Hoist System |
HYVA 196 |
|
|
Dimension |
Overall dimension(mm) |
8600*3300*4000 |
|
Wheelbase(mm) |
3800+1500 |
|
|
Front/Rear overhang(mm) |
1500/1800 |
|
|
Front/Rear wheel track(mm) |
2750/2520 |
|
|
Min. ground clearance(mm) |
340 |
|
|
Approach/Departure angle(°) |
30/40 |
|
|
Engine |
Model |
WD615.47 |
|
Displacement(L) |
9.726 |
|
|
Rated power hp (r/min) |
371/2200 |
|
|
Max. torque Nm(r/min) |
1500/1100~1600 |
|
|
Cabin |
Type |
HW7D |
|
Nos of passengers |
1 person |
|
|
Clutch |
Φ430(mm),1900mm |
|
|
Steering |
Model |
ZF8118 |
|
Brake |
Service brake |
Dual circuit compressed air brake |
|
Parking brake (emergency brake) |
Spring energy, compressed air operating |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Others |
Brake heat sink |
|
|
Electrics |
Operating voltage |
24 V, negative grounded |
|
Alternator |
1500w |
|
|
Battery voltage/capacitance(V/Ah) |
12/180 |
|
|
Tire |
Model |
14.00-25(14.00R25 for option) |
