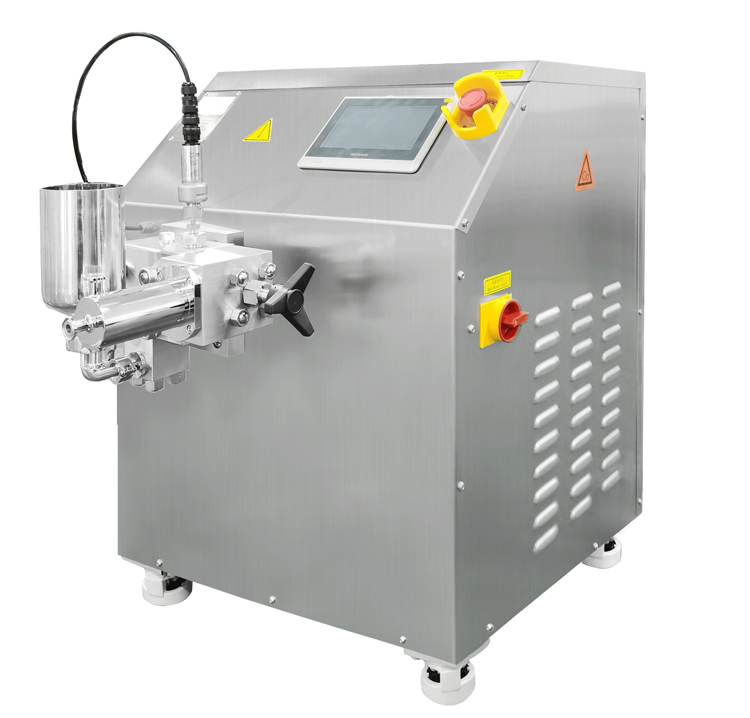

Automatic milk juice drink tissue homogenizer dairy milk high pressure homogenizer

Automatic milk juice drink tissue homogenizer dairy milk high pressure homogenizer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20000

≥10 Pieces

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Yocell

Voltage:: 220v

Dimension(L*W*H):: Customized

Power (kW):: 2.2 kW

Applicable Industries:: Cell disruption, Emulsion preparation, Liposome

Marketing Type:: Hot Product 2023

Flow rate:: 10-30L/h

Design pressure:: 1000-2000bar

Pressure gauge:: 0~2000bar digital display, accuracy 1bar

Minimum throughput:: 15-50mL

Material consumption:: 0mL(no residue)

Feed pellet size:: <500μm

Product process viscosity:: < 2000cPs

Quick Details

Barrel Volume (L):: 2000

Max. Loading Volume (L):: 2000 L

Weight (KG):: 50 KG

Place of Origin:: Shandong, China

Brand Name:: Yocell

Voltage:: 220v

Dimension(L*W*H):: Customized

Power (kW):: 2.2 kW

Applicable Industries:: Cell disruption, Emulsion preparation, Liposome

Marketing Type:: Hot Product 2023

Flow rate:: 10-30L/h

Design pressure:: 1000-2000bar

Pressure gauge:: 0~2000bar digital display, accuracy 1bar

Minimum throughput:: 15-50mL

Material consumption:: 0mL(no residue)

Feed pellet size:: <500μm

Product process viscosity:: < 2000cPs

Products Description

Features：

1.Automated operation —Automatic sample injection, continuous operation, no venting required. 2.Equipment material —Adopt 316L stainless steel with high hygienic level, high-temperature resistant, wear-resistant and anti-corrosion. —The core components are made of special ceramics, which are durable and have a long service life. 3.Temperature controllable —The inlet and outlet of the cooling joint are connected to the constant temperature bath, which effectively controls the temperature rise of the homogeneous material. 4.Triple overvoltage safety protection system: —Equipped with BOS inverter for overload start protection. —Equipment adopts Italian GEFRAN, when pressure exceeds 10% of sensor range value, the sensor will sends the signal of the unit, and then the machine stops for self-protection. —Equipped with safety valve for pressure relief system.

Product Paramenters

Model	YC-NANO 10	YC-BASIC15	YC-BASIC30
Material	316L stainless steel The core components are made of special ceramics
Flow rate	10L/h	8~15h/L	20-30L/h
Design pressure	2000bar	1500bar	1000bar
Pressure gauge	0~2000bar digital display, accuracy 1bar
Minimum throughput	15mL	25mL	50mL
Material consumption	0mL（no residue）
Feed pellet size	＜500μm
Product process viscosity	< 2000cPs
Power	1.5kW, 220V/50Hz	1.5kW, 220V/50Hz	2.2kW, 380V/50Hz
