Quick Details
-
Travel (W-axis) (mm):
-
200 mm
-
Range of Spindle Speed(r.p.m):
-
2000 r.p.m
-
Production Capacity:
-
50 Sets / Month
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BLUESTAR
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1860x1150x2200 mm
-
Weight (T):
-
2 T
-
Certification:
-
ISO9001
Quick Details
-
Table Travel (X) (mm):
-
1000 mm
-
Table Travel (Y) (mm):
-
600 mm
-
Table Travel (Z) (mm):
-
160 mm
-
Travel (W-axis) (mm):
-
200 mm
-
Range of Spindle Speed(r.p.m):
-
2000 r.p.m
-
Production Capacity:
-
50 Sets / Month
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BLUESTAR
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1860x1150x2200 mm
-
Weight (T):
-
2 T
-
Certification:
-
ISO9001

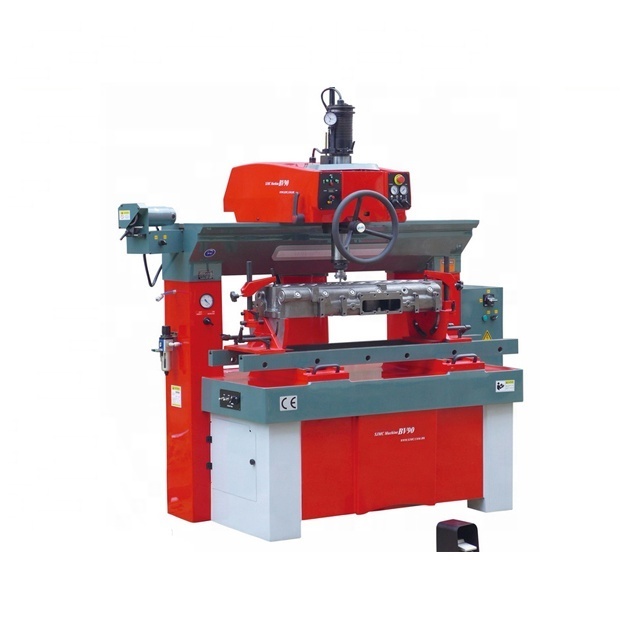

Valve seats boring machine Valve seats cutting machine DBS-BV120
Features :
Heavy – duty Valve Seat Boring Machine Model: DBS-BV120 , this machine makes use of special steel and spheroidal graphite cast iron , its body are special heat treated , the rigidity , stability much improved along with the working life. It is equipped with one heavy duty spindle , rated power is 2.5 kW , outside diameter is Φ 90 mm , maximum torque is 42 N.M. . Moreover , the triple air-float patented work head , and the air floating table , and other…… Thanks to that , it is really easy to operate , although this is a heavy machine. Designed for the valve seats from the smallest to the bigger diameter. This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 18mm to 120 mm. To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Main Specifications
|
Model |
DBS-BV120 |
|
Type of Drive System |
Air / Electric |
|
Max. Length of Cylinder Head |
unlimited |
|
Max. Width of Cylinder Head |
500 mm |
|
Max. Height of Cylinder Head |
450 mm |
|
Max. Boring Dia. |
18 – 120 mm |
|
Work Head Longitudinal Floating Travel |
990 mm |
|
( with optional parking area : 450 mm ) |
1440 mm |
|
Work Head Cross Floating Travel |
40 mm |
|
Sphere – Cylinder Travel |
9 mm |
|
Floating inclination angle of Spindle |
5 ° |
|
Table Travel |
160 mm |
|
Vertical Travel of Spindle |
200 mm |
|
Power of Spindle |
2.5 kW Spindle Motor |
|
Max. Torque of Spindle Motor |
42 Nm |
|
Spindle Speed |
100 – 800 rpm stepless |
|
Power of Tools Grinder |
0.27 kW |
|
Tools Grinder Rotation Speed |
2800 rpm |
|
Clamper Rotary Angle |
+ 42 ° / -15 ° |
|
Required Rated Air Pressure |
6 Bar / 85 PSI |
|
Required Max. Air Flow |
400 L / Min |
|
Required Continuous Air Flow |
60 L / Min |
|
Length of Machine |
1685 mm |
|
Width of Machine |
1050 mm |
|
Max. Height of Machine |
2180 mm |
|
Min. Height of Machine |
1980 mm |
|
Roughness of Finishing |
Ra 0.6 |
|
Package Size ( L × D × H ) |
1860 × 1150 × 2200 mm |
|
N.W. |
1700 Kg |
|
G.W. |
2000 Kg |
