Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Abena
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
6500*1300*1300mm
-
Weight:
-
4500 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
new product 2022
-
Product name:
-
genteng metal roof sheet glazed tiles roll forming machine
-
Raw material:
-
Steel Coil GI PPGI
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
High Grade No.45 Steel
-
Control system:
-
PLC(detla) System
-
Certification:
-
CE ISO
-
Main frame:
-
Steel Plate Welded
-
Roller stations:
-
12Stations
-
Decoiler:
-
5T Manual Decoiler
-
Roller material:
-
High Grade 45# Steel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
10-15M/MIN
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Abena
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
6500*1300*1300mm
-
Weight:
-
4500 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
new product 2022
-
Product name:
-
genteng metal roof sheet glazed tiles roll forming machine
-
Raw material:
-
Steel Coil GI PPGI
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
High Grade No.45 Steel
-
Control system:
-
PLC(detla) System
-
Certification:
-
CE ISO
-
Main frame:
-
Steel Plate Welded
-
Roller stations:
-
12Stations
-
Decoiler:
-
5T Manual Decoiler
-
Roller material:
-
High Grade 45# Steel
Product Overview
Our company are professional product the
roof r
oll forming machine
manufacture , We manufacture and supply variants of cold roll forming machines in China, such as trapezoidal roofing sheet roll forming machine ,corrugated roofing roll forming machine ,glazed tile roll forming machine and double layer roofing sheet roll forming machine ,ridge cap roll forming machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the color steel roof roll forming machine raw material thickness 0.3mm-0.8mm, we also can make other metal roofing sheet roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first

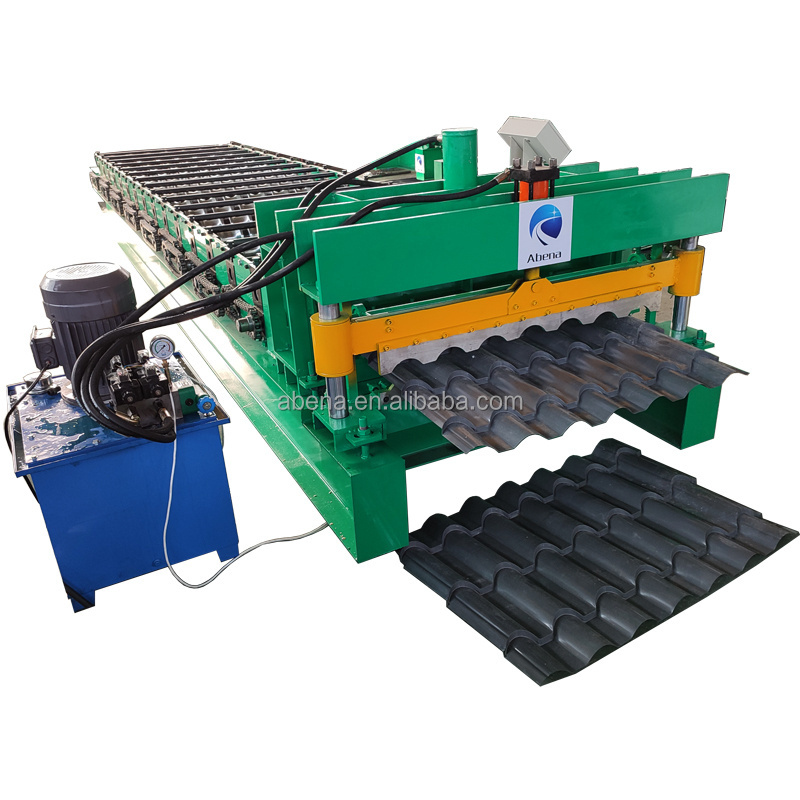

Genteng metal roof sheet glazed tiles roll forming machine glazed tile IBR sheet making machine
PRODUCT SPECIFICATIONS
|
No
|
TYPE
|
Data
|
SPECIFICATION
|
|
||
|
1
|
Raw material
|
material
|
PPGI GI
|
|
||
|
2
|
Bucket capacity
|
Feeding width
|
as drawing
|
|
||
|
3
|
Operating weight
|
thickness
|
0.3-0.8mm
|
|
||
|
2
|
Decoiler
|
operate
|
manual
|
|
||
|
5
|
Max. breakout force
|
weight capacity
|
5ton
|
|
||
|
3
|
Roll forming machine
|
roller station
|
12
|
|
||
|
|
|
Diameter of shaft
|
80mm
|
|
||
|
|
|
Roller material
|
45# with 0.05mm chrome
|
|
||
|
|
|
Frame
|
steel sheet welding
|
|
||
|
|
|
Frame thickness
|
18mm
|
|
||
|
|
|
Cutting Material
|
Cr 12
|
|
||
|
|
|
Operation
|
automatic cutting
|
|
||
|
|
|
Working speed
|
15-20m/minute
|
|
||
|
|
Power
|
Driving way
|
chain
|
|
||
|
|
|
Main motor
|
5.5kw
|
|
||
|
|
|
Voltage
|
380v 50hz
|
|
||
|
|
|
Electric box
|
PLC control system, inventer
|
|
||
|
|
|
PLC brand
|
delta
|
|
||
|
|
|
Inverter brand
|
delta
|
|
||
|
|
|
Language
|
chinese and english
|
|
||
Feature of the glazed tile roof machine
The components of the
glazed tile
roof roll forming machine
include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.
Equipment features: glazed tile roof roll forming machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Equipment features: glazed tile roof roll forming machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Detail image
Decoiler
Loading capacity: 5tons
Hydraulic cutting
Controlled by oil pump
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Roll forming body
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
computer control system
Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
Pump station
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
