Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Speedy Laser
-
Marking Head Brand:
-
Galvo Scanner
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser Source
-
Product name:
-
Buy makers mark wholesale auto focus fiber laser marking machine
-
Laser source:
-
fiber laser source
-
Laser Power:
-
30W / 50W / 60W
-
Sample service:
-
Acceptable
-
Keywords:
-
buy makers mark wholesale
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Software:
-
JCZ EZCAD
-
Laser source life:
-
80000 hours
-
Package:
-
Standard wooden case
Quick Details
-
Working Accuracy:
-
0.02mm
-
Graphic Format Supported:
-
PLT, DXF
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Speedy Laser
-
Marking Head Brand:
-
Galvo Scanner
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser Source
-
Product name:
-
Buy makers mark wholesale auto focus fiber laser marking machine
-
Laser source:
-
fiber laser source
-
Laser Power:
-
30W / 50W / 60W
-
Sample service:
-
Acceptable
-
Keywords:
-
buy makers mark wholesale
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Software:
-
JCZ EZCAD
-
Laser source life:
-
80000 hours
-
Package:
-
Standard wooden case

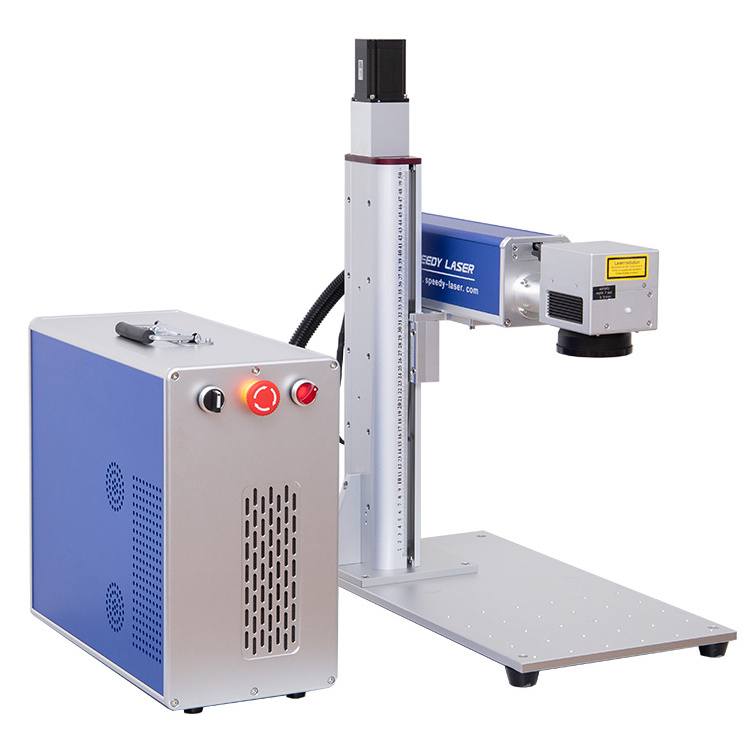

Buy makers mark wholesale auto focus fiber laser marking machine 30W 50W 60W Racycus/JPT/IPG laser engrave machine for metal
Description:
Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.
Our laser marking machine adopts the best quality fiber laser source in the world. We have 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.
Applicable Material:
All metal , some non-metal material marking such as nylon, ABS, PVC, PES.
Applicable IndustryElectronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons.
| Item Name | Technical Parameter | ||
| Model | SL-FE 30W | SL-FE 50W | SL-FE 60W |
| Laser power | 30W | 50W | 60W |
| Laser wavelength | 1064nm | ||
| Laser type | Raycus/JPT/IPG/MAX fiber laser | ||
| Beam diameter | 7mm±1 | ||
| Marking depth | 0.01-1mm | ||
| Marking area | 110×110mm/175×175/200×200mm | ||
| Operating voltage | 110V- 240V/50-60 Hz/15A | ||
| Cooling | Air Cooling | ||
| Packing size | 88*42*80 cm (L*W*H) | ||
| Gross weight | 62 KG | ||
| Package | Standard export wooden case | ||
