Quick Details
-
Brand Name:
-
CJSE LPG Gas Skid Station
-
Dimension(L*W*H):
-
DN2000 x 5650 x 12/12mm
-
Capacity:
-
20000L lpg gas filling station
-
Weight:
-
2760
-
Inner Material:
-
Q345R carbon steel
-
Outer Material:
-
Q345R carbon steel
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
ASME/GB150 lpg gas skid station
-
Working Temperature(℃):
-
-19 - 50 ℃
-
Product name:
-
20m3 lpg skid filling station 10ton mobile lpg gas filling station
-
LPG Tank Working Pressure:
-
1.63MPa
-
LPG Tank Color:
-
netural grey or silver
-
Capacity Available for tank:
-
5m3 to 50m3 lpg gas filling plant
-
Processing for LPG Tank:
-
heat treatment/shot blast/X-ray detection
-
LPG Tank Applications:
-
for lpg storage
-
Certification:
-
ISO9001 ISO14001 ASME
-
Key words:
-
LPG filling station gas Filling station, lpg skid plant
-
LPG Tank Type model:
-
Ground LPG Storage Tank
-
Package:
-
Nude for lpg gas skid station
Quick Details
-
Volume (m³):
-
20cbm lpg gas filling plant
-
Max Working Pressure(MPa):
-
1.82 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CJSE LPG Gas Skid Station
-
Dimension(L*W*H):
-
DN2000 x 5650 x 12/12mm
-
Capacity:
-
20000L lpg gas filling station
-
Weight:
-
2760
-
Inner Material:
-
Q345R carbon steel
-
Outer Material:
-
Q345R carbon steel
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
ASME/GB150 lpg gas skid station
-
Working Temperature(℃):
-
-19 - 50 ℃
-
Product name:
-
20m3 lpg skid filling station 10ton mobile lpg gas filling station
-
LPG Tank Working Pressure:
-
1.63MPa
-
LPG Tank Color:
-
netural grey or silver
-
Capacity Available for tank:
-
5m3 to 50m3 lpg gas filling plant
-
Processing for LPG Tank:
-
heat treatment/shot blast/X-ray detection
-
LPG Tank Applications:
-
for lpg storage
-
Certification:
-
ISO9001 ISO14001 ASME
-
Key words:
-
LPG filling station gas Filling station, lpg skid plant
-
LPG Tank Type model:
-
Ground LPG Storage Tank
-
Package:
-
Nude for lpg gas skid station
Our product Advantages

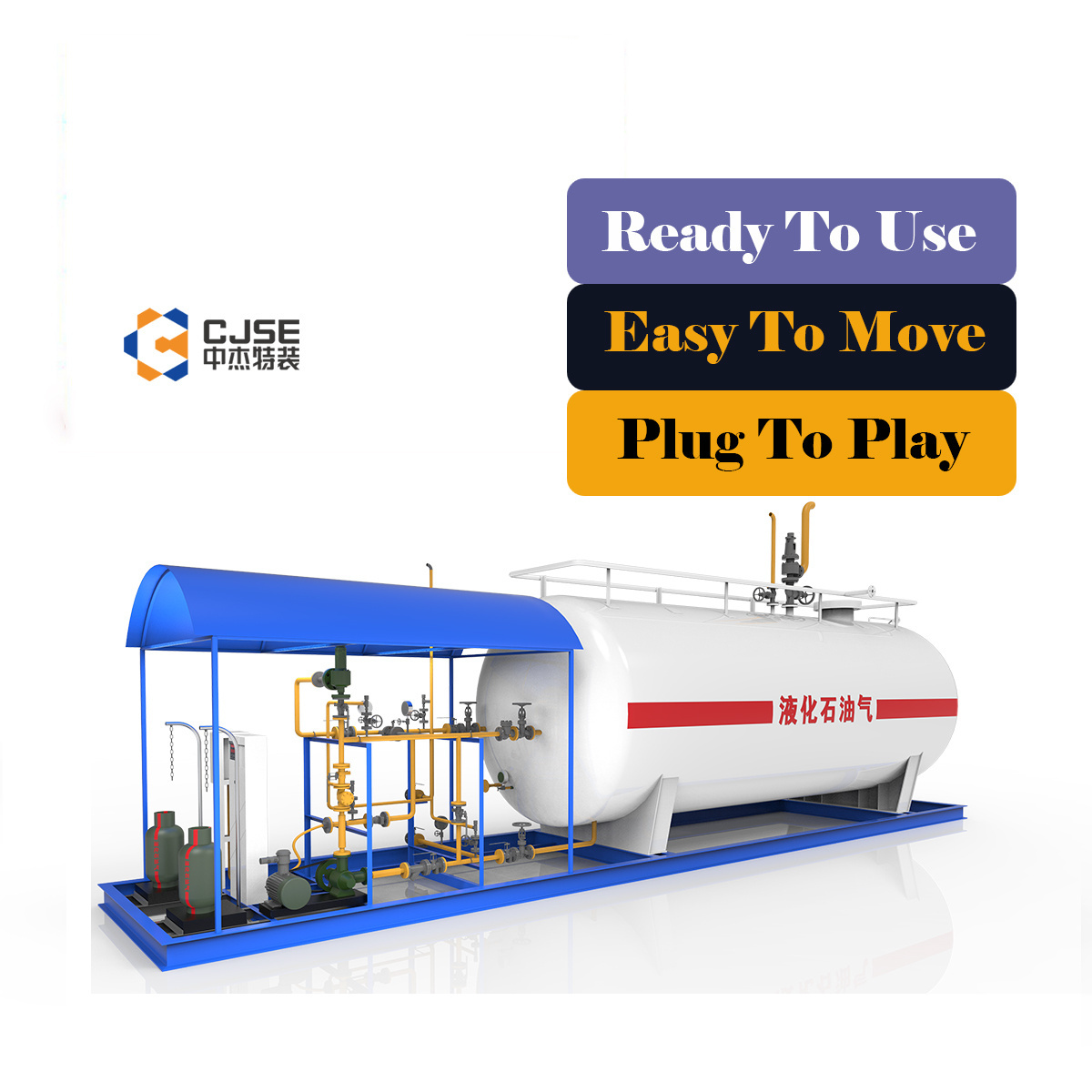

LPG SKID STATION
- One-piece Design -
✔ C ost Effective
No on-site installation, all components will be
assembled well in factory, reduce the workload of on-site construction and shorten the construction period.
Can be transported in containers, reduce transportation costs.
✔ Safety Devices
In addition to the basic functions of unloading
and vehicles & cylinders filling, our lpg skid station also adds advanced functions such as discharging residue, transferring the
liquid into another tank, filling tanker, safety relief, leakage alarm, and electric control operation.
✔ Plug To Play
After receiving the skid station, you just connect to the power supply to run the equipment.
✔ Convenient Mobility
It can be relocated to another location at any time after finishing work in one location, and is a very convenient portable gas supply point.
✔ Small Land Occupation
A 5m
3
skid station covers an area of only 12 square meters. Suitable for complex terrain.
The welding seam appearance is uniform
The transition between weld bead and weld bead, the weld bead between base metal is smooth.
There's cracks, pores and slags which can bring hidden danger on the welding seam surface.
Specification
|
|
Data
|
|
LPG storage tank capacity
|
5-200 cbm (2.5-100 ton)
|
|
Design Pressure
|
1.77Mpa
|
|
Working Pressure
|
1.63Mpa
|
|
Working Temperature
|
-19~50℃
|
|
Design Temperature
|
-20~54℃
|
|
Main Material
|
Q345R
|
|
Filling ratio
|
0.9
|
|
Density
|
560 kg/m3
|
|
Design Service Life
|
20 Years
|
|
PWHT
|
Whole
|
