1. 100% Oil-free Lubrication, the gas is clean, high purity, and non-polluting.
2. High efficiency and low energy consumption.
3. Fully balanced design, low vibration.
4. High reliability, continuous operations
5. No special basic requirements, easy to install for use and maintenance.
6. Air-cooled or water-cooled can be chosen, to reduce installation cost.
7. Compact structure, low operating and maintenance cost.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/415V/440V/600V/660V,etc
-
Dimension(L*W*H):
-
1300*1020*900mm
-
Weight:
-
550kg
-
Air capacity:
-
20Nm3/h
-
Product Name:
-
SF6 gas Recovery Compressor
-
Model:
-
WWZ-30/6-45
-
Compressed medium:
-
SF6 gas O2 gas N2 gas
-
F.A.D (Nm3/min):
-
30Nm3/h
-
Power (KW):
-
7.5KW
-
Inlet Pressure:
-
6barg
-
Exhaust Pressure:
-
45barg
-
Cooling method:
-
Air cooled
-
Usage:
-
for Petroleum, Chemical textile, Gas Separation
-
Drive Mode:
-
belt Drive
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Keepwin
-
Model Number:
-
ZWZ-5/1.5-10, VWZ-10/1.5-10, VWZ-15/1.5-10, WWZ-20/1.5-10, WWZ-25/1.5-10, WWZ-0.047/7-220, ZWZ-5/4-14, WWZ-20/4-200, WWZ-50/4-200, WWZ-30/4-150, VWZ-20/4-14, VWZ-30/4-14, WWZ-50/4-14
-
Voltage:
-
380V/415V/440V/600V/660V,etc
-
Dimension(L*W*H):
-
1300*1020*900mm
-
Weight:
-
550kg
-
Air capacity:
-
20Nm3/h
-
Product Name:
-
SF6 gas Recovery Compressor
-
Model:
-
WWZ-30/6-45
-
Compressed medium:
-
SF6 gas O2 gas N2 gas
-
F.A.D (Nm3/min):
-
30Nm3/h
-
Power (KW):
-
7.5KW
-
Inlet Pressure:
-
6barg
-
Exhaust Pressure:
-
45barg
-
Cooling method:
-
Air cooled
-
Usage:
-
for Petroleum, Chemical textile, Gas Separation
-
Drive Mode:
-
belt Drive
Product Introduction
High Pressure SF6 Gas Booster Compressor Methane Compressor Sulfur hexafluoride SF6 gas Recovery Compressor
This compressor is generally suitable for oxygen pressurization and recovery occasions such as filling and inverting bottles under
the working conditions of rated inlet pressure 0.4Mpa (there configured a pressure reducing valve once the suction pressure over
high pressure then it should be reduced down to 0.4Mpa by manual) and a rated exhaust pressure of 20Mpa . If the compressor is
used under special working conditions where the inlet pressure is lower than 0.4Mpa and the exhaust pressure is higher than 20Mpa,
it is necessary to communicate with our company's technicians before production and use.
Portable industrial silent oil free piston compressor for sale
>>>Description of Advantages of Oil-free Piston Compressor
1) Totally 100% oil free type gas compressor, cylinder no need oil lubrication, ensure cylinder 100% no oil content.
2)
Suitable compressing for SF6 gas, Oxygen gas, Hydrogen gas, Nitrogen gas, Helium gas, Argon gas, CO2 gas, Air gas, Biogas, Methane gas and other special gas
3) No pollution, keep same purity to inlet gas
4) Reliable and top quality, comparable with USA RIX brand.
5) Top cost performance, low maintenance cost, and easy operation, only need to change piston ring
6) 4000 hours piston ring working life,1500-2000 hours working life for final stage ring
7) Top brand motor, and can be specially pointed, like Simense brand
8) Supply Japan market, quality approval by Japan strictly system
9) CE approval
10) The gas compressor carefully designed and manufactured for 2Mpa, 4Mpa,10Mpa, 15Mpa, 20MPa-30MPa pressure etc.
11) The device has a small size, lightweight, easy maintenance, and friendly at moving and operating.
12) Output gas non-toxic, odorless. Suitable for filling high-pressure air displacement and small and medium-sized gas station
Advantage of SF6 Sulfur Hexafluoride Compressor

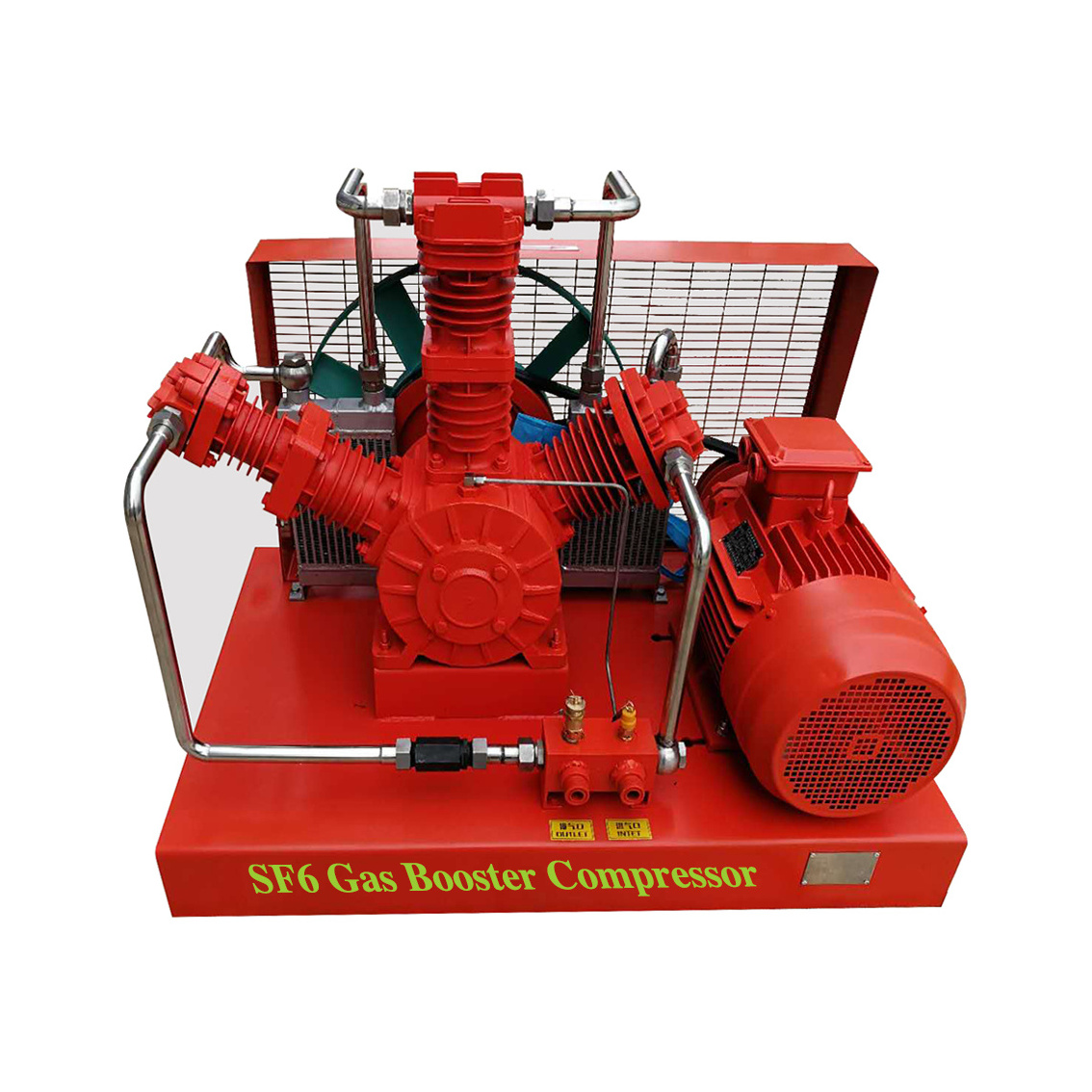

SF6 Sulfur Hexafluoride Compressor Features:
SF6 gas booster compressor was designed 100% oil-free. Its guide ring, piston ring using self-lubricating materials, bearing parts using high-temperature grease lubrication, to avoid the compression process of gas pollution, ensure the purity of gas no any contacts.
Its shaft head seal is sealed by rotating magnetic fluid seal. Highly Effective prevent the leakage of sulfur hexafluoride gas,
reduce gas loss, ensure the safety and health of operators, and avoid environmental pollution caused by toxic substances.
Its shaft head seal is sealed by rotating magnetic fluid seal. Highly Effective prevent the leakage of sulfur hexafluoride gas,
reduce gas loss, ensure the safety and health of operators, and avoid environmental pollution caused by toxic substances.
Application of SF6 Gas Compressor (Sulfur Hexafluoride Compressor):
This series compressor is suitable for recovering sulfur hexafluoride gas.
Suction pressure: can be minus pressure from -0.05Mpag to -.6Mpa(G) (-0.05) ~ 0.6Mpa (G),
This series compressor is suitable for recovering sulfur hexafluoride gas.
Suction pressure: can be minus pressure from -0.05Mpag to -.6Mpa(G) (-0.05) ~ 0.6Mpa (G),
Discharge pressure: can reach to 5.0Mpa(G)
SF6 gas can be highly efficient recycling by Keepwin SF6 recycling booster compressor.
And it also mainly used in the repair and maintenance of SF6 circuit breakers, recycling SR Gas in the circuit breaker.
SF6 gas can be highly efficient recycling by Keepwin SF6 recycling booster compressor.
And it also mainly used in the repair and maintenance of SF6 circuit breakers, recycling SR Gas in the circuit breaker.
|
Model
|
Flow Rate Nm3/h
|
Inlet Pressure
MPa
|
Discharge Pressure Mpa
|
Rated Power
KW
|
Inlet & Outlet Port dia
|
Dimension
（L*W*H）mm
|
|
VWZ-10/6-45
|
10
|
0.6
|
4.5
|
4
|
M36*2
|
1000*600*750
|
|
VWZ-20/6-45
|
20
|
0.6
|
4.5
|
5.5
|
M36*2
|
1000*600*750
|
|
WWZ-30/6-45
|
30
|
0.6
|
4.5
|
7.5
|
M36*2
|
1100*640*870
|
|
WWZ-40/6-45
|
40
|
0.6
|
4.5
|
11
|
M36*2
|
1200*700*870
|
|
WWZ-60/6-45
|
60
|
0.6
|
4.5
|
15
|
M36*2
|
1200*730*870
|
|
WWZ-80/6-45
|
80
|
0.6
|
4.5
|
18.5
|
M36*2
|
1300*760*870
|
The advantages & usages of sulfur hexafluoride gas
1. As a refrigerant in the refrigeration industry, the refrigeration range can be between -45°C and 0°C.
2.
It is used as a desorbent in the mining industry to replace oxygen in coal dust in mines.
3.
Standard gas, leak detection gas, carrier gas of chromatograph.
4. The electrical industry uses its high dielectric strength and good arc extinguishing performance as an insulating material for high-voltage switches, large-capacity transformers, high-voltage cables and gases. Sulfur hexafluoride is widely used in the electrical industry for its good insulating properties and arc extinguishing properties, such as circuit breakers, high-voltage switches, high-voltage transformers, gas-enclosed combined capacitors, high-voltage transmission lines, transformers, etc. Gas insulators for electronic equipment, radar waveguides, particle accelerators, transformers, arresters, etc.
5. Play role as a tracer. Because sulfur hexafluoride is highly sensitive, non-toxic, stable in performance, reliable in inspection methods, and has very little content in nature, it is often used as a tracer in the environmental protection industry. For air pollution monitoring and hydrogeological research. As a widely used tracer for the determination of air pollution, sulfur hexafluoride has a tracer distance of up to 100kms.
6. Electronic grade sulfur hexafluoride (SF6) is suitable for cleaning and etching processes in TFT-LCD panel factories and
semiconductor factories and can be used as a single-film fiber isolation layer dopant in the manufacturing process of optical fibers. Electronic grade high-purity sulfur hexafluoride is an ideal electronic etchant and is widely used in the field of microelectronics technology.
7. SF6 is also widely used in metal smelting (such as magnesium alloy melting furnace protective gas), aerospace, medical (X-ray machine, laser machine), meteorology ( Tracer analysis), chemical industry (advanced car tires, new fire extinguishers), etc. In the smelting and casting process of non-ferrous metals, sulfur hexafluoride can prevent the oxidation of magnesium and its alloy melts, and can also be used for degassing and purification of aluminum and its alloy melts.
8. In the pharmaceutical industry, the most advanced contrast agent ultrasound method CnTI currently uses sulfur hexafluoride as the contrast agent. The other name called SonoVue (SonoVue), can diagnose, and is said to increase the screw pressure, so as to provide full power independent of diving depth.
9. Inflate pure gaseous sulfur hexafluoride into the finished sports ball inner tube to reach a usable air pressure. The inner
tube pressure of the sports ball will remain stable for a long time. The sports ball can be used for a long time without the need for a second inflation to supplement the air pressure.
6. Electronic grade sulfur hexafluoride (SF6) is suitable for cleaning and etching processes in TFT-LCD panel factories and
semiconductor factories and can be used as a single-film fiber isolation layer dopant in the manufacturing process of optical fibers. Electronic grade high-purity sulfur hexafluoride is an ideal electronic etchant and is widely used in the field of microelectronics technology.
7. SF6 is also widely used in metal smelting (such as magnesium alloy melting furnace protective gas), aerospace, medical (X-ray machine, laser machine), meteorology ( Tracer analysis), chemical industry (advanced car tires, new fire extinguishers), etc. In the smelting and casting process of non-ferrous metals, sulfur hexafluoride can prevent the oxidation of magnesium and its alloy melts, and can also be used for degassing and purification of aluminum and its alloy melts.
8. In the pharmaceutical industry, the most advanced contrast agent ultrasound method CnTI currently uses sulfur hexafluoride as the contrast agent. The other name called SonoVue (SonoVue), can diagnose, and is said to increase the screw pressure, so as to provide full power independent of diving depth.
9. Inflate pure gaseous sulfur hexafluoride into the finished sports ball inner tube to reach a usable air pressure. The inner
tube pressure of the sports ball will remain stable for a long time. The sports ball can be used for a long time without the need for a second inflation to supplement the air pressure.
Product Details Show
A Special Process Gas Compressor Order Process & Production process
>>>Features of piston oxygen /helium/ hydrogen/ nitrogen gas booster compressor
1) Well-designed specifically for small and medium-sized users;
2) The operation is simple, convenient, and less prone to failure;
3) Guarantee inflatable gas pure health, no the oil tasteless displacement, high-pressure air filling quickly;
4) Practices can be achieved without power, and to facilitate the fieldwork;
5) Small size, lightweight, easy to move quickly;
6) Cost-effective, economical and practical.
>>Application of High pressure Piston compressor
1) Filling station can be used for fire brigade divers base inflatable station,
2) mine, oil field chemicals, ship, climbing, water sports center industry for human rescue,
3) fire fighting, rescue, underwater operations breathing gas filling is ideal in rescue equipment.
>>>Specifications of Piston Air Compressor
Compressor Pump
1. Air capacity: 6.5- 40.7c.f.m/min
2. working pressure: 15bar / 20bar / 30bar/ 40bar / 150bar/ 200bar/ 250bar
3. Power:1.1-7.5kw
1) Well-designed specifically for small and medium-sized users;
2) The operation is simple, convenient, and less prone to failure;
3) Guarantee inflatable gas pure health, no the oil tasteless displacement, high-pressure air filling quickly;
4) Practices can be achieved without power, and to facilitate the fieldwork;
5) Small size, lightweight, easy to move quickly;
6) Cost-effective, economical and practical.
>>Application of High pressure Piston compressor
1) Filling station can be used for fire brigade divers base inflatable station,
2) mine, oil field chemicals, ship, climbing, water sports center industry for human rescue,
3) fire fighting, rescue, underwater operations breathing gas filling is ideal in rescue equipment.
>>>Specifications of Piston Air Compressor
Compressor Pump
1. Air capacity: 6.5- 40.7c.f.m/min
2. working pressure: 15bar / 20bar / 30bar/ 40bar / 150bar/ 200bar/ 250bar
3. Power:1.1-7.5kw
Product Parameters
|
Product Name
|
100% Oil-Free Piston Gas Booster Compressor for home use hospital use
|
|
|
||
|
Compress Medium
|
Oxygen gas
|
|
|
||
|
Model No.
|
ZWZ-5/1.5-10
|
|
|
||
|
Type
|
Oil free Piston compressor( can customize only 3stages to reach 150bar/200bar)
|
|
|
||
|
Rated flow rate (F.A.D)
|
5Nm3/h
|
|
|
||
|
Power
|
1.5KW
|
|
|
||
|
Suction pressure(G)
|
0.15Mpa
|
|
|
||
|
Rated outlet pressure
|
1.0Mpa
|
|
|
||
|
Lubricating mode
|
No oil lubricate/ 100% oil free
|
|
|
||
|
Transmission mode
|
belt Driven
|
|
|
||
|
Cooling method
|
Air cooling
|
|
|
||
|
Dimension
|
1000*500*700mm
|
|
|
||
|
Weight
|
260kg
|
|
|
||
|
Motor Speed
|
740r/min
|
|
|
||
|
Voltage
|
440/380/220V
|
|
|
||
|
After-sales Service
|
Engineers available to service overseas
|
|
|
||
|
OEM
|
Welcomed (we have 5professional R&D engineers to do design & customizing service according to client's different requirement)
|
|
|
||
L Type Reciprocating Compressor Features
Keepwin Process air/ gas Reciprocating compressors consist of four types that are V type, L type and D type, P type, M type.The exhaust pressure ranges from 1.3 to 49 Mpa. The products are widely used in the industries of national defense,scientific research,petrochemical,nuclear power,parmaceutical,food-stuff and gas separation.
No gas pollution and No gas leakage during compression and transportation process.
Note:
1, In addition on the above-mentioned products we can also provide products used for compression of various gas and other specifications and models upon users' special requirement.
2, Clients' inquiries should contain related parameters
A. The gas compression medium
B. The flow rate: _____Nm3/hr
C. Inlet pressure: _____ Bar
D. Discharge pressure: _____ Bar
E. Inlet temperature
F. Cooling water temperature as well as other technical requirement.
Why Choose Us
About us
1, the company since 2002 professional to do special design & customize process gas compressor
Equipment & technology
2, the quality of the diaphragm compressor 's important spare part was produced by our own plant
Service
3, stable product quality , supply, the good faith management, and can do oversea after sales service
Certification
Product Packing
Related Products
100% Oil Free high purity compressed gas Oxygen Reciprocating Diaphragm Compressor
Model:G2V-10/8-160
F.A.D:10Nm3/min
Suction pressure: 8bar
Exhaust Pressure: 160Bar
GL4-240/20~200 Belt Drive L type Propylene Gas Diaphragm Compressor
Model:GL4-240/20~200
F.A.D:240Nm3/min
Suction pressure: 20bar,
Exhaust Pressure:200Bar
Compress medium:Propylene Gas
GD6-1000m3/min 14bar 50bar Tetrafluoroethylene Gas Diaphragm gas Compressor
F.A.D:1000Nm3/min
Suction pressure: 14bar
Exhaust Pressure:50bar
High purity oxygen compressor Oil Free Diaphragm Compressor G3Z-85/100~350
F.A.D:85Nm3/min
Suction pressure: 100bar
Exhaust Pressure:350Bar
