Quick Details
-
Jacket:
-
Xlpe
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YaGuang
-
Model Number:
-
PV1-F
-
Size:
-
1.5mm2~50mm2
-
Standard:
-
EN 50618 /2PfG 1169
-
Certificate:
-
TUV
-
Rated voltage:
-
AC 1000V DC 1500V
-
Temperature range:
-
-40℃ ~ +90℃
-
Core:
-
1 Core
-
Sample:
-
Contact
-
Packing:
-
Wooden / Plastic /Direct roll
-
MOQ:
-
1000 Meters
-
Product name:
-
Solar Cable for Photovoltaic
-
Color:
-
Black / Red
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Solar Cable for Photovoltaic
-
Conductor Material:
-
Copper
-
Jacket:
-
Xlpe
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YaGuang
-
Model Number:
-
PV1-F
-
Size:
-
1.5mm2~50mm2
-
Standard:
-
EN 50618 /2PfG 1169
-
Certificate:
-
TUV
-
Rated voltage:
-
AC 1000V DC 1500V
-
Temperature range:
-
-40℃ ~ +90℃
-
Core:
-
1 Core
-
Sample:
-
Contact
-
Packing:
-
Wooden / Plastic /Direct roll
-
MOQ:
-
1000 Meters
-
Product name:
-
Solar Cable for Photovoltaic
-
Color:
-
Black / Red

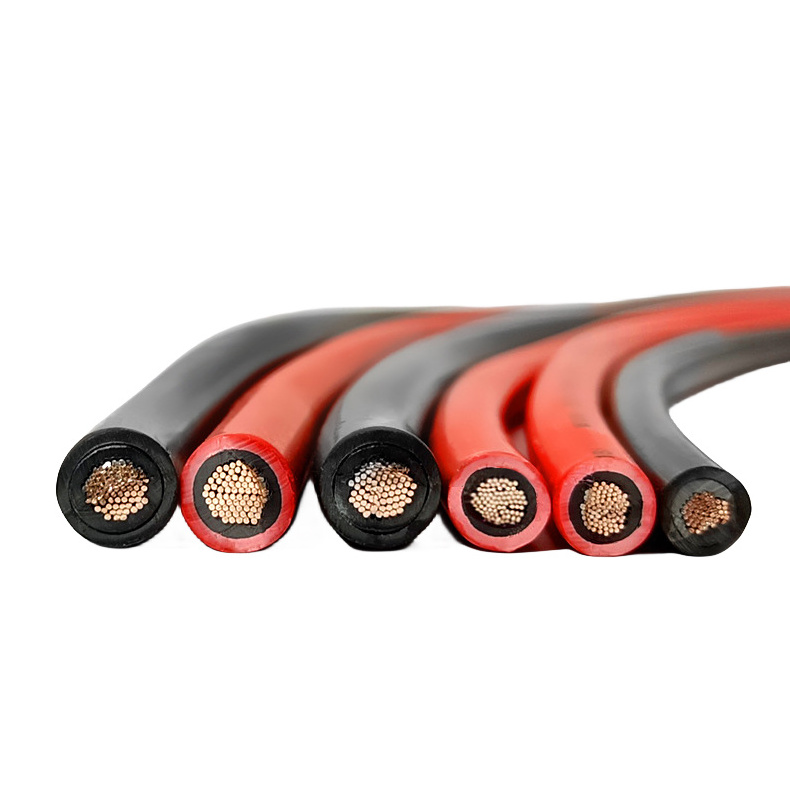

Product Description
These cables are designed for
connecting photovoltaic system
components inside and outside of buildings and equipment
with high mechanical requirements and extreme weather conditions
.
Specification
|
Standards
|
DIN EN 50618 (H1Z2Z2-K) (formerly PV-1F according to 2PfG 1169/08.2007)
|
|
Certification
|
TUV
|
|
Conductor
|
Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5
|
|
Insulation
|
Electron beam cross-linked, halogen free and flame retardant compound
|
|
Sheath
|
Electron beam cross-linked, LSZH and flame retardant compound, Black
|
|
Rated Voltage
|
U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
|
|
Maximum Permitted DC Voltage
|
1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)
|
|
Ambient Temperature
|
-40℃ ~ +90℃
|
|
Maximum Temperature At Conductor
|
120℃ (20000h) according to IEC/EN 60216-1
|
|
Minimum Bending Radius
|
4×OD (fixed), 5×OD (flexing)
|
|
Anticipated Period of Use
|
25 years
|
Product Paramenters
|
Model
|
No. of Cores
×Nominal Cross Section (No.×mm²) |
Nominal
Diameter
(mm)
|
Maximum
Conductor Resistance at 20℃
(Ω)
|
Current Carrying Capacity (A)
Single
cable free in air |
|
PVI-F
|
1×1.5
|
4.4
|
13.7
|
31.8
|
|
PVI-F
|
1×2.5
|
4.8
|
8.21
|
42.7
|
|
PVI-F
|
1×4
|
5.3
|
5.09
|
57
|
|
PVI-F
|
1×6
|
5.9
|
3.39
|
77.5
|
|
PVI-F
|
1×10
|
6.8
|
1.95
|
117.3
|
|
PVI-F
|
1×16
|
9.3
|
1.24
|
193.2
|
|
PVI-F
|
1×25
|
11.1
|
0.795
|
287.8
|
|
PVI-F
|
1×35
|
12.4
|
0.565
|
381.1
|
|
PVI-F
|
1×50
|
14.6
|
0.393
|
544.1
|
