Quick Details
-
Voltage:
-
380V
-
Power:
-
85KW
-
Dimension(L*W*H):
-
1800*2000mm
-
Weight (KG):
-
5000
-
plating style:
-
evaporation
-
consumption:
-
tungsten wire, aluminum
-
avalible color 1:
-
silver, gold, rainbow, multi color.
-
apply for:
-
all kinds of material
-
film function:
-
decoration
Quick Details
-
Machine Type:
-
pretreatment, Painting Equipment, Plc Controller Programmable Logic Controller, Pre-treatment Equipment, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chuanggao
-
Voltage:
-
380V
-
Power:
-
85KW
-
Dimension(L*W*H):
-
1800*2000mm
-
Weight (KG):
-
5000
-
plating style:
-
evaporation
-
consumption:
-
tungsten wire, aluminum
-
avalible color 1:
-
silver, gold, rainbow, multi color.
-
apply for:
-
all kinds of material
-
film function:
-
decoration
1. Feature

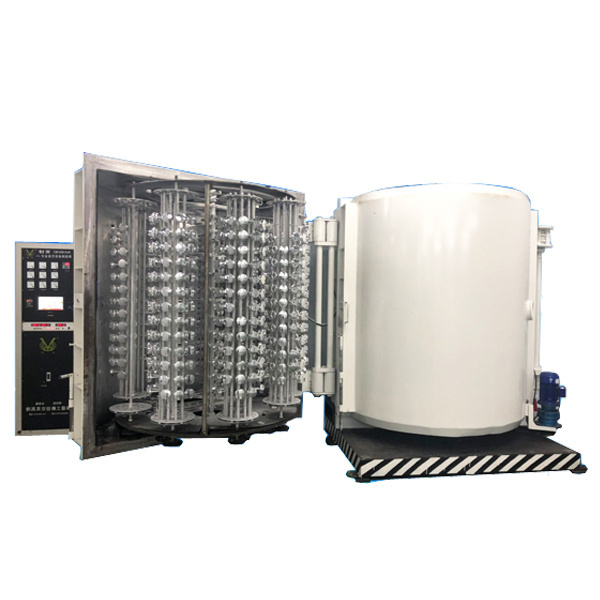

Evaporation vacuum machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule subsides on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Our self-developed diffusion pump, speed up the air extraction process and enhance the high limit vacuum rate. It’s with simple construction, long service life, easy to operating and maintaining.
2. Electroplating effects:
General electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, rainbow;
3. Applica tion: ceramic, poly resin, plastic
4. Main Technology Parameters
| Model | ZZ-1215 | ZZ-1416 | ZZ-1418 | ZZ-1618 | ZZ-1820 | ZZ-2022 |
| Vacuum chamber size | 1200x1500mm | 1400x1600mm | 1400*1800mm | 1600*1800mm | 1800*2000mm | 2000*2200mm |
| Evaporation power source | 20kw | 20kw | 20kw | 40kw | 40kw | 40kw |
| Chamber structure | Vertical | |||||
| Chamber material | carbon steel | |||||
| Ultimate vacuum | 8.0x10 -4 Pa | |||||
| Pump-down time | 2.0x10 -2 Pa≤7min | |||||
| Vacuum system | Diffusion pump + Roots pump + Mechanical pump + holding pump (can be allocated by customer's requests) | |||||
| Workpiece system | Rotation of the planet forms, frequency regulation (adjusting rotation speed) | |||||
| Control method | Manual/automatic all-in-one electric control cabinet | |||||
| Other technical parameters | Water pressure 0.4-0.6Mpa, water temperature≤30°C | |||||
| Remarks | Configuration of coating equipment can be designed according to the requirement of the coated products | |||||
For more information, please contact with us through below contacts:
Phone No. : 008615218530527
Wechat: 008615218530527
Our machine in customer’s workshop
