Quick Details
-
Model Number:
-
MHS-50S / MHS-80S
-
Dimension:
-
As below
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
50W/80W
-
Format:
-
N/A
-
Product Name:
-
Outdoor projector speaker
-
Rated Power:
-
50W@100/70V,100W@8Ω/80W@100V
-
Max power:
-
75W@100V,150W@8Ω/120W@100V
-
Sound pressure level (1m/w):
-
98dB / 102dB
-
Maximum SPL (Rated/1m):
-
112dB@100/70V,115dB@8Ω
-
Nominal impedance:
-
167Ω 333Ω 667Ω 1.3kΩ 2.6kΩ
-
Voltage:
-
70V / 100V
-
Feature:
-
Ultra clear sound in 500m
-
Enclosure:
-
High strength ABS casing and metal metal in white
-
Applications:
-
Playground, school, government, noisy industrial area,theme park
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinuna
-
Model Number:
-
MHS-50S / MHS-80S
-
Dimension:
-
As below
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
50W/80W
-
Format:
-
N/A
-
Product Name:
-
Outdoor projector speaker
-
Rated Power:
-
50W@100/70V,100W@8Ω/80W@100V
-
Max power:
-
75W@100V,150W@8Ω/120W@100V
-
Sound pressure level (1m/w):
-
98dB / 102dB
-
Maximum SPL (Rated/1m):
-
112dB@100/70V,115dB@8Ω
-
Nominal impedance:
-
167Ω 333Ω 667Ω 1.3kΩ 2.6kΩ
-
Voltage:
-
70V / 100V
-
Feature:
-
Ultra clear sound in 500m
-
Enclosure:
-
High strength ABS casing and metal metal in white
-
Applications:
-
Playground, school, government, noisy industrial area,theme park
Thinuna

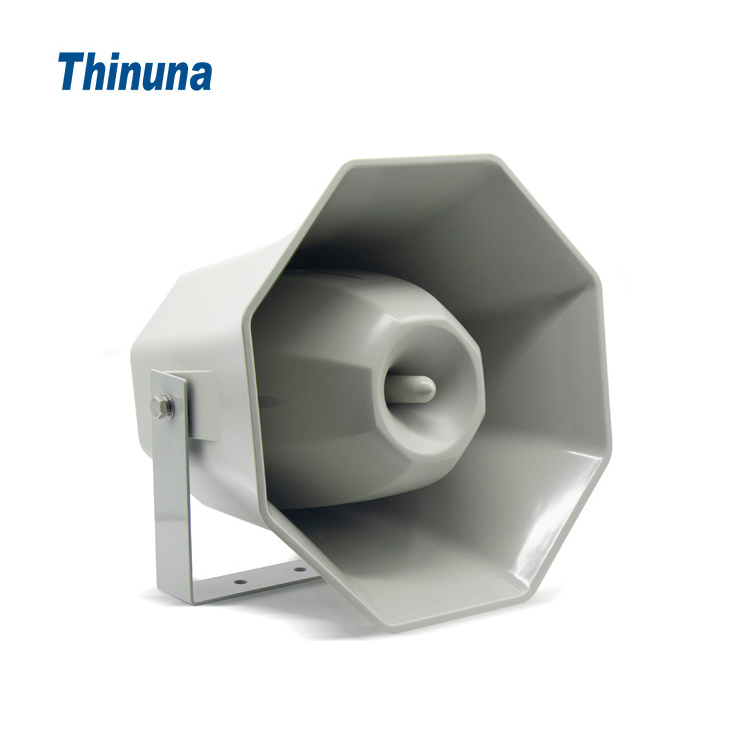

MHS-50S & MHS-80S 2-way PA public address sound system high power full range music horn/siren speakers for schools
Products Description
The MHS Series is a high quality music horn speaker designed to provide high quality voice and music reproduction and it can be installed indoors or outdoors. When the noisy environment requires long-distance, wide-range projection, and also requires high quality restoration, this music horn will be a good choice. They will be ideal for open-air stadiums, cruise tankers, schools, government, swimming pools, complex industrial areas, leisure areas, and theme parks.
Features:
- Built-in 70V/100V transformer, built-in LF 6.5" and 1" HF driver;
- Wide frequency response;
- IP66 weatherproof level, heavy damage proof finish, all weather design;
- Ultra clear and bright sound, good sound quality , HD horn speaker, outdoor proof;
- Adopt high strength ABS material, not easy to out of shape;
- Special design, portable and easy to install;
- Good for playground, cruise ship, school, government, swimming pool, noisy industrial area, leisure area, theme park;
- CE certificate, OEM and ODM service, factory price.
|
Product Name
|
High power full range music horn speaker
|
High power full range music horn speaker
|
|
|
Item No.
|
MHS-50S
|
MHS-80S
|
|
|
Rated power
|
50W@100/70V, 100W@8Ω
|
80W@100V
|
|
|
Max power
|
75W@100, 150W@8Ω
|
120W@100V
|
|
|
Power taps
|
100V : 50W / 25W /4.5W / 3.5W ; 70V : 25W / 12.5W / 6.25W / 4.5W / 2.25W / 1.75W
|
100V : 80W / 40W / 20W / 10W ; 70V : 40W / 20W / 10W / 5W
|
|
|
Nominal impedance
|
Constant pressure impedance : 200Ω, 400Ω, 800Ω, 1.1KΩ, 2.2KΩ, 2.8KΩ
|
Constant pressure impedance : 167Ω, 333Ω, 667Ω, 1.3KΩ, 2.6KΩ
|
|
|
Crossover modes
|
Passive
|
Passive
|
|
|
Sound pressure level （1m/w）
|
99dB
|
102dB
|
|
|
Maximum SPL(Rated / 1m)
|
112dB@100/70V , 115dB@8Ω
|
116dB@100/70V , 119dB@8Ω
|
|
|
Frequency response (-10dB)
|
90Hz ~ 20kHz
|
90Hz ~ 20kHz
|
|
|
Nominal coverage pattern (4kHz / 1kHz)
|
Horizontal: 30° Vertical:65°
|
Horizontal: 30° Vertical:90°
|
|
|
Speaker component
|
LF driver 6.5" x 1 + HF driver 1.5" x 1
|
LF driver 6.5" x 1 + HF driver 3" x 1
|
|
|
Connection methods for different power
|
Multiple combination: 100V: Red&Yellow: 50W ; Yell & Green: 25W; Green& White: 12.5W; Red&Green: 9W; Yellow&White:4.5W; Red&White:3.5W； Red & Black: 8Ω
|
Red: Rated impedance; Yellow: Twice the rated impedance;White: four times rated impedance;Green: eight times rated
impedance; Black: COM |
|
|
Enclosure
|
High strength ABS casing and metal bracket with UV gray paint spraying
|
High strength ABS casing and metal bracket with UV gray paint spraying
|
|
|
Operating temperature/humidity
|
-30°C ~ 60°C <95%
|
-30°C ~ 60°C <95%
|
|
|
Dustproof and water-proof level
|
IEC529 IP66
|
IEC529 IP66
|
|
|
Mounting Accessories
|
U-shaped mounting bracket provide quick and easy mounting
|
U-shaped mounting bracket provide quick and easy mounting
|
|
|
Dimensions (cm)
|
36.2 x25.2 x 31
|
34.8 x 34.8 x 28.8
|
|
|
Weight(each)
|
3.92 KGS
|
5.41 KGS
|
|
|
Grossy weight
|
4.72KGS
|
6.51 KGS
|
|
|
Master carton size (cm)
|
39 x 28 x 40
|
37 x 37 x 38
|
|
|
pplications
|
Playground, cruise ship, school, government, swimming pool, noisy industrial area, leisure area, theme park
|
Playground, cruise ship, school, government, swimming pool, noisy industrial area, leisure area, theme park
|
|
