Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runma
-
Weight:
-
260 kg
-
Dimension(L*W*H):
-
2480*1760*1560 mm
-
Product name:
-
Robot Arm
-
Model:
-
RQ1200WD
-
Max payload:
-
5kg
-
Drive mode:
-
AC servo Motor
-
Appliced to injection molding machine:
-
320-550T
-
Axis:
-
Five axis
-
Power:
-
AC220V ±10V 50/60 HZ
-
Dry Cycle time:
-
4.0 sec
-
Function:
-
Take-out Products
-
Weight (KG):
-
260
Quick Details
-
Warranty:
-
1 Year
-
Vertical Travel(mm):
-
1200 mm
-
Horizonal Travel(mm):
-
1700 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runma
-
Weight:
-
260 kg
-
Dimension(L*W*H):
-
2480*1760*1560 mm
-
Product name:
-
Robot Arm
-
Model:
-
RQ1200WD
-
Max payload:
-
5kg
-
Drive mode:
-
AC servo Motor
-
Appliced to injection molding machine:
-
320-550T
-
Axis:
-
Five axis
-
Power:
-
AC220V ±10V 50/60 HZ
-
Dry Cycle time:
-
4.0 sec
-
Function:
-
Take-out Products
-
Weight (KG):
-
260
Main explanation

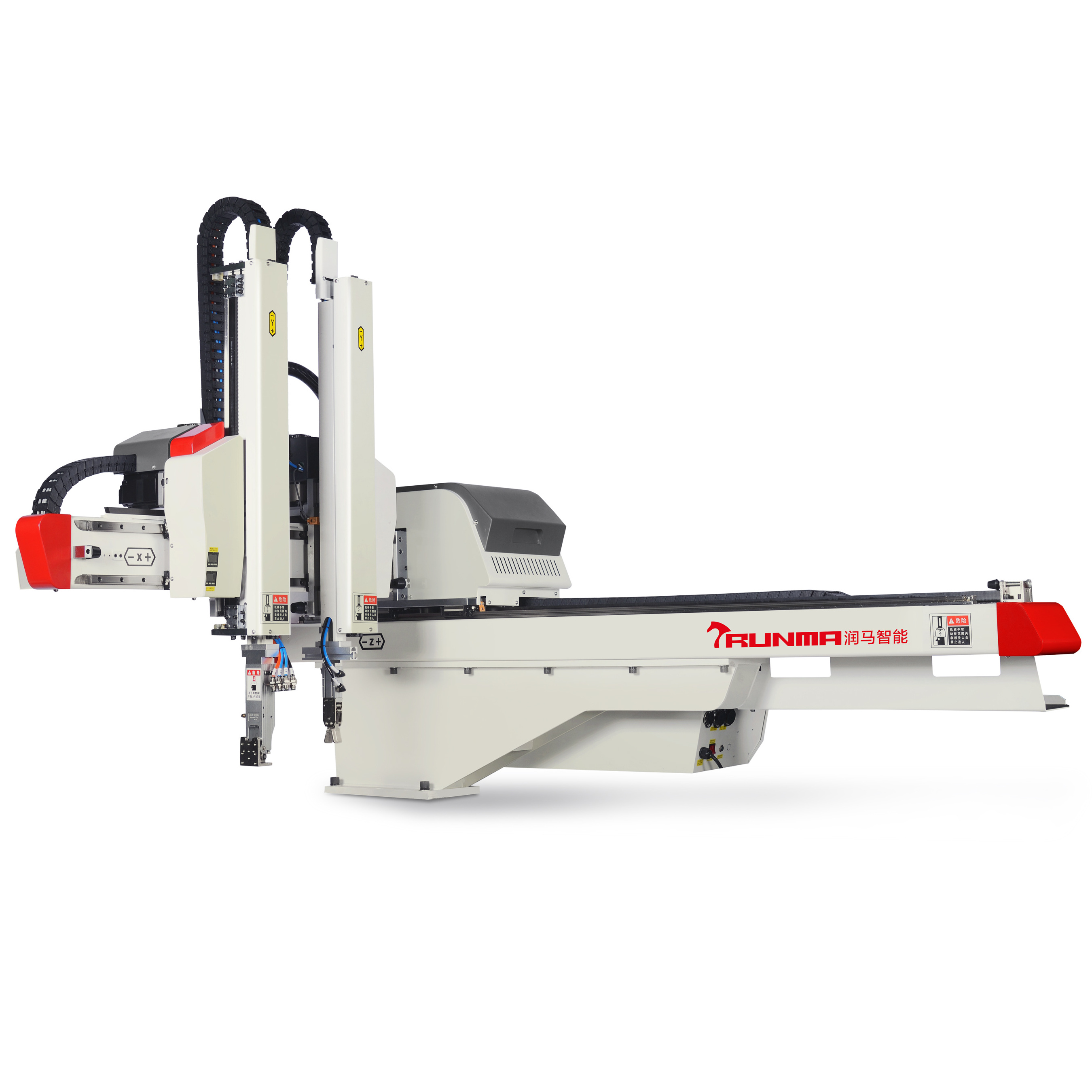

Three/Five axes telescopic arm traverse robot
Medium full servo traverse robot, this series are mainly applied to 150~550T horizontal
injection molding machines to take out the finished product. Telescopic arms are adopted. AC
servo motor can be added to take out sprue. Vertical, crosswise and traverse strokes are driven by
AC servo motor.Low noise THK (JP) or PMI (Taiwan) linear guideway is used to guarantee quiet
and stable movement. The complete set includes standard accessories.
injection molding machines to take out the finished product. Telescopic arms are adopted. AC
servo motor can be added to take out sprue. Vertical, crosswise and traverse strokes are driven by
AC servo motor.Low noise THK (JP) or PMI (Taiwan) linear guideway is used to guarantee quiet
and stable movement. The complete set includes standard accessories.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Applied to injection molding machine
|
320-550 T
|
|
2
|
Vertical stroke
|
1200 mm
|
|
3
|
Crosswise stroke
|
Main arm:480 mm/ Auxiliary arm: 200 mm
|
|
4
|
Traverse stroke
|
1700 mm
|
|
5
|
Side-pose rotation angle
|
90°
|
|
6
|
Max Payload
|
5 kg
|
|
7
|
Take-out time
|
2.0 sec
|
|
8
|
Dry cycle time
|
8.5-11 sec
|
|
9
|
Drven way
|
X、Y、Z、-AC servo Motor
|
|
10
|
Working Pressure
|
5-7 kgf/m²
|
|
11
|
Air Consumption
|
8 nl/cycle
|
|
12
|
Power
|
Single phase AC220V ±10V 50/60 HZ
|
|
13
|
Power consumption
|
2.5Kva
|
|
14
|
Net weight
|
260KG
|
Our Advantages
Exhibition
Customer Photos
FAQ
Q1:
Where is your factory located?
Q2:
Are you a manufacturer for injection molding machine robot?
A2: Yes, we have our own factory and our company business scope covers: industrial robots,horizontal robots, universal mechanical arms and spare parts.
Q4: How about the quality control in your factory?
A4: Our company Runma has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q5: What is the delivery time of the machine?
A5: The delivery time of the machines are depended on which model you choose. Normally, the delivery time could be within 30 to 60 days, and it could be more earlier if we have that model in stock.
Q6: Does your machine have any certification?
A6: Yes,All of our machines have CE certification.
Q7: What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
A1: Dongguan Runma Intelligent Technology Co., Ltd, located in Dongguan City which is famous for its manufacturing industries in Guangdong province,China.
A2: Yes, we have our own factory and our company business scope covers: industrial robots,horizontal robots, universal mechanical arms and spare parts.
Q3:
Will you offer the after-service? Will you send your engineer to my country to help commission and install the machine?
A3: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training your workers as well. Let us know where your company located and we will confirm you our native distributor ASAP.
A3: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training your workers as well. Let us know where your company located and we will confirm you our native distributor ASAP.
Q4: How about the quality control in your factory?
A4: Our company Runma has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q5: What is the delivery time of the machine?
A5: The delivery time of the machines are depended on which model you choose. Normally, the delivery time could be within 30 to 60 days, and it could be more earlier if we have that model in stock.
Q6: Does your machine have any certification?
A6: Yes,All of our machines have CE certification.
Q7: What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
