Quick Details
-
Power:
-
0.5-3.0Kw
-
Phases:
-
3
-
Voltage:
-
380V
-
Frequency:
-
50Hz
-
Rotation Speed:
-
1440r/min
-
I-Beam:
-
58-153mm-100-178mm
-
Lifting Height:
-
3/9m
-
Lifting Speed:
-
2.2-8.8m/min
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Finework
-
Power:
-
0.5-3.0Kw
-
Phases:
-
3
-
Voltage:
-
380V
-
Frequency:
-
50Hz
-
Rotation Speed:
-
1440r/min
-
I-Beam:
-
58-153mm-100-178mm
-
Lifting Height:
-
3/9m
-
Lifting Speed:
-
2.2-8.8m/min

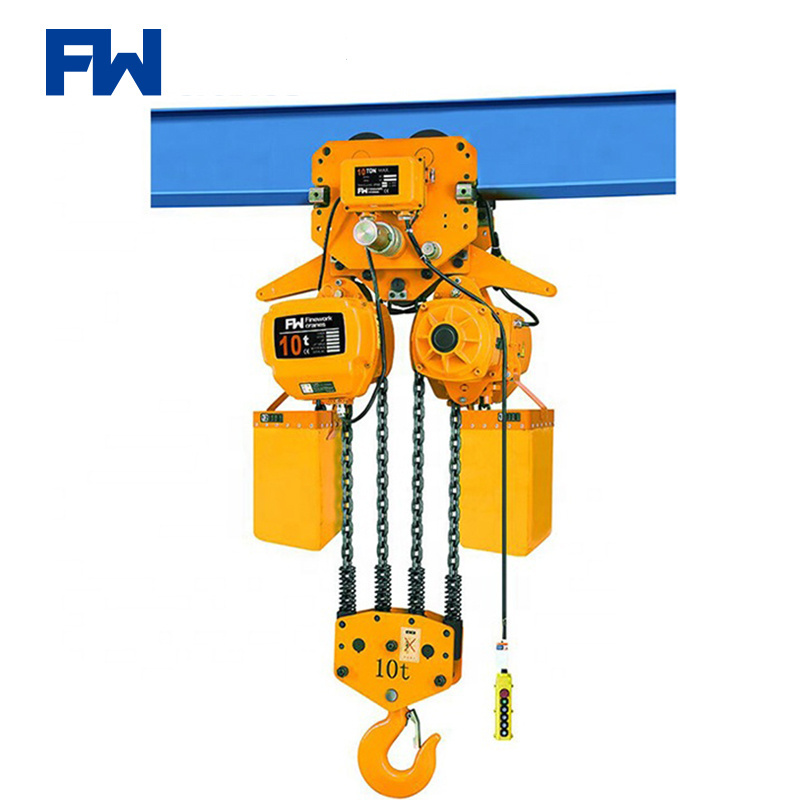

Finework Material Handling Equipment Electric Small Chain Hoist
1.Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
2.Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
3.Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop outomatically so as to prohibit the chains from exceeding for safety.
4.24V/36V device: it is used to prohibit the emergencies from occurring in case of the leakage in the switch.
5.Side magnetic braking device: This device shall realize the instant brake in case of the power dump.Chain bag: It shall be light, handsome and durable.
6.Chain: The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.
| Technical Parameters | ||||||||
| Type |
Capacity
(Ton) |
Lifting Height (m) |
Lifting Speed (m/min) |
Lifting motor | ||||
|
Power
(kw) |
Rotation
Speed (r/min) |
Phases
|
Voltage
(v) |
Frequency
(Hz/s) |
||||
| FW00501 | 0.5 | 3/9 | 6.8 | 0.75 | 1440 | 3 | 380 | 50 |
| FW0102 | 1 | 3/9 | 3.4 | 0.75 | 1440 | 3 | 380 | 50 |
| FW0101 | 1 | 3/9 | 6.6 | 1.5 | 1440 | 3 | 380 | 50 |
| FW01501 | 1.5 | 3/9 | 8.8 | 3 | 1440 | 3 | 380 | 50 |
| FW0201 | 2 | 3/9 | 6.6 | 3 | 1440 | 3 | 380 | 50 |
| FW0202 | 2 | 3/9 | 3.3 | 1.5 | 1440 | 3 | 380 | 50 |
| FW02501 | 2.5 | 3/9 | 5.4 | 3 | 1440 | 3 | 380 | 50 |
| FW0301 | 3 | 3/9 | 5.4 | 3 | 1440 | 3 | 380 | 50 |
| FW0302 | 3 | 3/9 | 4.4 | 3 | 1440 | 3 | 380 | 50 |
| FW0303 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 380 | 50 |
| FW0502 | 5 | 3/9 | 2.7 | 3 | 1440 | 3 | 380 | 50 |
| Type | Capacity(Ton) | Unit(mm) | |||||||||||
| H | A | B | D | E | I | J | K | L | M | N | Chain | ||
| FW00501 | 0.5 | 540 | 455 | 240 | 285 | 165 | φ34 | 28 | φ34 | 25 | 19 | 19 | φ6.3 |
| FW0102 | 1 | 575 | 455 | 240 | 285 | 165 | φ34 | 28 | φ34 | 25 | 19 | 19 | φ6.3 |
| FW0101 | 1 | 650 | 520 | 260 | 300 | 176 | φ42 | 32 | φ42 | 32 | 24 | 24 | φ7.1 |
| FW01501 | 1.5 | 800 | 615 | 295 | 430 | 265 | φ49 | 40 | φ49 | 40 | 30 | 30 | φ10 |
| FW0201 | 2 | 800 | 615 | 295 | 430 | 265 | φ49 | 40 | φ49 | 40 | 30 | 30 | φ10 |
| FW0202 | 2 | 835 | 520 | 260 | 300 | 236 | φ49 | 40 | φ49 | 40 | 30 | 30 | φ7.1 |
| FW02501 | 2.5 | 845 | 615 | 295 | 430 | 265 | φ59 | 48 | φ59 | 48 | 35 | 35 | φ11.2 |
| FW0301 | 3 | 845 | 615 | 295 | 430 | 265 | φ59 | 48 | φ59 | 48 | 35 | 35 | φ11.2 |
| FW0302 | 3 | 950 | 615 | 295 | 430 | 320 | φ59 | 48 | φ59 | 48 | 35 | 35 | φ10 |
| FW0303 | 3 | 950 | 520 | 260 | 350 | 205 | φ59 | 48 | φ59 | 48 | 35 | 35 | φ7.1 |
| FW0502 | 5 | 1030 | 615 | 295 | 430 | 325 | φ60 | 48 | φ60 | 48 | 43 | 43 | φ11.2 |
Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing, marketing, installation and maintenance.
Our products include EOT cranes, gantry crane, jib crane, electric hoist, and other types of cranes like explosion - proof, insulation, metallurgy and foundry, etc. Over the years we always dedicated to develop and manufacture high quality crane and hoist, our European type cranes and electric hoists fully comply to FEM/DIN standard. We have acquired the certificates of IS09001, ISO14001, and CE, etc. Our products have been exported to USA, Britain, Mexico, Argentina, Peru, Russia, Indonesia, Thailand, India, Vietnam, and other countries and regions.
1.Is your products customized?
Thanks for your question, yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.
3.How many operation methods for my selection?
Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabinet.
4.The space of my workshop is limited, can the crane is ok for me?
Thanks for your question. For low headroom workshop, we have special products. The details dimension our engineer will be design for you.
5.Do your side can provide lifting tools?
Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab...
