Quick Details
-
Torque:
-
365-390n.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eternal Luck
-
Model Number:
-
1GR 1GR-FE
-
Warranty:
-
12 Months
-
Engine Code:
-
1GR-FE
-
Car Model:
-
for Toyota
-
Material:
-
Aluminum&cast iron
-
Package:
-
Color Box+export Carton+pallet
-
Quality::
-
100% Tested
Quick Details
-
OE NO.:
-
1GR, 1GR-FE
-
Power:
-
250-285 HP
-
Displacement:
-
3956cc
-
Torque:
-
365-390n.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eternal Luck
-
Model Number:
-
1GR 1GR-FE
-
Warranty:
-
12 Months
-
Engine Code:
-
1GR-FE
-
Car Model:
-
for Toyota
-
Material:
-
Aluminum&cast iron
-
Package:
-
Color Box+export Carton+pallet
-
Quality::
-
100% Tested

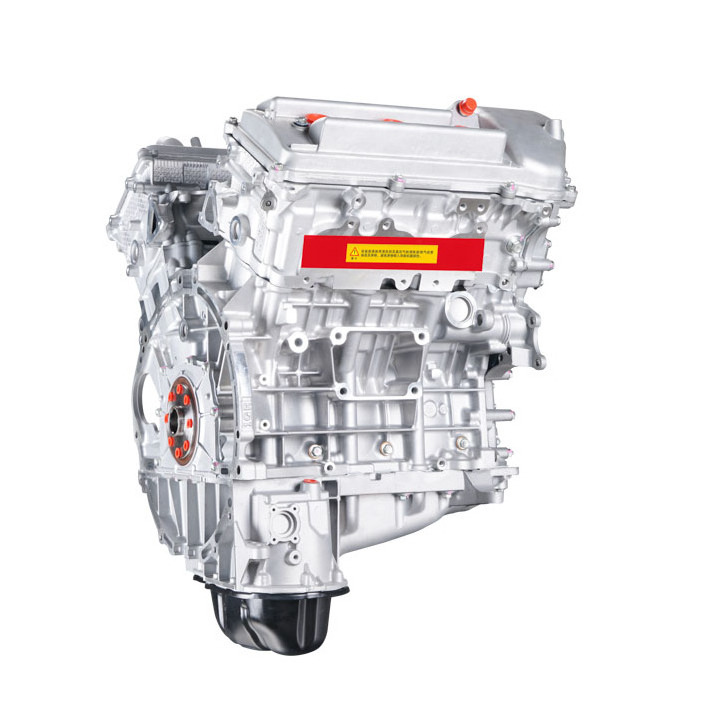

The 4.0-liter V6 Toyota 1GR-FE engine has been produced in factories in Japan and the USA since 2002 and is installed in many pickups and SUVs, but is best known for the Land Cruiser Prado. There are two generations of this power unit: with VVT-i and Dual VVT-i type phase regulators.
In 2002, a new 4.0-liter unit debuted on the Land Cruiser Prado 120 SUV. By design, this is a classic V6 engine for its time with a 60° camber angle. It has distributed fuel injection, an aluminum block with an open cooling jacket and cast-iron sleeves, aluminum DOHC cylinder heads without hydraulic lifters, a timing chain drive. The first generation of this motor was equipped with VVTi phase shifters only on the intake shafts.
In 2009, the second generation of the unit debuted on the Land Cruiser Prado 150 SUV, the main difference of which was the presence of VVTi phase regulators already on all camshafts. Also, most modifications of the motor were equipped with hydraulic valve clearance compensators.
The engine was installed on:
Toyota 4Runner 4 (N210) in 2002 – 2009; 4Runner 5 (N280) since 2009;
Toyota FJ Cruiser 1 (XJ10) since 2006;
Toyota Fortuner 1 (AN50) in 2004 – 2015; Fortuner 2 (AN160) since 2015;
Toyota Hilux 7 (AN10) in 2004 – 2015; Hilux 8 (AN120) since 2015;
Toyota Land Cruiser 70 (J70) since 2009; Land Cruiser 200 (J200) in 2007 – 2021; Land Cruiser 300 (J300) since 2021;
Toyota LC Prado 120 (J120) in 2002 – 2009; LC Prado 150 (J150) since 2009;
Toyota Tacoma 2 (N220) in 2004 – 2015;
Toyota Tundra 1 (XK30) in 2005 – 2006; Tundra 2 (XK50) in 2006 – 2021.
|
Technical Specifications
|
|
|
|
Displacement, cc
|
3956
|
|
|
Fuel system
|
distributed injection
|
|
|
Power output, hp
|
230 – 250 (single VVT-i)
250 – 285 (Dual VVT-i) |
|
|
Torque output, Nm
|
365 – 380 (single VVT-i)
365 – 390 (Dual VVT-i) |
|
|
Cylinder block
|
aluminum V6
|
|
|
Block head
|
aluminum 24v
|
|
|
Cylinder bore, mm
|
94
|
|
|
Piston stroke, mm
|
95
|
|
|
Compression ratio
|
10.0 (single VVT-i)
|
|
|
|
10.4 (Dual VVT-i)
|
|
|
Timing drive
|
chain
|
|
|
Phase regulator
|
VVT-i on intake shafts
Dual VVT-i |
|
|
Turbocharging
|
no
|
|
|
Recommended engine oil
|
5W-20, 5W-30
|
|
|
Engine oil capacity, liter
|
5.3 (single VVT-i)
6.3 (Dual VVT-i) |
|
|
Fuel type
|
petrol
|
|
|
Engine lifespan, km
|
~500 000
|
|
|
Weight, kg
|
166
|
|
Q1. Which package do you used ?
A: Generally we pack our goods in neutral or white boxes and brown cartons. Your own brand and and logo are welcomed after getting your authorization letter.
Q2. What‘s your payment way?
A: T/T 30% advance, and 70% after send photos of goods to you before load .
Q3. What’s the delivery way ?
A: We accept EXW, FOB, CFR, CIF, DDU, just as your wish.
Q4. How long is your delivery time?
A: Usually it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What can I do if i received bad products ?
A: We will think highly of your feedback, Please contact our sales at once if you find any problems after you received goods, our sales will give you resonable reply and help you solve all problems.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
