Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GCC
-
Model Number:
-
KL-FH-001
-
Product name:
-

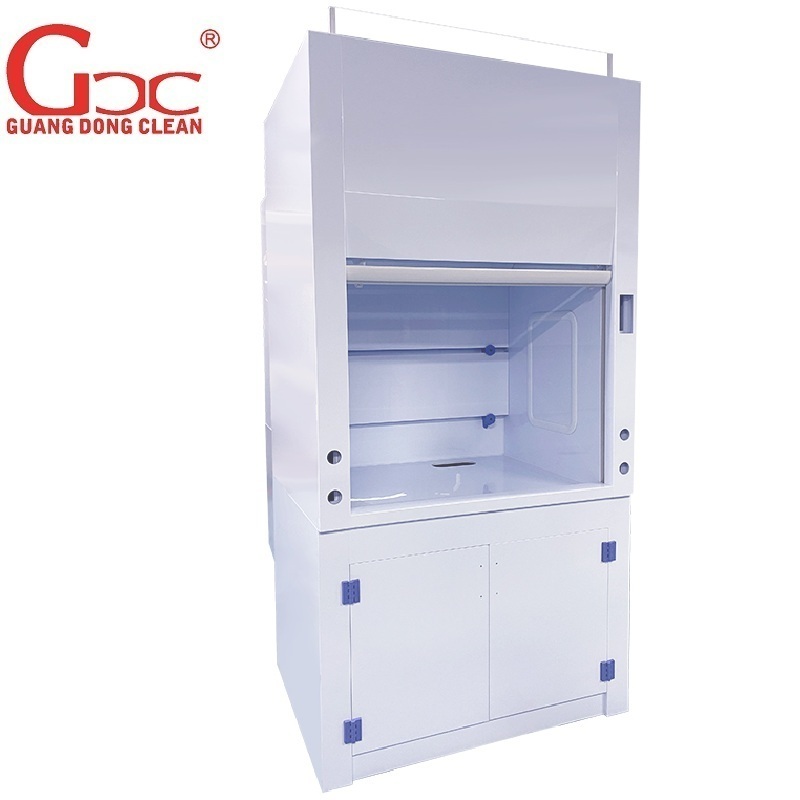

Cabinet Fume Hood Laboratory
-
Function:
-
Normal or Ductless fume hoods
-
Keyword:
-
Fume Hood in Chemistry Lab
-
NOISE:
-
<65dB
-
Usage:
-
laboratory
-
Size:
-
Customized
-
Certification:
-
CE ISO
-
Air velocity:
-
0.3-0.6m/s
-
Sash:
-
temper glass
Quick Details
-
Application:
-
Hospital, School
-
Design Style:
-
Industrial
-
Material:
-
Metal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GCC
-
Model Number:
-
KL-FH-001
-
Product name:
-
Cabinet Fume Hood Laboratory
-
Function:
-
Normal or Ductless fume hoods
-
Keyword:
-
Fume Hood in Chemistry Lab
-
NOISE:
-
<65dB
-
Usage:
-
laboratory
-
Size:
-
Customized
-
Certification:
-
CE ISO
-
Air velocity:
-
0.3-0.6m/s
-
Sash:
-
temper glass
Fume Hood Design.
A chemical fume hood is a ventilated enclosure used to trap and exhaust vapors, gases, and nanoparticles. The
exhaust fan is typically stationed at the top of the building and pulls air through the duct work connected to the hood and
exhausts it into the atmosphere.
exhaust fan is typically stationed at the top of the building and pulls air through the duct work connected to the hood and
exhausts it into the atmosphere.
Ductless fume hoods,
sometimes called carbon-filtered enclosures or filtered fume hoods, are self-contained, filtered laboratory
enclosures that remove hazardous fumes, vapors and particles from the laboratory. Unlike traditional fume hoods, installation costs are very low and no ductwork is required.
enclosures that remove hazardous fumes, vapors and particles from the laboratory. Unlike traditional fume hoods, installation costs are very low and no ductwork is required.
|
External Size(W*D*H)(mm)
|
|
1000 x 800 x1400
|
1500 x 880 x 2350
|
1800 x 880 x 2350
|
|||
|
Internal Size(W*D*H)(mm)
|
|
750 x 650 x 1000
|
1250 x 700 x 1150
|
1550 x 700 x 1150
|
|||
|
Exhaust air volume
|
|
700-1000m³/h
|
900-1700m³/h
|
1300-2100m³/h
|
|||
|
Work Surface Height
|
|
850 mm
|
|
|
|||
|
Air Velocity
|
|
0.3 -- 0.6 m/s
|
|
|
|||
|
Noise
|
|
≤65dB(A)
|
|
|
|||
|
Sash
|
|
temper glass
|
|
|
|||
|
Power Supply
|
|
AC110/ 220V, 50/60Hz(optional)
|
|
|
|||
|
Material
|
Body
|
1.0/ 1.2mm cold-rolled steel
|
|
|
|||
|
|
Inner liner Panel
|
Compact board/ Glass fiber board/ Ceramic board
|
|
|
|||
|
|
Countertop
|
Phenolic resin/ Epoxy resin/ Ceramic
|
|
|
|||
|
Accessory
|
|
Switch for fan and lamp
|
|
|
|||
|
|
|
LED lamp
|
|
|
|||
|
|
|
Circuit breaker
|
|
|
|||
|
|
|
Electric sockets
|
|
|
|||
|
Option
|
|
Water supply,Gas supply
|
|
|
|||
|
Standard
|
|
CE
|
ISO
|
|
|||
Product Description
2, countertops: solid physical and chemical board, epoxy board, ceramic board, marble, the edge into the arc edge. The outer edge of two-way arc chamfer; it can resist acid, alkali, strong oxidizer and other corrosion reagents. (Thickness, brand customer matching)
3, the OTC liner: the thickness of 6mm Anti-Beat board, the side configuration window for maintenance of waterway, circuit or gas line maintenance; the use of three-stage design allows experiment with different proportion of harmful gases can be effective, faster discharge.
4, Windows: 5mm thick safety glass, window with stainless steel chain drive, counterweight, CVT balance weight design, lifting freely, height can be parked in any position, no noise, greatly extending the service life; Automatic homing function (with self-rebounding pulley cable and automatic return belt), the opening height above the center, the window has an automatic return to the middle of the function.
5, Suspension cable: The use of synchronous belt or stainless steel chain push and pull connection to ensure the stability of the control door lift at the same time achieve the best anti-corrosion effect, the belt core with 7 wires to ensure that the belt bearing capacity is much higher than the weight of the weight.
6, Set hood: the use of PVC welding material forming, with condensate tank function.
7, LCD control panel: After the controller is powered on, the buzzer beeps once, the red indicator lights up, and the system enters the standby state. In standby mode, pressing the [On / Off] button will activate the controller. At this point green light is on, LCD backlight is on.
8, noise (and ventilation system supporting): ≤ 65dB (GB).
9, Other: Equipped with electronic display device to ensure that the exhaust volume is the minimum reasonable value in actual use, noise (and ventilation system): ≤ 65dB (GB).
7, LCD control panel: After the controller is powered on, the buzzer beeps once, the red indicator lights up, and the system enters the standby state. In standby mode, pressing the [On / Off] button will activate the controller. At this point green light is on, LCD backlight is on.
8, noise (and ventilation system supporting): ≤ 65dB (GB).
9, Other: Equipped with electronic display device to ensure that the exhaust volume is the minimum reasonable value in actual use, noise (and ventilation system): ≤ 65dB (GB).
Quality control:
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. Checking raw material before producing.
2. Checking one by one before the assembling
3.
Checking one by one during the production
4. Have the random inspection before the delivery.
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
FAQ
Q1:
.How about delivery time?
A:
Within 7-15 workdays after receiving deposit.
Q2:
How about validity of quotation ?
A:
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
Q3:
How about the package?
A:
Bubble film + Cotton +Standard export wooden case.
Q4:
How to inspect the goods?
A:
Products will be checked by our QC staff frist, then our proejct manager. Client can come and check by themselves or third party check is available.
Q5:
Can we visit your factory ?
A:
Sure, welcome to visit our factory if you come to China.
