Quick Details
-
Voltage:
-
220V,Customizable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
(L)3990* (W)1000*(H)1468mm
-
Usage:
-
flow pack
-
Film material:
-
OPP CPP PET PE
-
Control:
-
Touchable Screen
-
Description:
-
Automatic Flow Wrapping Machine
-
Advantage:
-
Easy Control
-
Pouch type:
-
pillow bag/back sealing bag
-
Optional Devices:
-
Date Coder
-
Automaticity:
-
Touch Screen
-
Keyword:
-
Bag Pillow Packaging Machine
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE Certification
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Sealing, SLITTING, Cutting
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch, sachet
-
Packaging Material:
-
Plastic, Paper, bag packing machine
-
Voltage:
-
220V,Customizable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
(L)3990* (W)1000*(H)1468mm
-
Usage:
-
flow pack
-
Film material:
-
OPP CPP PET PE
-
Control:
-
Touchable Screen
-
Description:
-
Automatic Flow Wrapping Machine
-
Advantage:
-
Easy Control
-
Pouch type:
-
pillow bag/back sealing bag
-
Optional Devices:
-
Date Coder
-
Automaticity:
-
Touch Screen
-
Keyword:
-
Bag Pillow Packaging Machine
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE Certification

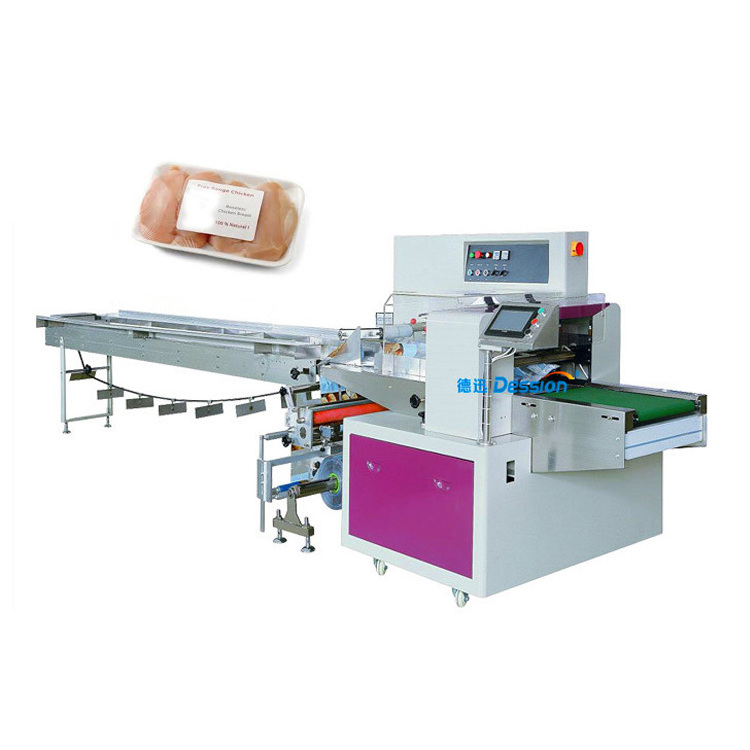

Factory Price Automatic Horizontal Packaging Machine
Machine Introduction
Packaging Application
Automatic flow packing machine is a widely used packing machine.
Suitable for all kinds of product packaging. Including medical supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.
Packing Effect
The effect after packaging is back-seal bag.
According to demand, other devices can be customized or upgraded to meet other models.
For example, pillow bag with hole, bag with label, gusset bag, etc.
Machine characteristics and parameters
1. Double frequency conversion control, the bag length canbe set and cut, no need to adjust the air, one step in place, saving time and film.
2. Man-machine interface, parameter setting is convenient and quick.
3. Fault self-recognize function, fault display at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing position, make sealing position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticky kuife, no waste film.
7. The transmission system is simple, the work is more reliable, and maintenance is more convenient.
8. All control is implemented by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
3. Fault self-recognize function, fault display at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing position, make sealing position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticky kuife, no waste film.
7. The transmission system is simple, the work is more reliable, and maintenance is more convenient.
8. All control is implemented by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
|
Model
|
DS-250X
|
DS-350X
|
DS-450X
|
DS-600X
|
DS-700X
|
DS-800X
|
|||||
|
Film Width
|
Max.250mm
|
Max.350mm
|
Max.450mm
|
Max.600mm
|
Max.700mm
|
Max.800mm
|
|||||
|
Bag Length
|
45~190mm
or 90~330 mm
|
65~280mm
or 90~330mm
|
120~450mm
|
130~450mm
|
120~600mm
|
120~600mm
|
|||||
|
Bag Width
|
30~110mm
|
50~160mm
|
60~210mm
|
60~280mm
|
50~330mm
|
50~380mm
|
|||||
|
Product Height
|
Max.40/70mm
|
Max.45/80mm
|
Max.110mm
|
150~4000ml
|
Max.150mm
|
Max.150mm
|
|||||
|
Roll Diameter
|
Max.320mm
|
|
|
|
|
|
|||||
|
Packaging Speed
|
40~230 bags/min
|
5~60 bags/min
|
30~150 bags/min
|
30~180 bags/min
|
20~120 bags/min
|
30~150 bags/min
|
|||||
|
Machine Power
|
220V,50/60Hz,2.4KW
|
220V,
50/60HZ,
2.2KW
|
220V,
50/60HZ,
3KW
|
220V,
50/60HZ,
3KW
|
220V,
50/60HZ,
3.6KW
|
220V,
50/60HZ,
3.6KW
|
|||||
|
Machine Size
(L*W*H)mm
|
3770*670
*
1450
|
3770*720
*1450
|
3770*720
*1450
|
4020*770
*1450
|
3990*900
*1468
|
3990*1000
*1468
|
|||||
|
Machine Weight
|
800kg
|
900kg
|
750kg
|
700kg
|
900kg
|
1050kg
|
|||||
|
Optional Device
|
Date Coder, Air-filling Device, Punching Device
|
|
|
|
|
|
|||||
Machine Details
Machine Details and Workflow
This machine is easy to operate.
Just set the parameters on the screen, and then you can start the machine. Put the product on the conveyor belt, the machine will automatically pull the film, the bag is formed, sealed, and finally the bag is cut.
Multilingual touch screen
The machine supports various language customization, easy to operate.
High sensitivity eye sensor
The eye sensor automatically senses the color code to ensure accurate and beautiful packaging effects.
Replaceable
bag former
When you want to change the bag width, you only need to change a different size bag fromer.
Electronic control component
Use Panasonic PLC and frequency converter to ensure the stable operation of the machine.
Why Choose Us
1. Professional and strong team
Dession has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer.
Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of
the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
2. High-quality products
The core electrical appliances of the machine choose international well-known brands, including PLC, frequency converter, relay, switch, induction sensor, etc., to ensure the stable operation of the machine.
The machine has CE certificate and ISO9001 certificate
3. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible.
Provide door-to-door transportation services.
4. Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
