Quick Details
-
Function:
-
inflator, deflator
-
Function1:
-
Inflate
-
Function2:
-
Deflate
-
Display:
-
LED Digital Display
-
Accuracy:
-
±0.2Psi,±0.01 Kg/c㎡,±0.013bar,±1Kpa
-
Function3:
-
TEST
-
range:
-
0-189psi
-
Keyword:
-
tire inflator
Quick Details
-
Car Fitment:
-
ABG (Allg Baumasch Gesellsch)
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12 Months
-
Function:
-
inflator, deflator
-
Function1:
-
Inflate
-
Function2:
-
Deflate
-
Display:
-
LED Digital Display
-
Accuracy:
-
±0.2Psi,±0.01 Kg/c㎡,±0.013bar,±1Kpa
-
Function3:
-
TEST
-
range:
-
0-189psi
-
Keyword:
-
tire inflator
LED Tire/tyre Inflate Pre-set Pressure Fully Automatic Inflator 4 Pressure Unit LED Digital Display
| Technical parameter | |||||
| Model | TB-902 | ||||
| Applicable vehicle | Moto-bicycle,Van,Car,SUV | ||||
| Display mode | LED digital display (340x235mm,backlight display) | ||||
| Powerstyle | 3.7V | ||||
| Workingtemperature | -20~+65℃ | ||||
| Storagetemperature | -20~+65℃ | ||||
| Using | Air | ||||
| Function | Inflate | ||||
| Deflate | |||||
| 4 pressure unit choose ,Psi Bar Kg/cm2 Kpa, | |||||
| reminder and memory function | |||||
| Max inlet pressure | Kg/cm² | 10 kg/cm² | |||
| Bar | 10 Bar | ||||
| Psi | 150 Psi | ||||
| Kpa | 1000Kpa | ||||
| Gauage Measuring range | Kg/cm² | 0 Kg/cm² ~ 7 kg/cm² | |||
| Bar | 0.0~7 Bar | ||||
| Psi | 0.3~100Psi | ||||
| Kpa | 20~700Kpa | ||||
| Accuracy | Kg/cm² | ±0.01 Kg/cm² | |||
| Bar | ±0.01bar | ||||
| Psi | ±0.2Psi | ||||
| Kpa | ±3Kpa | ||||
| Differentiation | 0.5Psi/0.05Bar/0.05Kg/cm²/5Kpa | ||||
| Standard fittings: | Wall-hung Tire Inflator | ||||
| 10m High pressure ruber hose (with air chuck) | |||||
| Power Cable | |||||
| Packe size | 340x238x65mm | ||||
| Net weight | 6.8kg | ||||
Operating Instructions

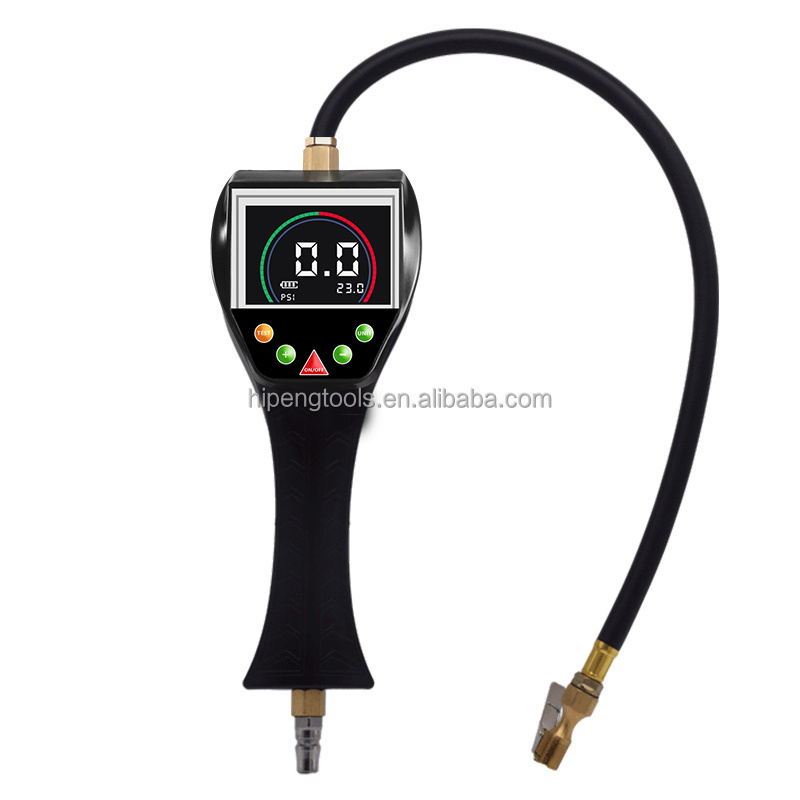

Fully Automatic Handheld Inflatable Gun
1. Start
1. Connect the tire, and it will automatically turn on when you feel the air pressure
2. Press the "OFF/ON" button to power on
2. () Automatic mode) Set the pressure in advance, connect the tire, it can be automatically inflated, or automatically deflated to the set pressure value.
When the work is finished, remove the clamp nozzle (for the next operation, the air tube must be connected to the tire).
3. Detect the pressure (also known as manual mode), press the TEXT button, connect the tire, this is to detect the pressure of the tire, if you want to exit the detection mode, press TEST.
1. When you press the TEST button, connect the trachea to the tire, keep pressing (+) or (-) with your finger to manually add or deflate air, exit the manual mode, and press the TEXT button once.
Note: When the progress bar on the screen changes, the button cannot be pressed. You need to press the OFF/ON button and do not connect the trachea to the tire before you can operate the next step.
*Pre-set pressure automatic inflate
*
LED backlight display
*4 pressure units switch
*Pressure unit Memory function
*Universal joint
*Accuracy ±0.2Psi
Why choose us?
Our Service
1. OEM Manufacturing welcome: Product, Package, pressure gauge invention...
2.
free Sample
.
3.
1 year guarantee.
4. We will reply you for your inquiry in 24hours.working day:7*24.
5. after delivery, we will track the products for you once every two days, until you get the products.
FAQ
Q1.Are you a manufacturer or trading company?
A:Established in 2006, Zhuhai SeaPeng Automobile Testing Equipment Co., LTD. is a high-tech enterprise specialized in manufacturing, researching and sales of Tire inflator with Pressure Gauge and AIR inflation system. Headquartered at Zhuhai, China, SeaPeng has dedicated itself in the manufacturing of air inflation over the last 13 year.
Q2.Where is your factory located ? How can I visit there ?
A: With an ISO90001 certified factory located in TangJia wan,ZhuHai city , Guang dong Province , P.R. China . It takes about 1 hour from Guang zhou railway station by train. Welcome to visit us.
