Quick Details
-
Application:
-
Indoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchuang
-
Model Number:
-
PVC laminated Gypsum Ceiling Tiles
-
Sample:
-
Support Proofing
-
Shape:
-
Square or rectangle
-
Size:
-
595*595mm/ 603*603mm/595*1195mm/600*1200mm(Customizable)
-
Thickness:
-
7-12.5mm
-
Surface treatment:
-
Film coated
-
Color:
-
White
-
Pattern:
-
Various
-
Usage:
-
Decorative Material
-
Packing:
-
carton
-
Item:
-

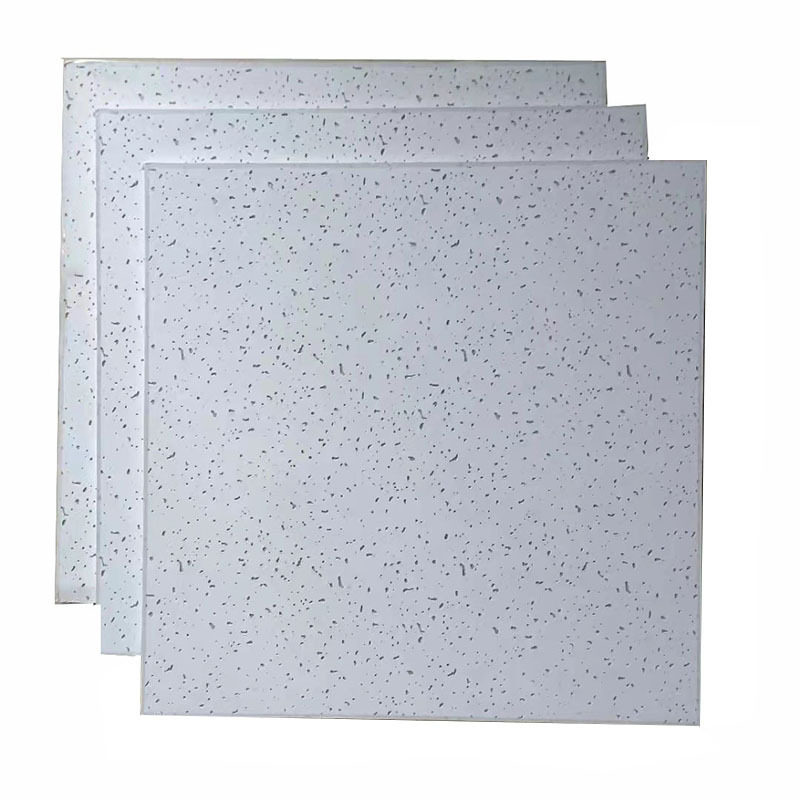

PVC Laminated Gypsum Ceiling Tiles
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
NONE
-
Project Solution Capability:
-
NONE, Others
-
Application:
-
Indoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchuang
-
Model Number:
-
PVC laminated Gypsum Ceiling Tiles
-
Sample:
-
Support Proofing
-
Shape:
-
Square or rectangle
-
Size:
-
595*595mm/ 603*603mm/595*1195mm/600*1200mm(Customizable)
-
Thickness:
-
7-12.5mm
-
Surface treatment:
-
Film coated
-
Color:
-
White
-
Pattern:
-
Various
-
Usage:
-
Decorative Material
-
Packing:
-
carton
-
Item:
-
PVC Laminated Gypsum Ceiling Tiles
Product Description
Product Paramenters
Technical Data
|
|
|
Materials
|
Gypsum Board
|
|
Surface
|
PVC and Aluminum Foil
|
|
Strength
|
Break Load>150N
|
|
Containing Water Rate
|
< 1%
|
|
Allow Dimension Difference
|
Length ≤±2.0mm; Width ≤±2.0mm; Thickness ≤±0.5mm
|
|
Weight
|
< 6.5kg/m2
|
|
Fireproof Class
|
Class B1 Meet the standard:GB8624-1997
|
|
Moisture Requirement
|
Under 90%
|
Specification
|
|
|
|
|||
Length(mm)
|
Width(mm)
|
Thickness(mm)
|
Edge
|
|||
595
|
595/1195
|
7/8/9
|
Covered / Non-covered
|
|||
600
|
600/1200
|
7/8/9
|
Covered / Non-covered
|
|||
603
|
603/1210
|
7/8/9
|
Covered / Non-covered
|
|||
605
|
605/1210
|
7/8/9
|
Covered / Non-covered
|
|||
610
|
610/1220
|
7/8/9
|
Covered / Non-covered
|
|||
625
|
1250
|
7/8/9
|
Covered / Non-covered
|
Installation
Project Case
About us
FAQ
Our services and advantages
1. Development of the company
Hengchuang has been engaged in ceiling manufacturing business since 1995, with more than 20 years of careful production and management experience.
In 2008, Hengchuang has been transformed from a small factory to a modern manufacturing enterprise. And started our international business in 2012,
At the beginning of 2012, the Export Department was officially established, and the sales network was further extended to the global market.
2. Research group
Do not forget the original intention, and finally get the results you want, but it is easy to take the initiative, but it is difficult to persist. However, Hengchuang has been continuously insisting on the improvement of production and research
Hengchuang factory management standards have passed the ISO international management system certification, and all products have passed the most stringent SGS and CE global quality certification.
3. Production equipment
Good tools are a prerequisite for successful work.
With the top equipment maintenance team in China, to create the most advanced ceiling grille production line in China, the mold accuracy reaches 0.001mm level. And greatly improve the accuracy of the product.
Therefore, the degree of automation has reached the first-class level in China, which greatly saves labor costs and greatly improves product quality.
4. Raw Materials
Hengchuang has the most complete and mature industrial chain in China.
Our high-quality coatings guarantee zero chromatic aberration and long-term stability of surface color.
In addition, the stable substrate and zinc layer thickness further improve the stability of product quality.
5. Product positioning
Our products have covered the vast majority of varieties and specifications in the global market, and can provide customized products according to customer requirements.
Hengchuang's product positioning is always aimed at the middle and high-end market, and we choose our most advantageous categories for self-branding.
We have more than 20 years of professional, dedicated and original experience in the ceiling mesh industry, providing superior quality assurance to users worldwide.
