Quick Details
-
Application:
-
gardening machinery, fire fighting robot
-
Material:
-
Natural rubber &steel frame
-
Packing:
-
Plywood Case
-
H.S.Code:
-
8431499900
-
Delivery time:
-
about 7 days
-
Market:
-
Global
-
Size:
-
Customized Size
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM, OEM
-
Part name:
-

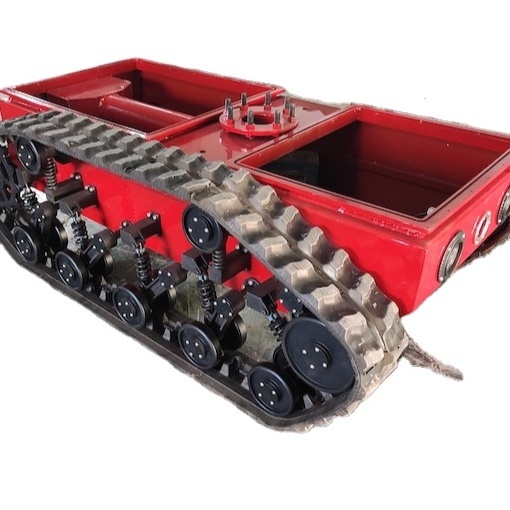

Rubber tracked chassis undercarriage
-
Application:
-
gardening machinery, fire fighting robot
-
Material:
-
Natural rubber &steel frame
-
Packing:
-
Plywood Case
-
H.S.Code:
-
8431499900
-
Delivery time:
-
about 7 days
-
Market:
-
Global
-
Size:
-
Customized Size
We customized various tracked undercarriage systems and the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling m achines (core drill, horizontal directional drilling rig, belt engineerin g drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs. If you are just in need to customize a rubber track chassis, please feel to consult us at any time.
Below is our small size, for big size,please kindly contact us
|
Small size rubber track undercarriage chassis platform |
|||||||||
|
Model |
Length |
Width |
Height |
Sprocket Diameter |
Rubber Track Model/Width |
Rubber Track Link |
Weight |
Load-bearing Weight |
fr ame |
|
KCM -40 |
540mm |
545mm |
150mm |
140mm |
40/40mm |
27 |
26.5kg |
50kg |
Aluminum Alloy Bracket |
|
KCM- 50 |
810mm |
377mm |
165mm |
99mm |
KCM DG-50/50mm |
75 |
50kg |
100kg |
Stainless Steel Bracket |
|
KCM -76 |
940mm |
550mm |
210mm |
200mm |
KCM -A/76mm/ KCM -B/60mm |
138/84 |
24.15kg |
150kg |
Aluminum Alloy Box |
|
KCM -100 |
700MM |
520MM |
240MM |
197MM |
KCM -A/100mm |
40 |
95kg |
100kg |
Aluminum Alloy Box |
|
KCM -70 |
590mm |
530mm |
250mm |
172mm |
KCM -70/70mm |
28 |
17.85kg |
100kg |
|
|
KCM -70 |
800MM |
570MM |
300MM |
195.7MM |
KCM -70/70mm |
43 |
44kg |
150kg |
Aluminum Alloy Box |
|
KCM -70 |
1010MM |
540MM |
410MM |
195.7MM |
KCM -70/70mm |
54 |
106kg |
150kg |
Aluminum Alloy Box |
|
KCM -100 |
640mm |
520mm |
260mm |
212mm |
KCM -A/ 100mm |
36 |
46kg |
75kg |
Square Tube Bracket |
Please kindly contact us for details! highly welcome your consulting!
