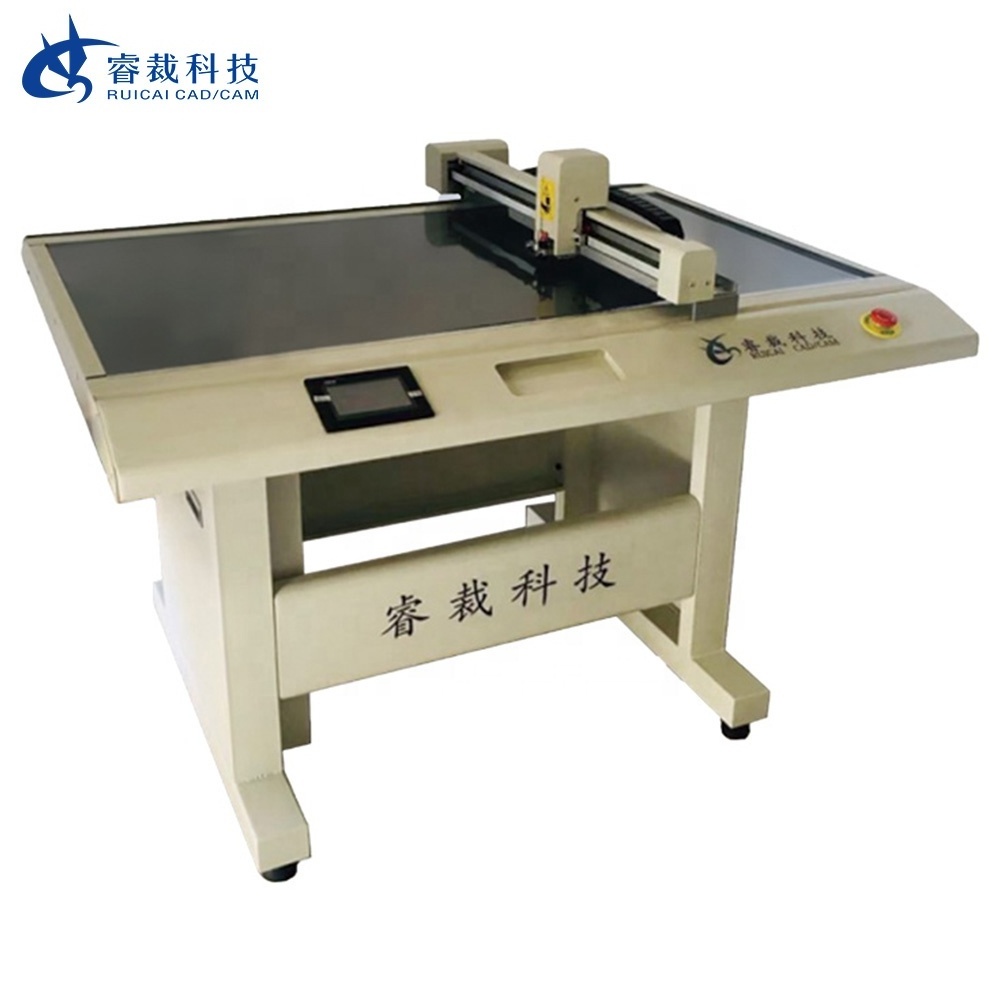

RUICAI Fabric Pattern Computer Control Flatbed Pattern Fabric Sample Making Drawing Pattern Cutting Plotter Machine

RUICAI Fabric Pattern Computer Control Flatbed Pattern Fabric Sample Making Drawing Pattern Cutting Plotter Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3100

≥10 Sets

US $2500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Brand Name:: RUICAI

Voltage:: AC380V

Dimension(L*W*H):: 1275*1080*1050mm

Weight:: 150 kg

Marketing Type:: Automatic intelligent machinery

Product name:: Pattern Cutting Plotter Machine

Function:: Cutting Cardboard

Cutting materials:: Multiple Materials

Usage:: Industrial Usage

Certification:: CE Standard

Power Supply:: 7.5KW

Rated voltage:: AC220±10%

Cutting speed:: 1200mm/s

Cutting thickness:: 2mm

Fixing type:: Adhesive adsorption

Quick Details

Type:: Paper Embossing Machine

Production Capacity:: 1200mm/s

Max. workable width:: 1500mm/s

Place of Origin:: Fujian, China

Brand Name:: RUICAI

Voltage:: AC380V

Dimension(L*W*H):: 1275*1080*1050mm

Weight:: 150 kg

Marketing Type:: Automatic intelligent machinery

Product name:: Pattern Cutting Plotter Machine

Function:: Cutting Cardboard

Cutting materials:: Multiple Materials

Usage:: Industrial Usage

Certification:: CE Standard

Power Supply:: 7.5KW

Rated voltage:: AC220±10%

Cutting speed:: 1200mm/s

Cutting thickness:: 2mm

Fixing type:: Adhesive adsorption

Automatic Cutting Machine --- 5 Advantages

1. With vibrating knife-cutting technology, no need to hit the tool die, saving the production and development process of the tool die manufacturing, management, storage costs, and time. Completely bid farewell to the traditional manual die-cutting process, completely break through the bottleneck of enterprises' dependence on skilled workers, and take the lead in entering the era of digital die-free processing.

2. Multi-functional cutters, highly integrated multiple groups of processing tools, can be interactive cutting, punching, and marking in one work unit, to achieve one-stop operation.

3. The completion of high difficulty, complex style, greatly expand the design space of designers, and create new styles that can not be imitated by hand.

4. The powerful discharge and calculation system can automatically discharge and calculate materials accurately, to calculate the cost and accurately control the material distribution.

5. To achieve timely modification of the template, save the time of developing the sample, to adapt to the rapid and changing market demand.

FEATURES AT A GLANCE

Standard Collocation

1. electric oscillating tool

2. dragging tool

3. creasing tool

4. pen

5. customized language touch screen panel

6. infrared induction safety guard

LCD Touch Screen Panel

Ethernet Transport

Integrated Board

PRODUCT SPECIFICATIONS

Item No.	RX-0906/ RX-1209
Overall size(mm)	127510801050mm/ 158013701050 mm
Table dimensions	900600mm/ 1200900mm
Max. translational speed	1200 mm/s
Max. cutting speed	1200mm/s (Different speed settings depending on the material)
Repeated accuracy	± 0.05 mm
Paper thickness	≤ 2 mm (based on different materials)
Interface	Ethernet port
Command system	HP-GL
Rated voltage/power	220V ± 10%, 50 HZ, 1.5KW
Fixing type	Adhesive adsorption/ Vacuum adsorption/ Electrostatic adsorption
Driveline	Stepper motor
CNC panel	Customized language touch screen
Tools	Pen, Oil pen, ballpoint pen, tungsten steel knife, ect.
Cutting material	Kraft paper, white cardboard, MG wrapping paper, drawing paper, PVC cardboard, rubber sheet, etc.
Working method	Computer operation and cutting machine simultaneously, quickly complete data transmission
Working environment	10-35 degrees Celsius

PRODUCT CONFIGURATION

Cutter

Multiple tool combinations, equipped with an intelligent prop interchange system, cutting different materials to achieve different tasks, multiple cutter tools work individually or in concert. Powerful function, fast running speed, high machining accuracy

Servo motors

Servo motors comply with European CE certificate, works stably and reliably, high precision cutting is guaranteed

Linear guide and gear rail

Imported linear guide and gear rail, ensure high-speed, high precision cutting and improve work efficiency

Linear guide and gear rail

Imported linear guide and gear rail, ensure high-speed, high precision cutting and improve work efficiency

Structure

The whole machine adopts a welded frame body with high-temperature treatment, ensuring a stable operation of the equipment, high precision cutting and long service life without deformation.

Aluminum vac-sorb table

A whole honeycomb structure of aluminum vacuum adsorption table, with a high-power blower, makes the adsorption table smoother, and super durable without deformation

Safety guard

Highly sensitive collision avoidance system and red light braking system. When the machine cuts at high speed, it can effectively protect the safety of the operator.

CUTTING TOOLS

CUTTING CASE
