Quick Details
-
Brand Name:
-
MT
-
Model Number:
-
mt-2200
-
Type:
-
Portable Digital Video vagina Colposcope Equipment
-
Power Supply:
-
AC220V 50Hz/110v 60Hz
-
Working Distance:
-
200-400mm
-
Software Operating Environment:
-
WINXP/WIN7 32bit
-
Effective pixels:
-
800,000
-
Brand:
-
MT
-
Camera brand:
-
1/4 Sony CCD
-
Model:
-
MT-2200
-
Application:
-
olposcope Video Digital Colposcope Optical Colposcope Digital Video
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
China
-
Brand Name:
-
MT
-
Model Number:
-
mt-2200
-
Type:
-
Portable Digital Video vagina Colposcope Equipment
-
Power Supply:
-
AC220V 50Hz/110v 60Hz
-
Working Distance:
-
200-400mm
-
Software Operating Environment:
-
WINXP/WIN7 32bit
-
Effective pixels:
-
800,000
-
Brand:
-
MT
-
Camera brand:
-
1/4 Sony CCD
-
Model:
-
MT-2200
-
Application:
-
olposcope Video Digital Colposcope Optical Colposcope Digital Video
Specification
item
|
value
|
Place of Origin
|
China
|
Brand Name
|
MT
|
Model Number
|
mt-2200
|
Power Source
|
Electricity
|
Warranty
|
1 Year
|
After-sale Service
|
Free spare parts
|
Material
|
Metal, Plastic, Steel
|
Shelf Life
|
1years
|
Quality Certification
|
CCC
|
Instrument classification
|
Class I
|
Safety standard
|
EN 149 -2001+A1-2009
|
Type
|
Portable Digital Video vagina Colposcope Equipment
|
Power Supply
|
AC220V 50Hz/110v 60Hz
|
Working Distance
|
200-400mm
|
Software Operating Environment
|
WINXP/WIN7 32bit
|
Effective pixels
|
800,000
|
Brand
|
MT
|
Camera brand
|
1/4 Sony CCD
|
Model
|
MT-2200
|
Warranty
|
12 Months / Repair Service
|
Application
|
olposcope Video Digital Colposcope Optical Colposcope Digital Video
|

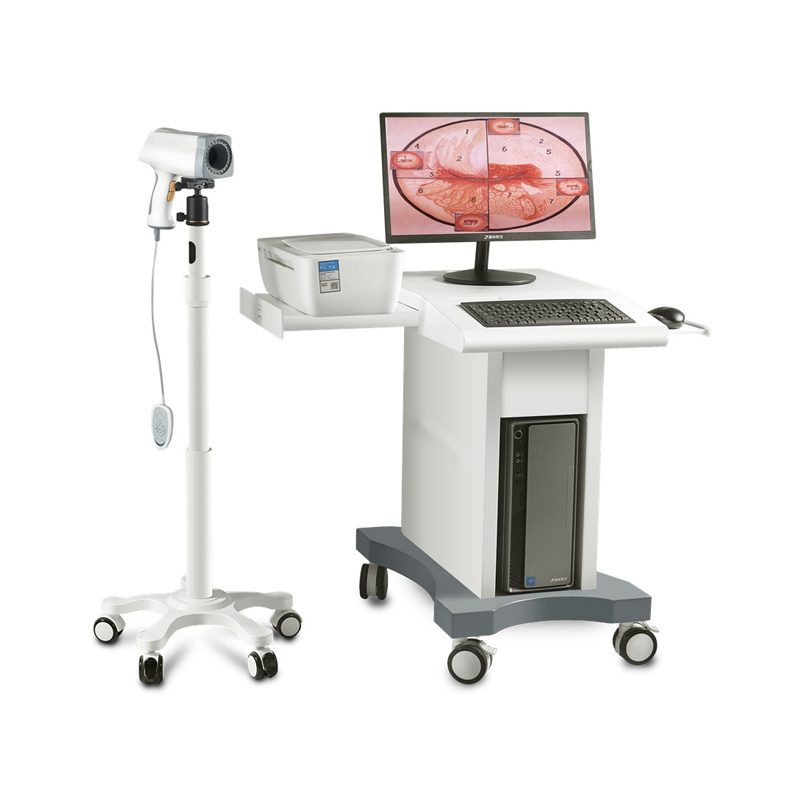

Digital Colposcope Sony Overview
Digital electronic colposcope is the latest high-tech product that applies electronic digital imaging technology to gynecological examination. Compared with traditional colposcope, it eliminates the eyepiece, breaks the limitations of optical colposcope, and allows doctors to identify on the monitor screen. Magnified high-power microscopic lesions, and can freeze, collect, store, analyze and print images. It integrates medical reports and observation and treatment records of surgical gynecological examinations, which helps to improve the diagnosis of erosion, precancerous lesions, cancer and other diseases. accuracy, especially for the diagnosis of precancerous lesions
important clinical value:
The system can also be equipped with a TFT display and digital imaging system, which can be displayed simultaneously.
Portable digital colposcope/Sony digital video colposcope
Image Sensor
|
|
1/4 inch Sony CCD digital colposcope
|
|
|
|||
Effective Pixels
|
|
800,000 pixels
|
|
|
|||
light course
|
|
24 LEDs
|
|
|
|||
horizontal resolution
|
|
700TV
|
|
|
|||
depth of field
|
|
4.1mm~73.8mm
|
|
|
|||
Certificate
|
|
CE, USA 510K, ISO
|
|
|
|||
working distance
|
|
200~400mm
|
|
|
|||
color saturation
|
|
90%
|
|
|
|||
focus mode
|
|
focus mode
|
|
|
|||
Light source life
|
|
≥ 50000 hours
|
|
|
|||
optical zoom
|
|
18 times
|
|
|
camera video colposcope .
1/4-inch Sony CCD, 0.8 million effective pixels, 18x optical zoom, horizontal resolution 70 lines.It adopts 24 groups of energy-saving and environmentally friendly white light-emitting diode light sources, which emit light uniformly for a long time and have a high color rendering index. The heat-free handheld zoom button facilitates doctors to observe tissue pathological changes in real time.
control handle
It adopts palm handle design and humanized operation panel.The oval layout of silicone buttons can be used to achieve zoom, focus, imaging mode, acetate timing, image marking, brightness adjustment and other functions by hand.
Three-section vertical bracket
New vertical stand, flexible and simple to operate, light weight.The lens can be adjusted up and down.Three-section design for easy disassembly and patient access.
Powerful software management
It integrates image acquisition, image processing, clinical diagnosis, report editing, and query statistics. The USB disk is automatically installed and the multi-user operation mode is convenient for different doctors to use.Supports the above WIN7 operating systems, including Chinese, English, Spanish, Russian, Vietnamese, Turkish, etc.
Details Images
Series products
Product application
It is the perfect colposcopy machine for the OBGYN office.These high-quality digital video colposcopes will reduce examination time by up to 50% while enabling users to store and record information for future reference.Stop painting what you see.
Can be used with organizations that combat sexual assault
These facilities conduct exams and collect evidence to help defend victims of these brutal crimes.
Used in many teaching hospitals and conferences to educate new generations of gynecologists.Because there are no dials and knobs to manually focus the lens like a traditional optical colposcope, training with a digital video colposcope is completed 3 - 5 times faster.Images can be streamed to a large screen or computer while educating a room full of residents or clinicians.
Telemedicine is the wave of the future.Kernel's colposcopy equipment has been integrated with numerous telemedicine solutions to provide convenient and cost-effective care.Partners who provide outreach programs to rural areas or countries where women's health care facilities or equipment are not readily available.Our hope is to create a world where health care is easily accessible and affordable for all.
