Quick Details
-
Dimension(L*W*H):
-
2800X900X1220
-
Weight:
-
1900 KG
-
Product name:
-
Magnetic separator
-
Application:
-
Magnetic material separator
-
Installation:
-
Technical Guidance
-
Capacity:
-
100-500kg/h
-
Material:
-
Stainless Steel
-
Feature:
-
Eco-Friendly
-
Feeding size:
-
<2mm
-
After sale service:
-
Technical support
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
WKD
-
Voltage:
-
380V, 380V
-
Dimension(L*W*H):
-
2800X900X1220
-
Weight:
-
1900 KG
-
Product name:
-
Magnetic separator
-
Application:
-
Magnetic material separator
-
Installation:
-
Technical Guidance
-
Capacity:
-
100-500kg/h
-
Material:
-
Stainless Steel
-
Feature:
-
Eco-Friendly
-
Feeding size:
-
<2mm
-
After sale service:
-
Technical support
Product Overview

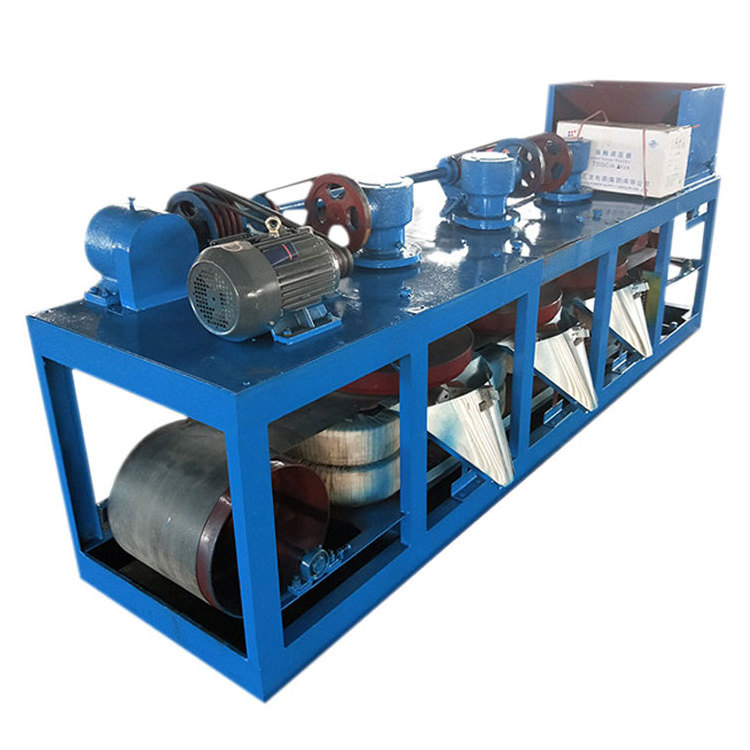

Three Discs Magnetic Separator
Three Disc Belt Separator /Belt Magnetic Separator Main device comprised feeding unit, weak magnetic roller, drive part, material
conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components
of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy
installation and convenient operation and maintenance.
Three-disc Electromagnetic Separator is a Dry Intensified Magnetic Separator/High Intensity Magnetic Separator, applicable for
separations of tin, tungsten, tantalum-niobium, ilmenite, rare earth ore, chromite ores, limonite, columbium, zircon,
rutile,monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in
nonmetallic minerals.
It can separate 4 different minerals in one time, the concentrate grade can reach 60%-70% by using this separator.
Working Principle
Three Disc Belt Separator /Belt Magnetic Separator Main device comprised feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.
Advantages
1. Very high magnetic field intensity 16000gauss - 20000gauss
2. This separator can separate four different minerals in one time.
3. This separator can get the final concentrate of three to four mineral.
4. Ta & Nb grade can reach 60% by using this separator.
5. it's easy to install, adjust, and operate.
6. The magnetic intensity of each disc is adjustable from 1000-20000 gauss, could be used for other mineral concentration.
PRODUCT SPECIFICATIONS
|
Model
|
3PC-500
|
3PC-600
|
|
Magnetic intensity
|
1000Gs-17000Gs
|
1000Gs-18000Gs
|
|
Number of disk
|
3pcs
|
3pcs
|
|
Diameter of disk
|
500mm
|
600mm
|
|
Rotation Speed of magnetic disk
|
25-40 r/min
|
22-38 r/min
|
|
Power supply
|
380V
|
380V
|
|
Exciting coil
|
4 units
|
4 units
|
|
Matching motor
|
0.75kw
|
1.5kw
|
|
Exciting power
|
1.5kw
|
1.6kw
|
|
Coil temperature
|
65 °C
|
65 °C
|
|
Rated current of coil
|
1.1-1.8 A
|
1.2-1.9 A
|
|
Duty rating
|
Continuous
|
Continuous
|
|
Feed width
|
210mm
|
300mm
|
|
Feed size
|
≤2 mm
|
≤2 mm
|
|
Capacity
|
100-500 kg/h
|
120-800 kg/h
|
|
Overall Size
|
280cm×80cm×122cm
|
320cm×87cm×116cm
|
|
Weight
|
1900 kgs
|
2200 kgs
|
