Equipped with a lateral shock-absorbing spring to effectively avoid tooth breakage
- Product Details
- {{item.text}}
Quick Details
-
Use:
-
Agriculture
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LERMDA
-
Product name:
-
Finger Wheel Hay Rake
-
Color:
-
Customer Required
-
Raking width(mm):
-
3000-6500
-
No. of finger plate:
-
3-12
-
Weight:
-
265-900KG
-
Linkage:
-
3 point mounted/hydraulic trailed
Quick Details
-
Weight (KG):
-
500
-
Core Components:
-
Spring teeth
-
Type:
-
Farm Equipment
-
Use:
-
Agriculture
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LERMDA
-
Product name:
-
Finger Wheel Hay Rake
-
Color:
-
Customer Required
-
Raking width(mm):
-
3000-6500
-
No. of finger plate:
-
3-12
-
Weight:
-
265-900KG
-
Linkage:
-
3 point mounted/hydraulic trailed

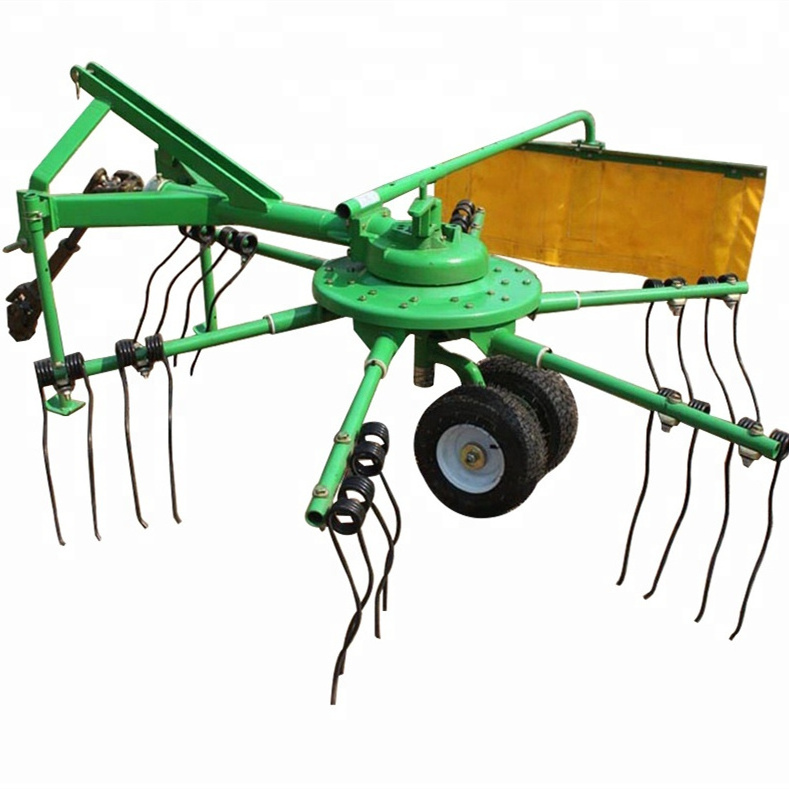

Finger Wheel Hay Rake
Main Feature
1) Thickened raw materials, longer service life
2) Use grade 8.8 high-strength low-carbon alloy steel bolts
----------Product Introduction---------
1.S
hock spring
2.
Double caliper fixed
-
The bearing beam double calipers are fixed separately, more stable and firm
3.T
eeth
Encrypted disc, 80 teeth.
Hardened by heat treatment.
4.S
tronger material
-100*100*80mm beam, the weight is heavier than the same type of products on the market
5.W
idth adjustable
- The working width of the rake can be changed by adjusting the support rod
|
MODEL
|
9LM-3.0
|
9LZ-3.0
|
9LZ-4.2
|
9LZ-5.5
|
9LZ-6.5
|
9LZ-7.5
|
|||||
|
Overall dimension(mm)
|
2500*3000*1500
|
3500*3000*1500
|
5200*4200*1500
|
60200*5500*1500
|
7000*6500*1500
|
8000*7500*1500
|
|||||
|
Working width(mm)
|
3000
|
3000
|
4200
|
5500
|
6500
|
7500
|
|||||
|
No of the disc(pcs)
|
4
|
4
|
6
|
8
|
10
|
12
|
|||||
|
Working Speed(km/h)
|
10-15
|
|
|
|
|
|
|||||
|
Matched Power(hp)
|
13-40
|
Above 30
|
|
|
|
|
|||||
|
Weight(KG)
|
265
|
375
|
680
|
820
|
900
|
1000
|
|||||
|
Linkage
|
3 point mounted
|
|
|
|
|
|
|||||
---------Customized Color &ODM/OEM--------
We absolutely accept ODM/OEM order because we are factory you can require paint color for the machinery.
