Quick Details
-
Engine Brand:
-
top brand
-
Travel Speed:
-
0~7.5 km/h
-
Grade Ability:
-
45 %
-
Place of Origin:
-
Hunan,China
-
Brand Name:
-
SINOMADA
-
Dimension(L*W*H):
-
/ mm
-
Drum diameter:
-
2130 mm
-
Marketing Type:
-
New Product 2021
-
Vibration Frequency:
-
29/35 Hz
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
147 kw
-
Weight:
-
22 ton
-
Engine Brand:
-
top brand
-
Travel Speed:
-
0~7.5 km/h
-
Grade Ability:
-
45 %
-
Place of Origin:
-
Hunan,China
-
Brand Name:
-
SINOMADA
-
Dimension(L*W*H):
-
/ mm
-
Drum diameter:
-
2130 mm
-
Marketing Type:
-
New Product 2021
-
Vibration Frequency:
-
29/35 Hz

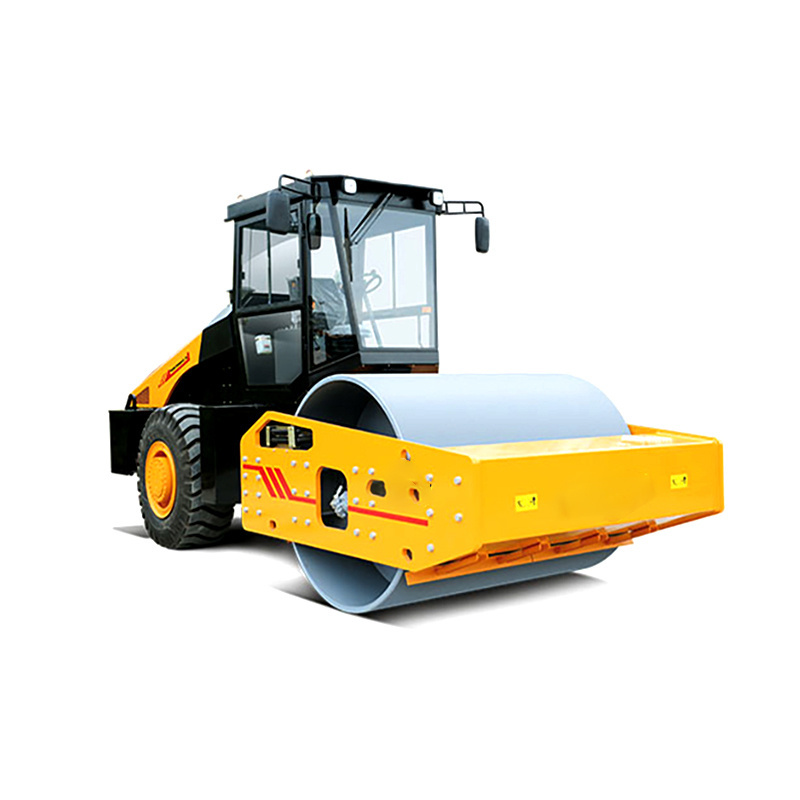

SINOMADA Asphalt Compact Single Drum Road Roller 22 ton SSR220C-8H
contact pearl to learn more
whatsapp/wechat: +86 17369285626
e-mail: pearl@ sinomada.com
Products Overview
High Efficiency
10% greater excitation force than other products in the same category resulting in 16.7% greater production.
Extended Life Time
The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
The engine air filter is raised and the air is filtered twice to protect the engine.
The hydraulic system contains three stage filtration.
10% greater excitation force than other products in the same category resulting in 16.7% greater production.
Extended Life Time
The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
The engine air filter is raised and the air is filtered twice to protect the engine.
The hydraulic system contains three stage filtration.
|
Type
|
SSR150C-8
|
SSR180C-8
|
SSR200C-8H
|
SSR220C-8H
|
SSR260C-8
|
SSR80C-10
|
||||||
|
Dimension
|
6173*2318*3227
|
6497*2318*3330
|
6497*2318*3330
|
6497*2318*3330
|
7060*2450*3330
|
5467*1828*3064
|
||||||
|
Compaction Mechanism
|
|
|
|
|
|
|
||||||
|
Drum Width
|
2130mm
|
2130mm
|
2130mm
|
2130mm
|
2170mm
|
1680mm
|
||||||
|
Excitation Force
|
300/210kN
|
380/275kN
|
380/275kN
|
410/300kN
|
420/310kN
|
140/126kN
|
||||||
|
Nominal Amplitude
|
1.8/0.9mm
|
2.0/1.0mm
|
2.0/1.0mm
|
2.0/1.0mm
|
2.05/1.03mm
|
1.6/1.2mm
|
||||||
|
Vibration Frequency
|
32/36Hz
|
29/35Hz
|
29/35Hz
|
29/35Hz
|
28/32Hz
|
32/36Hz
|
||||||
|
Drum Static Linear Load
|
442N/cm
|
582N/cm
|
638N/cm
|
678N/cm
|
788N/cm
|
262N/cm
|
||||||
|
Engine
|
|
|
|
|
|
|
||||||
|
Emission
|
-
|
-
|
CHINA Ⅲ
|
CHINA Ⅲ
|
CHINA Ⅲ
|
NR3
|
||||||
|
Engine Model
|
QSB4.5
|
QSB5.9
|
WP6G200E331
|
WP6G200E331
|
D07S3-245E0
|
QSB3.9-C125
|
||||||
|
Rated Power
|
119kW
|
133kW
|
147kW
|
147kW
|
180kW
|
93kW
|
||||||
|
Maneuver Ability
|
|
|
|
|
|
|
||||||
|
Theoretical Gradeability Vibratory
|
45%
|
45%
|
45%
|
45%
|
50%
|
50/55%
|
||||||
|
Travel Speed
|
0~8.5/0~12.5km/h
|
0~8.5/0~12.5km/h
|
0~8.5/0~12.5km/h
|
0~8.5/0~12.5km/h
|
0~8.5/0~12.5km/h
|
|
||||||
|
Ground Clearance
|
480mm
|
480mm
|
480mm
|
480mm
|
480mm
|
|
||||||
|
Weight and Load
|
|
|
|
|
|
|
||||||
|
Operating Weight
|
10T
|
10T
|
12T
|
12T
|
12T
|
|
||||||
|
Weight at Drum
|
5.7T
|
5.7T
|
7T
|
7T
|
7T
|
|
||||||
|
Weight at Rear Axle
|
4.3T
|
4.3T
|
5T
|
5T
|
5T
|
|
||||||
