Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
chengyin
-
Model Number:
-
2020101204
-
Model Number::
-
Furniture
-
Usage::
-
Furniture
-
Name:
-
Gas spring/Gas struts
-
Surface treatment::
-
Paint Spraying
-
length:
-
customized
Quick Details
-
Style:
-
Cylinder
-
Material:
-
Steel
-
Usage:
-
Furniture
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
chengyin
-
Model Number:
-
2020101204
-
Model Number::
-
Furniture
-
Usage::
-
Furniture
-
Name:
-
Gas spring/Gas struts
-
Surface treatment::
-
Paint Spraying
-
length:
-
customized

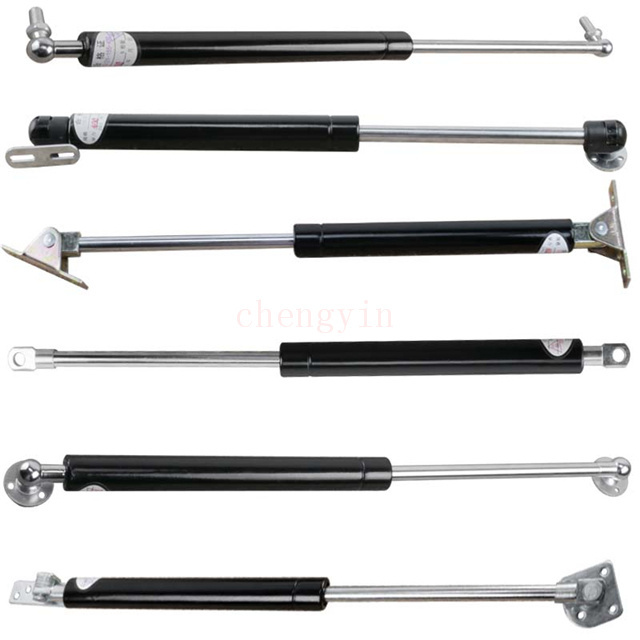

Gas spring
Product features: free type gas spring, also known as compressed gas spring and support rod, is a kind of product that seals high-pressure gas in cylinder body and produces elastic function through piston. The product does not need external power when working, and its lifting force is constant. It is widely used in furniture, medical equipment, mechanical equipment, office desk and chair, automobile back door and other fields. It has the advantages of long life, easy installation and control, no maintenance and so on.
Lockable Gas Spring
Product features: controllable gas spring, also known as angle regulator, controls the stroke by opening and closing the valve, so that it can be locked at any position in the whole stroke. It is widely used in vehicle seat, office seat, lifting computer table, furniture lifting table and medical equipment. It has the advantages of convenient operation, stable operation, no maintenance and long service life.
Gas spring size range
According to your requirements, there are steel and stainless steel materials to choose from.
the length of air spring can be customized from 120mm to 1800mm. The outer diameter of cylinder is 12mm, 15mm, 18mm, 22mm, 23mm, 27mm, 28mm, 32mm, and the corresponding piston rod diameter is 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm and 18mm. According to your use mode, you can choose different joints for installation. According to the use requirements, you can make different effects, such as normal pop-up, slow pop-up, quick pop-up, slow drop, stop at any position, etc. Can choose to add dust jacket or self-locking safety sleeve. Meet your different needs!
Lockable Gas Spring size range
According to your requirements, there are steel and stainless steel materials to choose from.
the lockable gas spring length of 200 MM-1000 mm can be customized. The cylinder outer diameter is 22mm, 23mm, 27mm, 28mm, and the corresponding piston rod diameter is 10mm and 12mm. According to your use mode, you can choose different joints for installation. According to the use requirements, you can make different effects, such as normal pop-up, slow pop-up, quick pop-up, slow drop, stop at any position, etc. You can choose to add dust jacket or safety sleeve. Meet your different needs!
Product Description
Specification
|
Name
|
Gas Spring Gas Struts for Different Applications
|
|
Use
|
Nursing bed, first aid bed, crib, bedside table, treadmill, woodworking machinery, equipment up door, toolbox cabinet, office
furniture, invisible bed, storage cabinet, car trunk, flying wing door, billboard, billboard, light box, display car, forklift, barber chair, boss chair, lifting computer table, LCD bracket, yacht, tapping machine, packaging machinery, shelf material Frame, skylight, scissor door, food machinery, engine cover, agricultural machinery, centrifuge, etc |
|
Material
|
steel/ss304
|
|
Color
|
silver/black/others
|
|
Connector
|
ball connector/metal eye/clevis and so on
|
|
Advantage
|
1.pass 180,000 times fatigue times
|
|
|
2.we can supply samples for free
|
|
|
3.Competivite price
|
|
|
4.Fast delivery time:1000 pcs 3 days
|
|
|
The size can be made according the customer requirment.
|
