Quick Details
-
Model Number:
-
RS-5W-P
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
different types
-
Solar Panel cell:
-
156*156
-
Solar Panel number of cell:
-
18pcs
-
Weight:
-
0.67
-
Maximum system voltage:
-
1000V(IEC)/600V(UL)
-
Solar Panel efficiency:
-
above 17.5%
-
Solar Panel colour:
-
blue, dark bule
-
photovoltaic panel:
-
CHINA manufacturer photovoltaic panel
-
Certificate:
-
CE/TUV/ISO
Quick Details
-
Panel Efficiency:
-
300W
-
Warranty:
-
25
-
Brand Name:
-
RESUN
-
Model Number:
-
RS-5W-P
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
different types
-
Solar Panel cell:
-
156*156
-
Solar Panel number of cell:
-
18pcs
-
Weight:
-
0.67
-
Maximum system voltage:
-
1000V(IEC)/600V(UL)
-
Solar Panel efficiency:
-
above 17.5%
-
Solar Panel colour:
-
blue, dark bule
-
photovoltaic panel:
-
CHINA manufacturer photovoltaic panel
-
Certificate:
-
CE/TUV/ISO

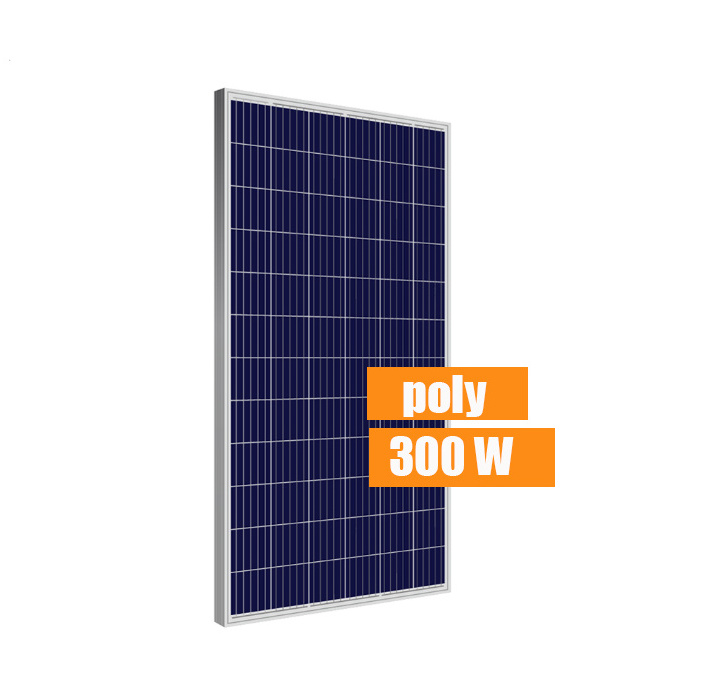

photovoltaic panel
1.High module conversion efficency(up to 15.2%)
2.Nominal maximum power(Pmax): 305W
3.Certification: CE, TUV.
photovoltaic panel
1.STC: lrradiance 1000W/m 2 ,Module temperature 25,AM=1.5
2.Nominal 24V DC standard output.
3.High efficiency, good quality.
4.High transmission tempered glass.
5.TPT imported from Krempel, Germany
6.Rugged design to withstands high wind pressure and snow load, easy installation.
7.Aesthetic appearance.
8.Design to meet unique demand of customers.
9.25 years module output warranty.
10.Built-in diode prevents reverse charging.
Main parameters
| STC | RS6S-280P | RS6S-285P | RS6S-290P | RS6S-295P | RS6S-300P | RS6S-305P | |
| Electric Data | |||||||
| Nominal maximum power(Pmax) | 280W | 285W | 290W | 295W | 300W | 305W | |
| Optimum operating voltage (Vmp) | 35.6V | 35.8V | 35.9V | 36.0V | 36.1V | 37.7V | |
| Optimum operating current (Imp) | 7.86A | 7.96A | 8.08A | 8.19A | 8.30A | 8.10A | |
| Open-circuit voltage (Voc ) | 44.2A | 44.3A | 44.4A | 44.5A | 44.6A | 45.3A | |
| Short-circuit current (Isc ) | 8.42A | 8.53A | 8.64A | 8.76A | 8.87A | 8.55A | |
| Power tolerance | 0~+5W | ||||||
| Maximum system voltage | 1000V(IEC)/600V(UL) | ||||||
| Maximum system fuse rating | 15A | ||||||
| NOTC | 45 | ||||||
| Temperature coefficient Pmax | -0.43% | ||||||
| Temperature coefficient Voc | -0.34% | ||||||
| Temperature coefficient Ist | 0.065% | ||||||
| Mechanical Data | |||||||
| Cell type | Poly-crystalline 156*156mm,2 or 3 Busbars | ||||||
| Cell Arrangement | 72(6*12) | ||||||
| Dimensions | 1954*992*40mm(76.93*39.05*1.57in) | ||||||
| Weight | 22kg(48.5lbs) | ||||||
Pictures show
Production flow
Certification
Our exhibition photos
Solar panel other information:
|
PAYMENT TERMS |
|
T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time. |
|
|
|
SHIPPING |
|
Material in stock can be produce (procedure 5-20 days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer. |
|
|
|
ABOUT US |
|
We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China. |
|
|
|
IMPORTANT INFORMATION |
|
1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications. |
|
2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance. |
