Quick Details
-
Brand Name:
-
WZ-LAN
-
Model Number:
-
WL-S402F
-
Place of Origin:
-
guangdong
-
Product Name:
-
6 Port PoE Switch
-
Device Type:
-
Switch - 6 Ports - Unmanaged
-
Number of Ports:
-
6 x 100Mbps RJ45 ports
-
PoE Ports:
-
4*10/100Mbps POE Ports
-
MAC Address Table:
-
1K
-
Standard Protocol:
-
IEEE802.3 IEEE802.3u IEEE802.3x
-
Dimensions (H x W x D):
-
130*120*36mm
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6 Gbps
-
Brand Name:
-
WZ-LAN
-
Model Number:
-
WL-S402F
-
Place of Origin:
-
guangdong
-
Product Name:
-
6 Port PoE Switch
-
Device Type:
-
Switch - 6 Ports - Unmanaged
-
Number of Ports:
-
6 x 100Mbps RJ45 ports
-
PoE Ports:
-
4*10/100Mbps POE Ports
-
MAC Address Table:
-
1K
-
Standard Protocol:
-
IEEE802.3 IEEE802.3u IEEE802.3x
-
Dimensions (H x W x D):
-
130*120*36mm
Product Description

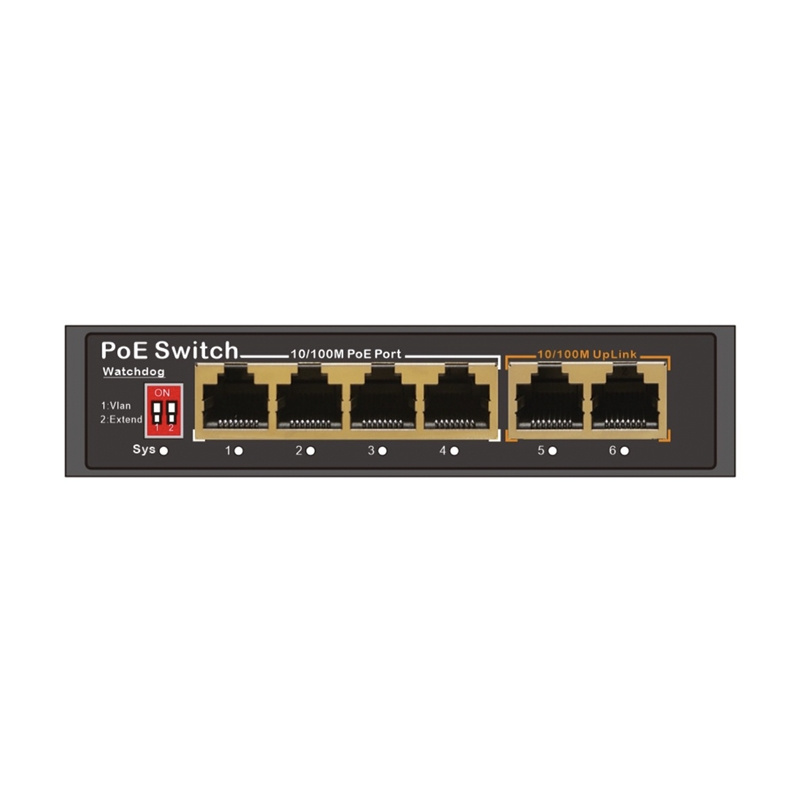

The WL
-S402F
is a non managed industrial PoE switch. it has 4*10/100 PoE ports and 2*100 RJ45 ports , port 1-4 can support IEEE 802.3af/at standard PoE power supply,
The power of the PoE port reaches 30W, and the PoE port can automatically detect and identify powered devices that meet the IEEE 802.3af/at standard and provide power to them through network cables
. Non-POE devices can be intelligently detected without power supply and only transmit data.
PoE terminal devices such as IP phones, network cameras, wireless APs, visual intercoms, and smart homes can be powered through network cables, making it suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form an economical and efficient network.
PoE technology (Power over Ethernet) is the Power over Ethernet technology, which means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this equipment. These devices receiving DC power supply are called power receiving equipment.
1）4 100M PoE ports + 2 100M uplink ports
2）Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
3）Ethernet port supports 10/100 self-adaptation
4）Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
5）Use store-and-forward switching mechanism
6）Compliant with IEEE 802.3af/at PoE power supply standard
7）Second gear intelligent dial switch (switch function can be customized):
* VLAN: Port isolation mode, 1-4 ports realize the isolation of the downlink ports of the monitoring network and intercommunicate with the uplink ports, effectively suppressing broadcast storms,Protect intranet security.
* Extend: The 10M long-distance mode is enabled on ports 1~4, and the PoE power supply and data transmission distance can be extended to 250 meters.
8）The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
9）Ports 1~4 support the PoE watchdog function. When the port communication fails, the PoE of the corresponding port will automatically restart, reducing on-site maintenance costs.
Product Feature
Hardware&software
|
Network protocol
|
IEEE802.3 IEEE802.3u IEEE802.3x
|
|
Number of Ports
|
4 10/100Base-TX POE ports (Data/Power)
2 10/100Base-TX uplink RJ45 ports (Data)
|
|
Network port characteristics
|
1-6 ports 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
|
|
Backplane Bandwidth
|
1.6 Gbps
|
|
Packet forwarding rate
|
0.89Mpps
|
|
Packet Buffer
|
768K
|
|
MAC Address Table
|
1K
|
|
Forwarding mode
|
Store-and-Forward
|
|
Network Media (Cable)
|
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter)
|
|
LED indicator light
|
Running indicator light: Sys (green);
Network indicator light: Link (green)
|
|
Function switch (customizable)
|
SW1: VLAN
|
|
|
SW2: Extend
|
|
PoE power supply standard
|
1-4 ports support IEEE802.3af/at standard PoE power supply
|
|
Power Pin Assignment
|
1/2(+)，3/6(-)
|
|
Power Consumption
|
48W
|
|
Overall Power Consumption
|
Standby power consumption: ＜ 3W
Full load power consumption: ＜ 48W
|
|
IP Grade
|
Port lightning protection: 4kV 10/700us
Protection level: IP30
|
|
Environment
|
Working temperature: -20~55 ° C Storage temperature: -40~75 ° C Working humidity: 10%~90%, non condensing Storage humidity:
5%~90%, non condensing |
|
Size
|
130*120*36mm
|
|
Net weight/Gross weight (Kg)
|
0.35Kg/0.55Kg
|
|
supply voltage
|
Power input voltage: AC 100~240V 50/60Hz
Power output power: 52V/0.92A
|
|
packing list
|
1 POE switch
1 AC power cord
1 product manual
1 warranty card and certificate of conformity
|
