Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
According to product design
-
Weight:
-
500 KG
-
Product name:
-
Film Milk Honey Water Alcohol Jam Concentrator Machine Evaporator
-
specification:
-
Customized products
-
Application:
-
food and chemical industry
-
Usage:
-
Concentration of liquid material
-
Material:
-
SS304/SS316L
-
Evaporation capaciyt(kg):
-
110
-
condensing area(m2:
-
4
-
Energy consumption(kg/h:
-
120
-
Vacuum(KPa:
-
60
Quick Details
-
Core Components:
-
According to product design
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIAOHAN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
According to product design
-
Weight:
-
500 KG
-
Product name:
-
Film Milk Honey Water Alcohol Jam Concentrator Machine Evaporator
-
specification:
-
Customized products
-
Application:
-
food and chemical industry
-
Usage:
-
Concentration of liquid material
-
Material:
-
SS304/SS316L
-
Evaporation capaciyt(kg):
-
110
-
condensing area(m2:
-
4
-
Energy consumption(kg/h:
-
120
-
Vacuum(KPa:
-
60

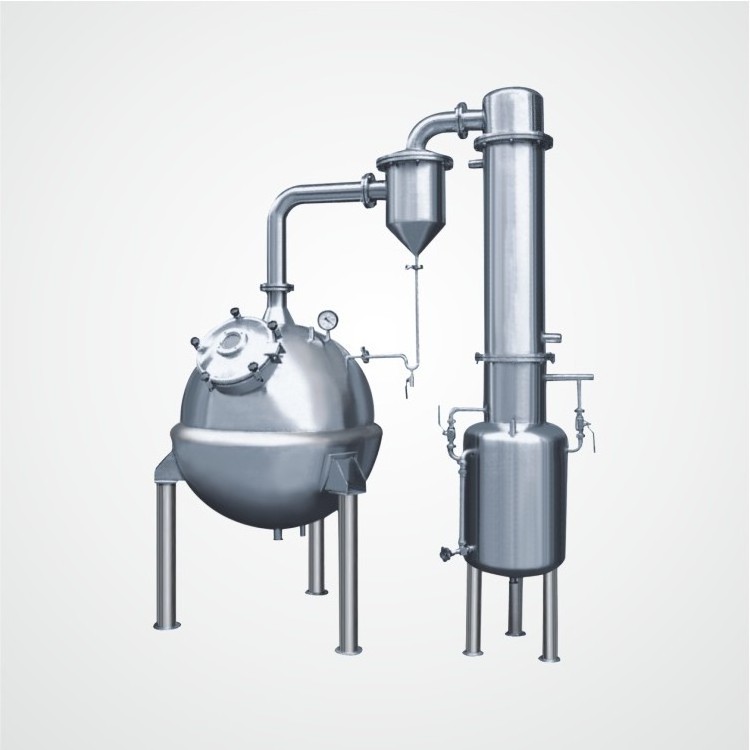

500L Falling Film Milk Honey Water Alcohol Jam Concentrator Machine Evaporator
The spherical concentration tank is mainly composed of the main body of the concentration tank, vapor-liquid separator, condenser and liquid receiving barrel. It can be used for the concentration, distillation and recovery of organic solvent of liquid materials in food, chemical and other industries. Due to the use of decompression concentration, the concentration time is short and the effective components of heat sensitive materials will not be damaged, The contact part between the equipment and materials is OCr18Ni9 stainless steel, which has good corrosion resistance, durability and meets the requirements of drug hygiene.
Technical parameter
|
Item/ Model |
500L |
1000L |
|
Vapor pressure(MPa |
0.15 |
0.15 |
|
Evaporation capacity(kg/h |
110 |
200 |
|
Heating area(m2 |
1.5 |
2.65 |
|
Condensing area(m2 |
4.0 |
8.0 |
|
Diameter of access hole(mm |
400 |
400 |
|
Energy consumption(kg/h |
120 |
195 |
|
Vacuum(kPa |
60 |
60 |
|
Vessel type |
First class |
|
Capacity and specifications can be customized according to customer needs.
