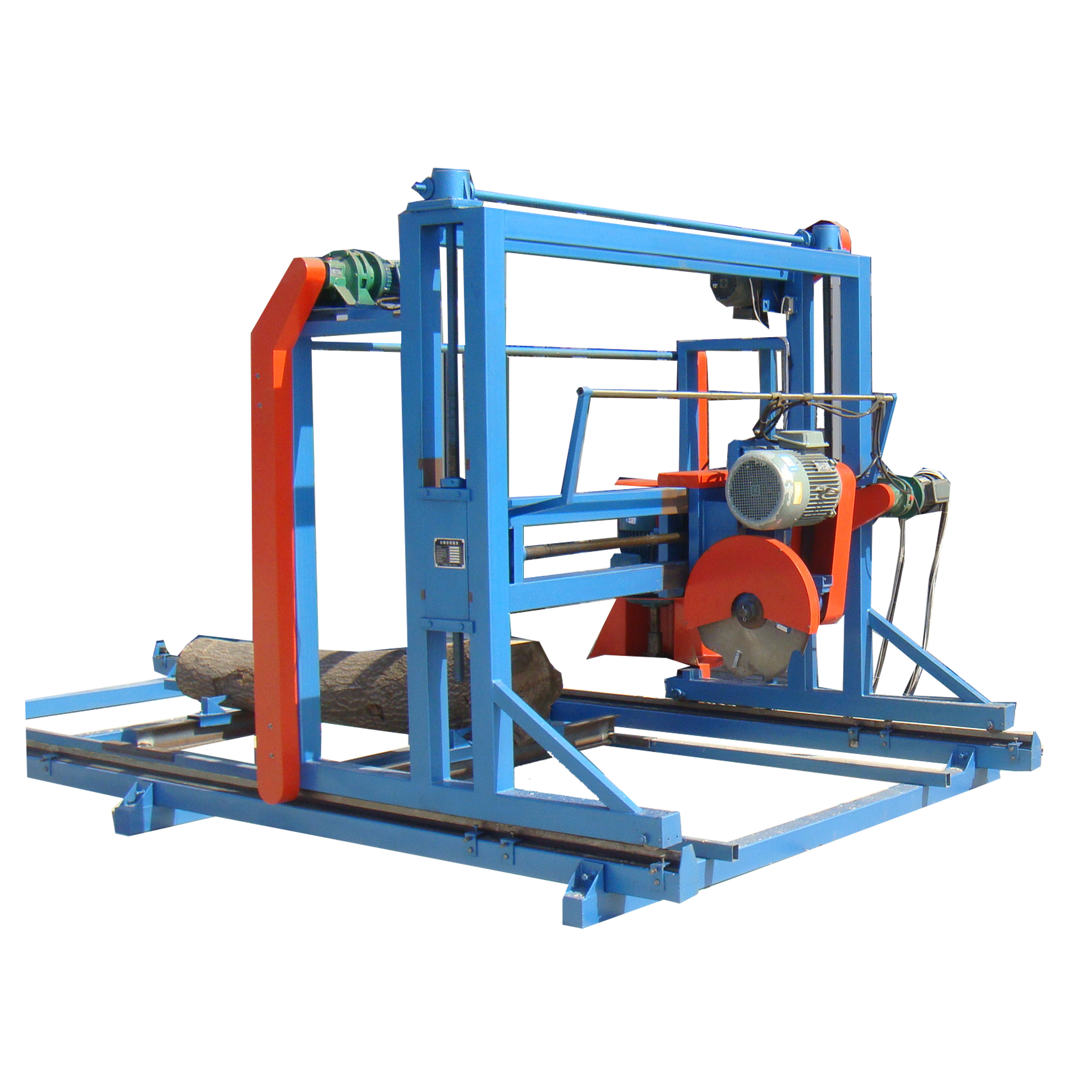

1) The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
2) The Blades enables cutting in both directions,which considerably increases the cutting capacity.
3) Quick and accurate electronic positioning guarantee invariable high productivity and safety.
4) The angle circular saw is a machine that:
5) Produces lumber with saw-cut dimension accuracy up to ± 1mm;
6) Produces lumber of excellent surface quality;
7) Results in very low operational costs;
8) Electric inverter crane,touch screen for length calculation and remote control.
|
Model |
DS700 |
DS1300 |
DS2000 |
|
Cut max. diameter (mm) |
700 |
1300 |
2000 |
|
Sawn sizes (mm) |
150*150 |
210 * 210 |
300*210 |
|
Saw Blade Diameter(mm) |
2*424mm |
2*546mm |
1*546mm;1*760mm |
|
Motor Power(KW) |
1.1KW*3;
|
1.1KW*3,
|
1.1KW*3; 15KW*1;
|
|
Cutting length(m) |
6 |
6 |
6 |
|
Machine weight(kg) |
1500 |
2000 |
3000 |
|
Wood Shaving Machine
|
|
|
|
Model
|
SHBH500-6
|
|
|
Max. processing wood length
|
1400mm
|
|
|
max. processing wood width
|
500mm
|
|
|
shaft quantity
|
6
|
|
|
blade quantity
|
24pc
|
|
|
bucket length
|
1400mm
|
|
|
motor power total
|
30.75kw
|
|
|
shaving depth
|
0.2 to 1mm
|
|
|
capacity
|
1500kgs/hour
|
|
|
weight
|
2200kgs
|
|
|
Wood Chipper
|
|
|
|
Model
|
SH216
|
|
|
Feeding Inlet（mm）
|
240*540
|
|
|
Max Processing Wood Diameter（mm)
|
240
|
|
|
Wood Chip Length（mm)
|
20-30
|
|
|
Production Capacity（T/H)
|
5-6
|
|
|
Wood Sliding Table Sawmill --- Computer Type
|
|
|
|
|||
|
Model
|
CT1500
|
CT2000
|
CT3000
|
|||
|
max. sawing wood diameter
|
400mm
|
400mm
|
400mm
|
|||
|
max. sawing wood length
|
1500mm
|
2000mm
|
3000mm
|
|||
|
saw blade diameter
|
500mm
|
500mm
|
500mm
|
|||
|
main motor power
|
7.5kw x 2sets
|
7.5kw x 2sets
|
7.5kw x 2sets
|
|||
|
wood fasten type
|
pneumatic
|
pneumatic
|
pneumatic
|
|||
|
feeding method
|
Inverter , feeding speed adjustable
|
|
|
|||
|
sawn sizes setting
|
Touching screen auto setworks
|
|
|
|||
|
Optional:
1) max. sawing wood diameter is upto 480mm
2) when cutting the hardwood, can increase motor power according to customer needs
|
|
|
|
|||
