Quick Details
-
Roll Ratio(Front/Back):
-
1:1.21
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
China
-
Brand Name:
-
Sainsar
-
Voltage:
-
A.C.380V 50HZ
-
Dimension(L*W*H):
-
3200*1350 *1500mm
-
Year:
-
2020
-
Power (kW):
-
22
-
Weight (KG):
-
4000 KG
-
Certification:
-
EAC
-
Name:
-
Rubber Mixing Mill
-
Application:
-
Rubber Mixing Compounding
-
Roller:
-
Chilled Alloy Cast Iron
-
Roller Diameter:
-
300mm
-
Mixed capacity:
-
25~50kg
-
Function:
-
Compound Mixing
-
Roller Length:
-
700mm
-
Working Linear Speed of Front Roll:
-
19.3M/Min
-
Driving Motor Power:
-
22KW
-
Gap adjustment:
-
Manual
Quick Details
-
Diameter of Roll(mm):
-
300 mm
-
Rotation Speed of Front Roll(rpm):
-
17 - 22
-
Length of Roll(mm):
-
700 mm
-
Roll Ratio(Front/Back):
-
1:1.21
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
China
-
Brand Name:
-
Sainsar
-
Voltage:
-
A.C.380V 50HZ
-
Dimension(L*W*H):
-
3200*1350 *1500mm
-
Year:
-
2020
-
Power (kW):
-
22
-
Weight (KG):
-
4000 KG
-
Certification:
-
EAC
-
Name:
-
Rubber Mixing Mill
-
Application:
-
Rubber Mixing Compounding
-
Roller:
-
Chilled Alloy Cast Iron
-
Roller Diameter:
-
300mm
-
Mixed capacity:
-
25~50kg
-
Function:
-
Compound Mixing
-
Roller Length:
-
700mm
-
Working Linear Speed of Front Roll:
-
19.3M/Min
-
Driving Motor Power:
-
22KW
-
Gap adjustment:
-
Manual

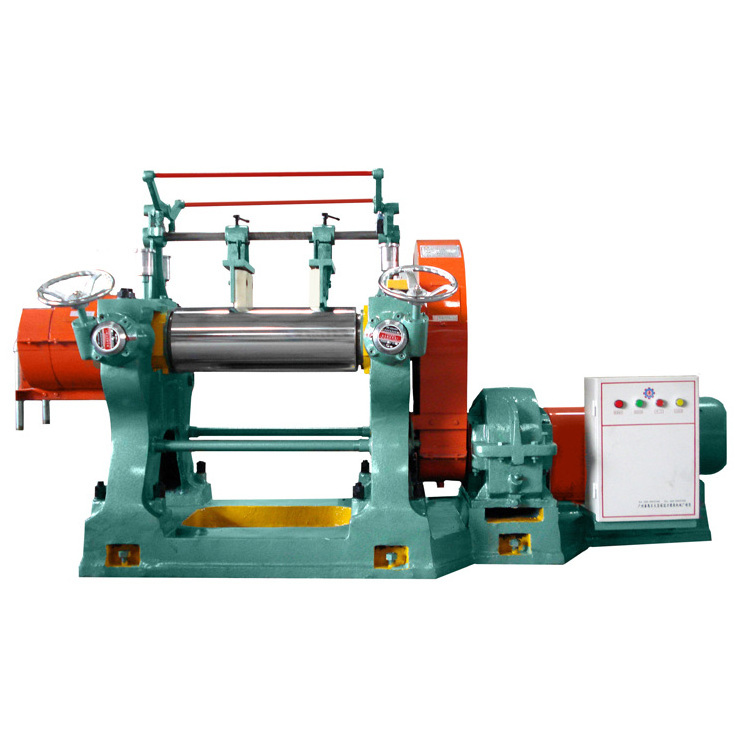

Dongguan Silicone Rubber Two Roll Mixing Mill Machine XK-300 12 inch for rubber compounding sheeting price
we supply silicone rubber machines with complete solutions including mixing mill, dispersion kneader, cutting machine, compression molding machine, injection molding machine, extrusion line, molds and raw material formulas.
Application: it is mainly used for various silicone rubber mixing, sheeting.
Capacity : 20-25KG/batch
Main specification :
Roller Diameter & Length : 300mm*700mm
Roller material : Alloy chilled cast iron, work surface depth of chilled10-24mm, with surface chrome plated.
Front roll linear speed : 12r/min
Maximum roller gap : 1-5 mm
Roller speed ratio : 1:1.2
Main motor power: 22 KW
Power supply : A.C. 380V, 3 phase, 50HZ
Motor speed: 980RPM
Roller regulating mode : manual adjusting
Safety device: equipped with emergency stop switch, mushroom button 2 pieces
Dimension : 3200*1350 *1500mm
Weight : approximately 4,000KG
