Quick Details
-
Memory Type:
-
DDR3
-
Chipset:
-
Intel Q67
-
Brand Name:
-
COMMELL
-
Place of Origin:
-
BJ.CN
Quick Details
-
Maximum Ram Capacity:
-
16GB
-
Application:
-
Server/Workstation
-
Form Factor:
-
Mini-ITX
-
Memory Type:
-
DDR3
-
Chipset:
-
Intel Q67
-
Brand Name:
-
COMMELL
-
Place of Origin:
-
BJ.CN
|
TEKET INNOVATION founded in year 2003 in Beijing, provides embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel and wireless input device). We also sell VIA / ASUS / ASRock / Gigabyte / MSI industrial motherboards, Intel NUC mini PC and laptop. |
|
Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard Intel,ASUS,Gigabyte,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply module, RAM and SSD support
Our main target customers are system integrators and equipment manufacturers.
|

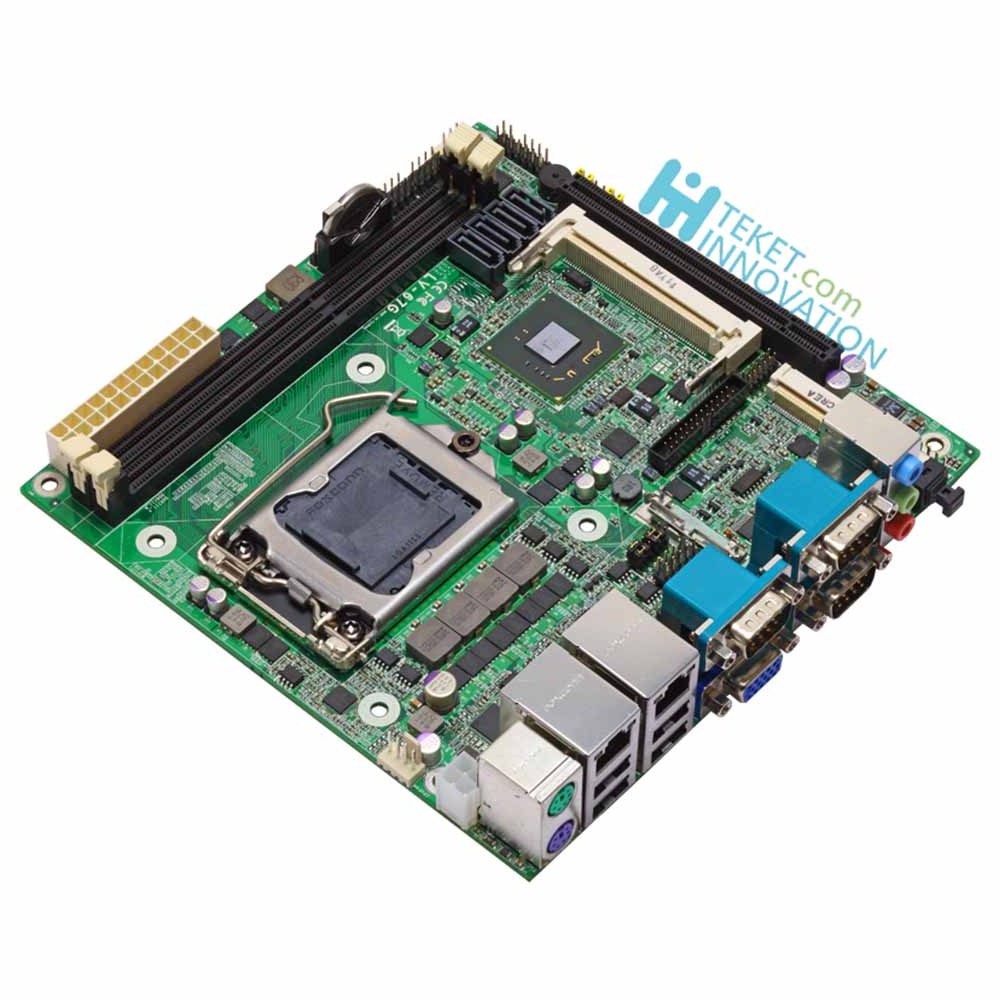

LV-67G
2nd generation Intel® Core™ i7 / i5 / i3, Pentium & Xeon Mini-ITX
2nd generation Intel® Core™ i7/i5/i3, Pentium & Xeon with Intel® Q67 Express chip
Onboard VGA & DVI, 16 GB DDR3, 2 x Giga LAN, 8 x USB 2.0, 4 x COM, HD Audio
4 x SATAII with RAID, GPIO, SPDIF, PCIe X16, Mini-PCIe & Mini-PCI socket
Overview
LV-67G is a Mini-ITX motherboard support Intel Sandy Bridge processor at LGA1155, Flexible extend slots including PCI-Express X16, Mini-PCI & Mini-PCIe socket. For the IO ports , there're 8 x USB 2.0, 4 x COM and GPIO interface, 2 x Giga LAN, Onboard VGA + DVI for Dual display solution .
This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.
Key Feature
CPU: 2nd generation Intel® Core™ i7/ i5/ i3, Pentium & Xeon desktop in the LGA1155
Memory: Two DDR3 1066/1333 DIMM up to 16 GB
Chipset: Intel® Q67 Express Chipset
Display Interface: Onboard VGA & DVI
LAN Interface: 2 x Intel® 82574L Giga LAN.
Serial ATA: Support 4 x SATA with RAID 0,1,5,10.
Audio: Intel® Q67 integrated with Realtek ALC888 High Definition Audio.
I/O ports: 3 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, Audio, SPDIF
Extended interface: 1 x PCI-Express X16 slot, 1 x Mini-PCIe & 1 x Mini-PCI sockets.
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
Specification
Form Factor
Mini-ITX Motherboard
Processor
Intel® Core™ i7 / i5 / i3, Pentium & Xeon Desktop processor
Package Type: FCLGA1155
Memory
2 x DDR3 1066/1333 DIMM up to 16 GB
Chipset
Intel® Q67 Express Chipset
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management
ACPI 1.0 compliant, supports power saving mode
Serial ATA Interface
Intel® Q67 chipset built-in 2 x Serial ATA II interface up to 300MB/s
2 x SATA3 interface up to 600MB/s. Total 4 x SATA interface
Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology
VGA Interface
Integrated Intel® HD graphic technology
DVI Interface Onboard 26-pin DVI interface
Audio Interface
Intel® integrated Q67 with Realtek ALC888 HD Audio
LAN Interface
2 x Intel® 82574L Gigabit Ethernet Controller
GPIO Interface
Onboard programmable 8-bit digital I/O interface
Extended Interface
1 x PCI-Express X16 slot, 1 x Mini-PCIe, 1 x Mini-PCI
Internal I/O Port
1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus,
1 x Audio, 1 x IrDA, 4 x USB2.0
External I/O Port
1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0,
1 x Audio, 3 x RS232, 1 x SPDIF
External Audio
Line-in, MIC-in, Line-out and optical SPDIF
Power Requirement
Standard 24-pin ATX power supply and P4 4-pin 12V.
( compatible with 20-pin ATX power supply )
Board Dimension
170mm x 170 mm (L x W)
Temperature
Operating within 0 ~ 60°C
Storage within -20 ~ 85°C
