Quick Details
-
Power:
-
1.5kw
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1480*800*980mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
5-48mm Good Price Fresh Meat Cube Dicer Machine
-
Material:
-
304 Stainless Steel
-
Type:
-
Meat Processing Machinery Horizontal Fresh Meat Slicer
-
Usage:
-
Fresh and frozen Meat Dicer
-
Application:
-
Fresh and frozen Meat Processing Equipment
-
Capacity:
-
800-1000 kg/H
-
max size:
-
15mm
-
feeding material:
-
onion,ginger, fruit, vegetable, meat
-
MOQ:
-
1
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hongle
-
Voltage:
-
220V/380V
-
Power:
-
1.5kw
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1480*800*980mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
5-48mm Good Price Fresh Meat Cube Dicer Machine
-
Material:
-
304 Stainless Steel
-
Type:
-
Meat Processing Machinery Horizontal Fresh Meat Slicer
-
Usage:
-
Fresh and frozen Meat Dicer
-
Application:
-
Fresh and frozen Meat Processing Equipment
-
Capacity:
-
800-1000 kg/H
-
max size:
-
15mm
-
feeding material:
-
onion,ginger, fruit, vegetable, meat
-
MOQ:
-
1
Commercial Stainless Steel Fresh Meat Cube Cutter Meat Products Dicer Frozen Meat Slicer Machine Cutting Automatic
Product Description

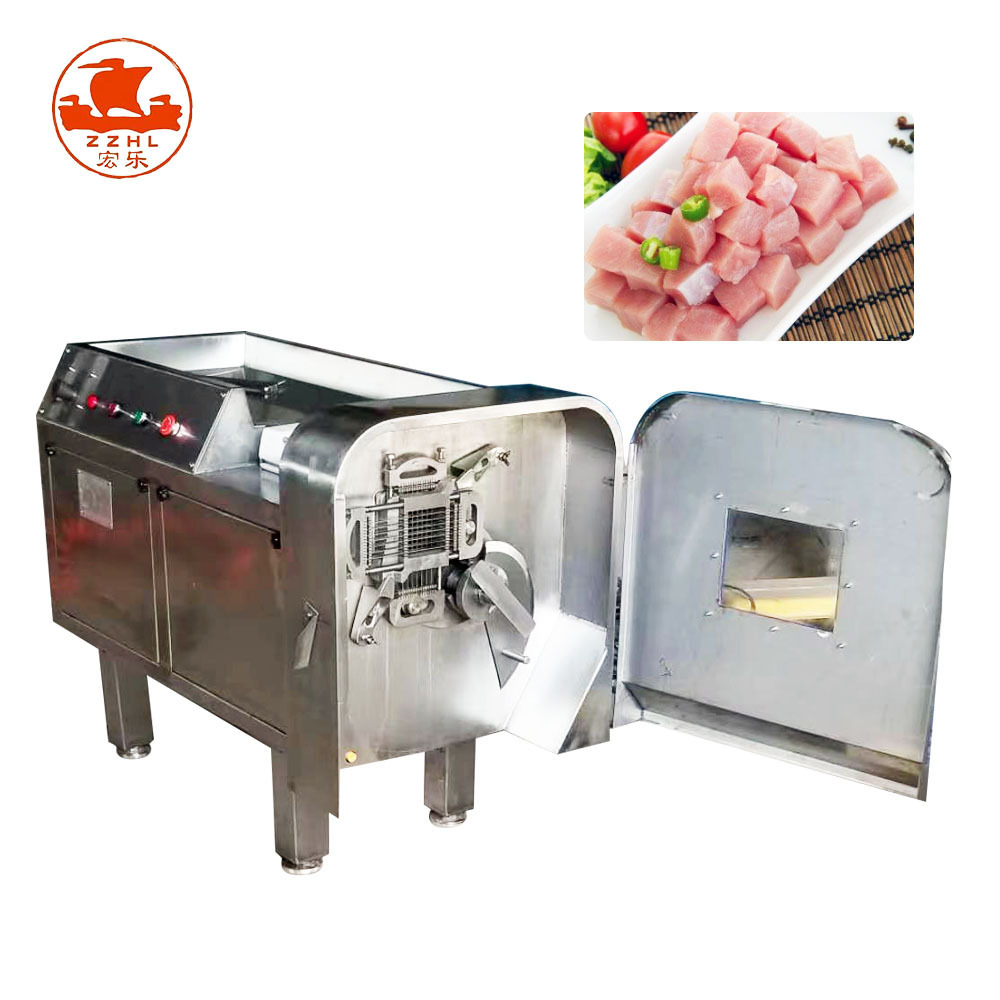

Introduction of meat dicer machine
The equipment has the characteristics of reasonable structure, tool durability, convenient disassembly and beautiful appearance.
At the same time, the equipment can accurately cut "Ding", "bar", "silk", "piece", "block", "roll" and very efficient. The maximum cutting specification is 120mm.
Features: the whole machine is made of high quality stainless steel, and it can make sandblasting. The structure is reasonable,the use is safe, the appearance is exquisite, and it is easy to clean. The function of cutting -5 -80 OC meat, fresh meat, cooked meat, fruits, vegetables, seafood and some boneless poultry products.
Characteristic of meat dicer machine:
1.the cutting accuracy can be converted to "Ding", "stripe", "silk", "piece", "block" and "roll".
2. computer touch screen control system, cutting size can be directly input, accuracy can reach 0.1mm.
3. the detachable knives are pressed down and straight inserted, which are easy to clean and replace knives, and the body is
equipped with tool storage boxes.
4.cutting tool is sharp, easy to maintain, high efficiency, low energy consumption and continuous production.
The equipment has the characteristics of reasonable structure, tool durability, convenient disassembly and beautiful appearance.
At the same time, the equipment can accurately cut "Ding", "bar", "silk", "piece", "block", "roll" and very efficient. The maximum cutting specification is 120mm.
Features: the whole machine is made of high quality stainless steel, and it can make sandblasting. The structure is reasonable,the use is safe, the appearance is exquisite, and it is easy to clean. The function of cutting -5 -80 OC meat, fresh meat, cooked meat, fruits, vegetables, seafood and some boneless poultry products.
Characteristic of meat dicer machine:
1.the cutting accuracy can be converted to "Ding", "stripe", "silk", "piece", "block" and "roll".
2. computer touch screen control system, cutting size can be directly input, accuracy can reach 0.1mm.
3. the detachable knives are pressed down and straight inserted, which are easy to clean and replace knives, and the body is
equipped with tool storage boxes.
4.cutting tool is sharp, easy to maintain, high efficiency, low energy consumption and continuous production.
Parameters of meat dicer machine:
|
Model
parameter |
HLQD-350
|
HLQD-550
|
HLQZD-400
|
|
Shape size (mm)
|
1360*650*940
|
1940*980*1050
|
1270*620*920
|
|
Voltage power (v/kw)
|
380/3
|
380/4
|
220～380/1.5
|
|
Feed bin size (mm)
|
84*84*350
|
120*120*550
|
96*96*400
|
|
Feed bin volume (L)
|
2.5
|
7.9
|
3.7
|
|
Cutting range (mm)
|
5～30
|
5～30
|
5～48
|
|
Production efficiency (kg/h)
|
300～500
|
500-700
|
500-700
|
|
control mode
|
Semi-automatic button
|
Semi-automatic button
|
Full automatic touch screen
|
|
Changing mode
|
Compacting
|
Straight pin
|
Straight pin
|
|
Regulation mode
|
Preconditioning compaction
|
Preconditioning compaction
|
substantive input data
|
|
Cutting precision
|
≥1mm
|
≥1mm
|
≤0.1mm
|
|
propulsion system
|
Hydraulic system
|
Hydraulic system
|
servo system
|
