Taper roller bearings 30216 – 4 pieces, 32020 – 4 pieces
4 steel reinforced solid rubber tires 22”x16”x16”
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
9,340x2,500 (mm)
-
Place of Origin:
-
China
-
Goose Neck Type:
-
Fixed Goose Neck (FGN)
-
King pin:
-
2"(50#) /3.5" (90#)
-
Floor Type:
-
Diamond Steel or Wooden Floor
-
Loading Platform Height:
-
741mm @ unload (without twist locks)
-
Loading capacity:
-
40,000 kgs ( 40 T)
-
Rolling Axles:
-
2 axles 140x140,Dia.100/80mm
-
Taper roller bearings:
-
30216 x 4 pieces, 32020 x 4 pieces
-
Wheels:
-
4 steel reinforced solid rubber tires 22"x16"x16"
-
Usage:
-
Maritime shipping Transport
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
40,000 kgs
-
Brand Name:
-
G.E.T VEHICLES | TRAILERBULL
-
Size:
-
9,340x2,500 (mm)
-
Place of Origin:
-
China
-
Goose Neck Type:
-
Fixed Goose Neck (FGN)
-
King pin:
-
2"(50#) /3.5" (90#)
-
Floor Type:
-
Diamond Steel or Wooden Floor
-
Loading Platform Height:
-
741mm @ unload (without twist locks)
-
Loading capacity:
-
40,000 kgs ( 40 T)
-
Rolling Axles:
-
2 axles 140x140,Dia.100/80mm
-
Taper roller bearings:
-
30216 x 4 pieces, 32020 x 4 pieces
-
Wheels:
-
4 steel reinforced solid rubber tires 22"x16"x16"
-
Usage:
-
Maritime shipping Transport
Brief Instruction

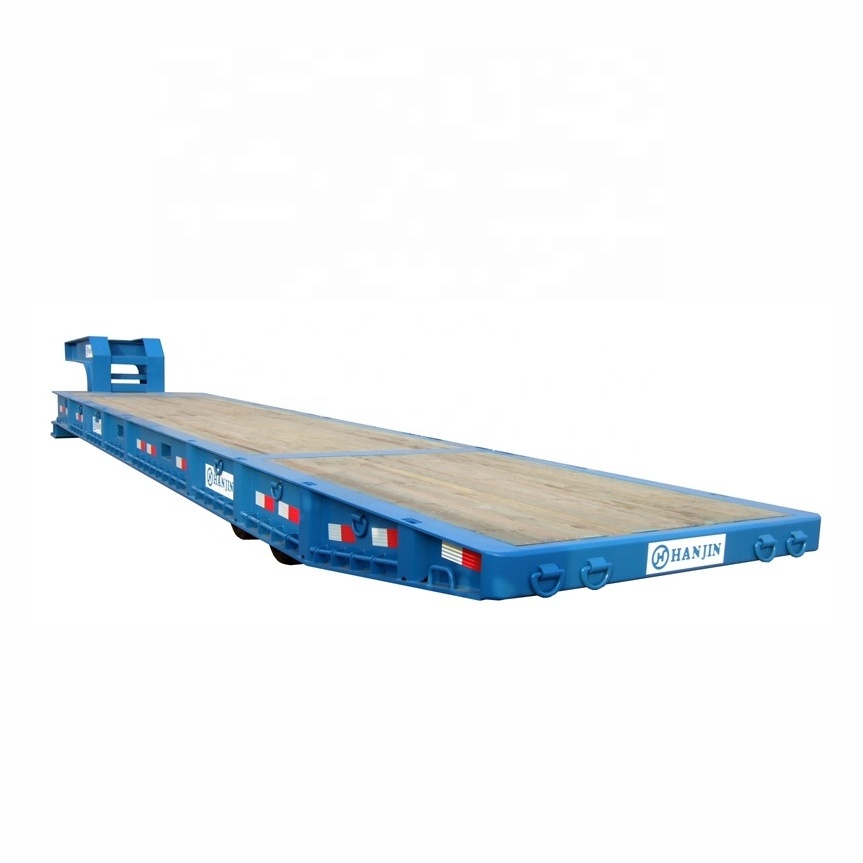

GET.9MAFI.20/40T
Fixed Gooseneck Roll Trailer Mafi Trailer
20ft 40 Ton
A roll trailer is a trailer platform that requires towing by a powered vehicle. It is commonly used for the transport of heavy static goods and materials in the maritime shipping industry。Roll trailers are a common equipment used in ports and on board of roll-on/roll-off ships,to facilitate the shipping of unmovable commodities and oversize load from one port to another.
Standard lengths of roll trailers are 20, 40 and 62 feet (6.1, 12.2 and 18.9 m), in line with twenty-foot equivalent unit shipping containers, but can also be found in lengths of 30 and 80 feet (9.1 and 24.4 m). The standard payloads of roll trailers are 80 or 100 tons, and the tare of the trailer varies from 7 to 15 tons.
The trailer has a steel structure and a hardwood surface, plus a front pocket for towing by tug-master gooseneck, and side handles for applying lashing hooks.
Main Parameters
|
TECHNICAL SPECIFICATION
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Dimension:
|
|
|
|
|
|
|
||||||
|
|
Length:
|
|
|
9340 mm±10mm (approximate)
|
|
|
||||||
|
|
Width:
|
|
|
2,500 mm ±10mm (including mud guard)
|
|
|
||||||
|
|
Height:
|
|
|
741mm @ unload (without twist locks)
|
|
|
||||||
|
(The above dimension will be adjusted according to other specification.)
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Weight:
|
|
|
|
|
|
|
||||||
|
|
Tare Weight:
|
|
|
approximat 6,000 kg
|
|
|
||||||
|
|
Max. Payload:
|
|
|
40,000 kg
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Frame
|
|
|
|
|
|
|
||||||
|
Material:
|
High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and fabricated parts.
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
OEM Parts Configuration:
|
|
|
|
|
|
|
||||||
|
Running Gear:
|
|
|
|
|
|
|
||||||
|
●
|
2 axles 140x140,φ100/80mm
|
|
|
|
|
|
||||||
|
●
|
Taper roller bearings 30216 – 4 pieces, 32020 – 4 pieces
|
|
|
|
|
|
||||||
|
●
|
4 steel reinforced solid rubber tires 22”x16”x16”
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Deck:
|
|
|
|
|
|
|
||||||
|
●
|
4mm thickness checkered steel floor plate.
|
|
|
|
|
|
||||||
|
Accessories:
|
|
|
|
|
|
|
||||||
|
|
Spare Tire Carrier:
|
|
|
None
|
|
|
||||||
|
|
Side Guard:
|
|
|
None
|
|
|
||||||
|
|
Tool Box:
|
|
|
None
|
|
|
||||||
|
Marking:
|
GET standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted
|
|
|
|
|
|
||||||
|
Painting:
|
Color by customer’s requirement.
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Note:
|
|
|
|
|
|
|
||||||
|
1) All the details not mentioned above should comply with Chinese regulations.
|
|
|
|
|
|
|
||||||
|
2) These specifications are given as information. GET reserves its right to change them without previous notice.
|
|
|
|
|
|
|
||||||
|
3) GET does not supply any certificate for this product.
|
|
|
|
|
|
|
||||||
Your Benefits
super Heavy Running Gears
2 axles 140x140,φ100/80mm
Wooden Floor * (options)
Diamond Steel Floor (Standard)
Packed Shipment
On Boarding
Related Trailers
FAQ
What is a
Side Lift Semi Trailer ?
goodversatility, and strong guarantee ability, meet the demands of lifting container anywhere. It is widely used for shipping, port,railway, storage and custom etc. Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and approbations.
Are we manufacturers or traders? Why you are just show Trade company ?
We are manufacturer, we have 3 factories in China for different Vehicles and projects with different names for 30 years.We do business like to visit them and meeting in face to face before , so we have no Stores in Internet, but this year, the virus reason , we can not travel again , have to make it in internet.
GET industry is a new company established in Jinan City , the Center of China Havy Machine to organize the international business of all our factories , so it is just show as a trading company in Alibaba.
Additional information for TruckTrailer
1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of the container trailer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and the container trailer, we are always welcome.
3.The final price of all container trailer is determined by the container trailer configuration you choose.Therefore, if you are interested in purchasing products, please contact us
Application for Truck Trailer
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of containers,this series container semi trailer divides flatbed type.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
What is the CKD and CBU means ?
CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
