Quick Details
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CCC, ce, RoHS, CE, CCC, RoHS, ISO9001, ISO9001
-
Shaft type:
-
double shaft optional
-
Number of poles:
-
10 polos
-
Max. rated speed:
-
customize
-
Max. torque:
-
80N.m
-
Protection level:
-
IP54
-
Encoder:
-
1024
Quick Details
-
Speed(RPM):
-
200~260RPM
-
Continuous Current(A):
-
20~40A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CCC, ce, RoHS, CE, CCC, RoHS, ISO9001, ISO9001
-
Shaft type:
-
double shaft optional
-
Number of poles:
-
10 polos
-
Max. rated speed:
-
customize
-
Max. torque:
-
80N.m
-
Protection level:
-
IP54
-
Encoder:
-
1024

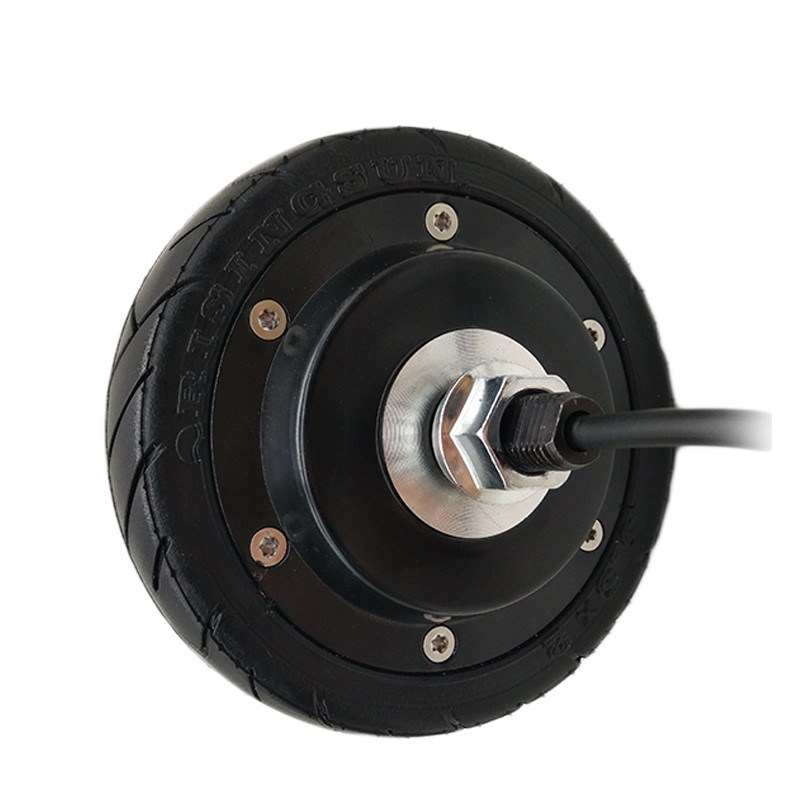

8 inch 24V 6.5N.m brushless dc agv hub motor wheel encoder robot servo motor
Parameters:
|
Outside Diameter |
8.0 inch |
|
Voltage |
48v, customize |
|
Encoder |
1024 line Incremental Photoelectric Encoder |
|
Efficiency |
≥83% |
|
Power type |
DC motor |
|
Carrying weight |
≤100KG/set |
|
Shaft connection |
thread |
|
Brake method |
electric brake |
|
Excitation mode |
permanent magnet type |
|
Tyre form |
with pattern |
|
Environment temperature |
-20 ~ +40 degree centigrade |
Our hub motor wheel advantage:
-
Self R & D , have own patent and great market competitiveness
- Built-in high precision encoder 12-21 bits optional, also can be customized, electric brake, high load carrying etc
- Simple structure, easy installation and high cost performance
- High precision, high power density , low noise
-
The motor and the outer tyre are integrated, beautiful design
- 4-15 inch optional, power: 50-2KW optional, a ccept OEM/OEM for all models
More hub motor wheel pictures:
Dimension of the hub motor wheel single shaft:
Dimension of the hub motor wheel double shaft:
Application: mobile service Robot, AGV
Bulk production
Patent for the hub motor wheel:
Unit weight: 5.3KG;
4 pieces per carton;
Carton weight: 21.2KG.
P ackage: c arton with foam, quantity per carton will depend on the hub motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.
