Quick Details
-
Model Number:
-
DN80~2600mm
-
Length:
-
5.7M/6M or as required, 6m/5.7m/8.15m
-
Application:
-
Urban water, diversion pipes, agricultural,etc
-
Hardness:
-
230HB
-
Pipe Wall Thickness:
-
K7/K8/K9/C40/C30/C25
-
Pull Strength:
-
≥420MPa
-
Yield (≥ MPa):
-
≥300Mpa
-
Product name:
-
EN545 /ISO2531/EN598 Ductile Cast Iron Pipe
-
Color:
-
Black Painted
-
Keyword:
-
Ductile Iron Pipe Pricing
-
Packing:
-
STANDARD PACKING
-
Internal coating:
-
Mortar Cement Lining
-
External Coating:
-
Zinc + Bitumen Painting
-
Joint Type:
-
Self-restrained Joint
-
Certification:
-
ISO2531:1998
-
Surface treatment:
-
Black Paint
-
MOQ:
-
1 Ton
Quick Details
-
Standard:
-
ISO2531/EN545/EN598
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Xinghuasheng
-
Model Number:
-
DN80~2600mm
-
Length:
-
5.7M/6M or as required, 6m/5.7m/8.15m
-
Application:
-
Urban water, diversion pipes, agricultural,etc
-
Hardness:
-
230HB
-
Pipe Wall Thickness:
-
K7/K8/K9/C40/C30/C25
-
Pull Strength:
-
≥420MPa
-
Yield (≥ MPa):
-
≥300Mpa
-
Product name:
-
EN545 /ISO2531/EN598 Ductile Cast Iron Pipe
-
Color:
-
Black Painted
-
Keyword:
-
Ductile Iron Pipe Pricing
-
Packing:
-
STANDARD PACKING
-
Internal coating:
-
Mortar Cement Lining
-
External Coating:
-
Zinc + Bitumen Painting
-
Joint Type:
-
Self-restrained Joint
-
Certification:
-
ISO2531:1998
-
Surface treatment:
-
Black Paint
-
MOQ:
-
1 Ton
Products Description

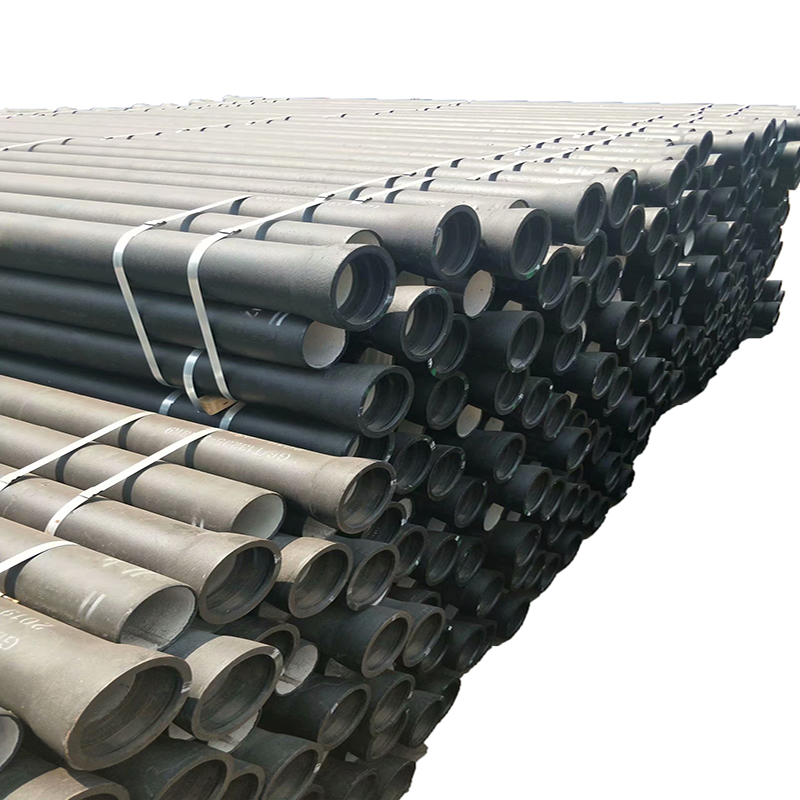

Ductile iron pipe has the essence of iron, the performance of steel, excellent corrosion resistance, good ductility, easy to install.
Ductile iron pipe has the advantages of safe and reliable operation, low breakage rate, convenient and fast construction and
maintenance, excellent anti-corrosion performance, etc
Ductile iron pipe is mainly used for water supply and gas transmission in municipal industrial and mining enterprises.
Product Paramenters
|
Size:
|
DN80~2600mm
|
|
Material:
|
Ductile Cast Iron GGG50
|
|
Pressure:
|
PN10, PN16, PN25,PN40
|
|
Class:
|
K9, K8, C25, C30, C40
|
|
Length:
|
6m, cut to 5.7m
|
|
Application:
|
Water supply project, drainage, sewage, irrigation, water pipeline， etc.
|
|
Certificate:
|
ISO9001, BV, WRAS, BSI
|
|
Internal Coating:
|
1. Portland cement mortar lining
|
|
|
2. Sulphate Resistant cement mortar lining
|
|
|
3. High-Aluminum cement mortar lining
|
|
|
4. Fusion bonded epoxy coating
|
|
|
5. Liquid epoxy painting
|
|
|
6. Black bitumen painting
|
|
External Coating:
|
1. zinc+bitumen(70microns) painting
|
|
|
2. Fusion bonded epoxy coating
|
|
|
3. Zinc-aluminum alloy+liquid epoxy painting
|
|
Packing:
|
Bundles, in bulk
|
