Quick Details
-
Voltage:
-
380V,3phase
-
Current:
-
40A
-
Rated Capacity:
-
30KW
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
different sizes
-
Use:
-
brazing
-
Name:
-
induction brazing machine
-
Application:
-
Soldering Infrared Bga Rework Station
-
Temperature control:
-
Yes
-
Type:
-
Other
-
Certification:
-
CE,ISO
-
Weight:
-
different weight
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MY INDUCTION
-
Weight (KG):
-
20
-
Voltage:
-
380V,3phase
-
Current:
-
40A
-
Rated Capacity:
-
30KW
-
Rated Duty Cycle:
-
100%
-
Dimensions:
-
different sizes
-
Use:
-
brazing
-
Name:
-
induction brazing machine
-
Application:
-
Soldering Infrared Bga Rework Station
-
Temperature control:
-
Yes
-
Type:
-
Other
-
Certification:
-
CE,ISO
-
Weight:
-
different weight

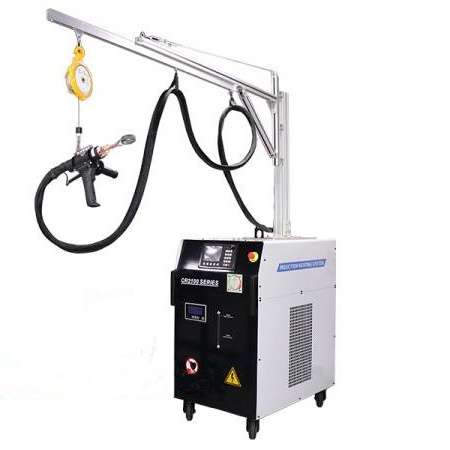

Handheld Induction Braze Welding Equipment
High Frequency Induction Heating Machine
Application:
u Brazing
u Forging
u Hardening Tempering
u Annealing Quenching
u Melting
u Other heating treatment
Features:
u Model: 15KW, 25KW, 35KW 45KW
u IGBT Type
u Frequency: 30 ~ 100KHZ
u 24 Hour counitinous work
u Voltage & current full display. Adjust heating, Holding time
u Easy to operate and more stable
u Design different type indcution coil
|
Model |
MY-15KW |
MY-25KW |
MY-35KW |
MY-45KW |
|
|
Input Voltage |
220V |
3 x 380V, 50/60HZ |
|||
|
Input Current |
20A |
30A |
50A |
65A |
|
|
Ouptut Power |
1~15KW |
1~25KW |
1 ~ 35KW |
1~45KW |
|
|
Output Frequency |
30~100KHZ |
30~80KHZ |
|||
|
Cooling Water |
Ø 0.2 Mpa 2 ~ 6 L/Min |
0.2 Mpa 4 ~ 8 L/Min |
|||
|
Cable Length |
1 ~ 5 meters |
||||
|
Size (cm) |
48 x 21 x 44 |
59 x 24 x 48 |
65 x 26 x 52 58 x 28 x 48 |
69 x 31 x 52 58 x 28 x 48 |
|
|
Weight |
22kg |
30 kg |
66 kg |
81 kg |
|
Application:
u Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
u Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
u Heat treatment for various electric tools, such as gear and axes.
u Heat treatment for machine tools,such as lathe deck and guide rail.
u Hardening for various hardware metal parts and machined parts, such as shaft, gear chain wheel, cam, chuck and clamp etc.
u Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
u Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
u Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
Main characteristics:
IGBT power component and current inverting technologies have been used.
simple structure and light weight.
simple to operate, a few minutes is enough to learn it.
simple to install, installation can be donne by unprofessional person very easily.
Multi display functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and machines can be repaired easily.
light weight, small size.
different shape and size of induction coil can be changed easily to heat different parts.
advantages of the model with timer:
the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space to increase the reliability; with the small size and light weight of the separated transformer, it is conve n ient to use in the production line and easily assembled inside the machinery or moved mechanism.
Application:
Brazing:
it can be used for the brazing of various hardware cutting tools, diamond tools including diamond circular saw from diameter 300-2500mm, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit etc.
HF-15A/AB model, suitable to used for the brazing of circular saw and other tools, usually 9 to 15 seconds is needed to braze one diamond blade.
Heat treatment:
heat treatment of small parts
Melting
small amount metal melting, for example , <2KG of gold, silver, copper, brass melting; <0.5KG of steel, stainless steel melting ; <0.5KG of aluminum , aluminum alloy melting
Forging,
Hardening
quenching
Annealing
