12.Drain outlet with butterfly valve& clamp
13.Thermowell x1
14.Sampler port 1’’ with vavle
15.Ladder Rack x1
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
/
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
135 KG
-
Core Components:
-
vessel
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-

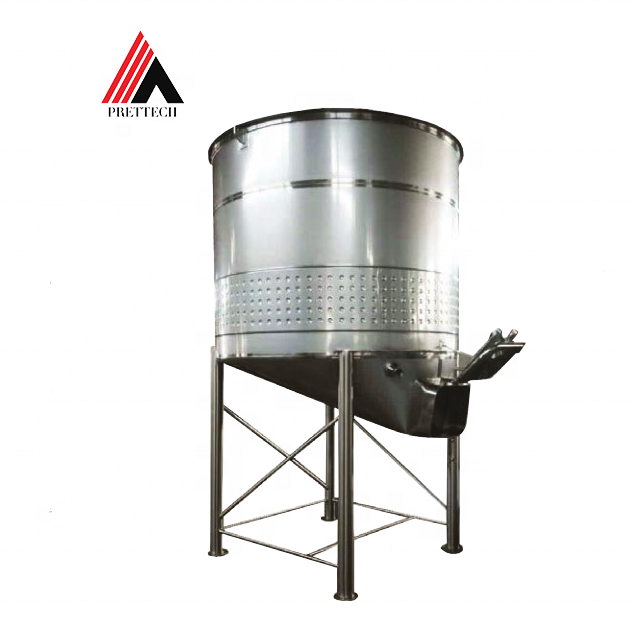

Ss316 Open Top Wine Fermenter 1000 Litre Stainless Steel Fermentation
-
Application:
-
for wineries
-
Function:
-
Red Wine Fermenting
-
Material:
-
Stainless Steel SS304/SS316L
-
Feature:
-
Tall Leg Design;Lid Is Optional
-
Capacity:
-
500L-50000L customizable
-
Finish:
-
Exterior Brushed Finish; Interior 2B Finish
-
Custom:
-
OEM/ODM Services
-
Cooling way:
-
Jacket
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Prettech
-
Voltage:
-
/
-
Power:
-
/
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
135 KG
-
Core Components:
-
vessel
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Ss316 Open Top Wine Fermenter 1000 Litre Stainless Steel Fermentation
-
Application:
-
for wineries
-
Function:
-
Red Wine Fermenting
-
Material:
-
Stainless Steel SS304/SS316L
-
Feature:
-
Tall Leg Design;Lid Is Optional
-
Capacity:
-
500L-50000L customizable
-
Finish:
-
Exterior Brushed Finish; Interior 2B Finish
-
Custom:
-
OEM/ODM Services
-
Cooling way:
-
Jacket
Products Description
1.Material: SS304 grade Stainless steel
2.Finish: Exterior brushed finish; interior 2B finish
3.Internal welds to be ground, pickled& passivated
4.Reinforced channel on the top
5.Cylindrical shell
6.Big slope bottom
7.Legs with foot pads and levelling tubes
8.Horizontal or vertical dimple jacket, 40% of area
9.Jacket inlet/ outlet 1’’ thread
10.Square/ round mandoor at bottom DN450
11.Racking outlet with ball valve& clamp
|
Type
|
Rated Volume
|
Total Volume (L)
|
Inner dia.(mm)
|
Total H (mm)
|
Shell H1(mm)
|
Legs H2(mm)
|
Legs nos.
|
Cooling area(H)
|
|
OT-L 0.5
|
500L
|
800
|
1000
|
2370
|
900
|
1000
|
4
|
700
|
|
OT-L 1.5
|
1500L
|
2100
|
1400
|
2830
|
1200
|
1000
|
4
|
700
|
|
OT-L 2.0
|
2T
|
2700
|
1500
|
3200
|
1219
|
1000
|
4
|
700
|
|
OT-L 2.5
|
2.5T
|
3430
|
1600
|
3400
|
1500
|
1000
|
4
|
700
|
|
OT-L 3.0
|
3T
|
3900
|
1700
|
3400
|
1500
|
1000
|
4
|
700
|
|
OT-L 5.0
|
5T
|
6600
|
2100
|
3800
|
1720
|
1100
|
4
|
1000
|
|
OT-L 7.0
|
7T
|
8730
|
2100
|
4300
|
2250
|
1100
|
4
|
1000
|
|
OT-L 10
|
10T
|
12800
|
2200
|
5200
|
3000
|
1100
|
4
|
1000
|
|
OT-L 10
|
10T
|
1280
|
2550
|
4400
|
2250
|
1100
|
4
|
1000
|
|
OT-L 10
|
10T
|
13000
|
2700
|
4150
|
2000
|
1100
|
4
|
1000
|
|
OT-L 15
|
15T
|
20000
|
2800
|
5000
|
2800
|
1100
|
4
|
1500
|
|
OT-L 20
|
20T
|
26500
|
2800
|
5950
|
3750
|
1100
|
4
|
1500
|
Product Advantages
A1
:Prettech tanks are made of SS304 grade stainless steel. It offers the best properties for sanitary, food and beverage processing. For highly-corrosive environments, such as salty or acidic areas, tanks can be manufactured out of the higher-grade SS316L stainless steel.
A2
:
Big and off-cone slope bottom installed with round or rectangular mandoor for easy discharging.
A3
:
Precise or customized arranged cooling jacket on the tank body makes temperature control stable. It also can meet the requirement of half-tank wine temperature cooling in use.
