Quick Details
-
Application:
-
Hotel,Office Building,Supermarket
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEPER
-
Model Number:
-
DSL-125A
-
Rated Power:
-
65W
-
Product Name:
-

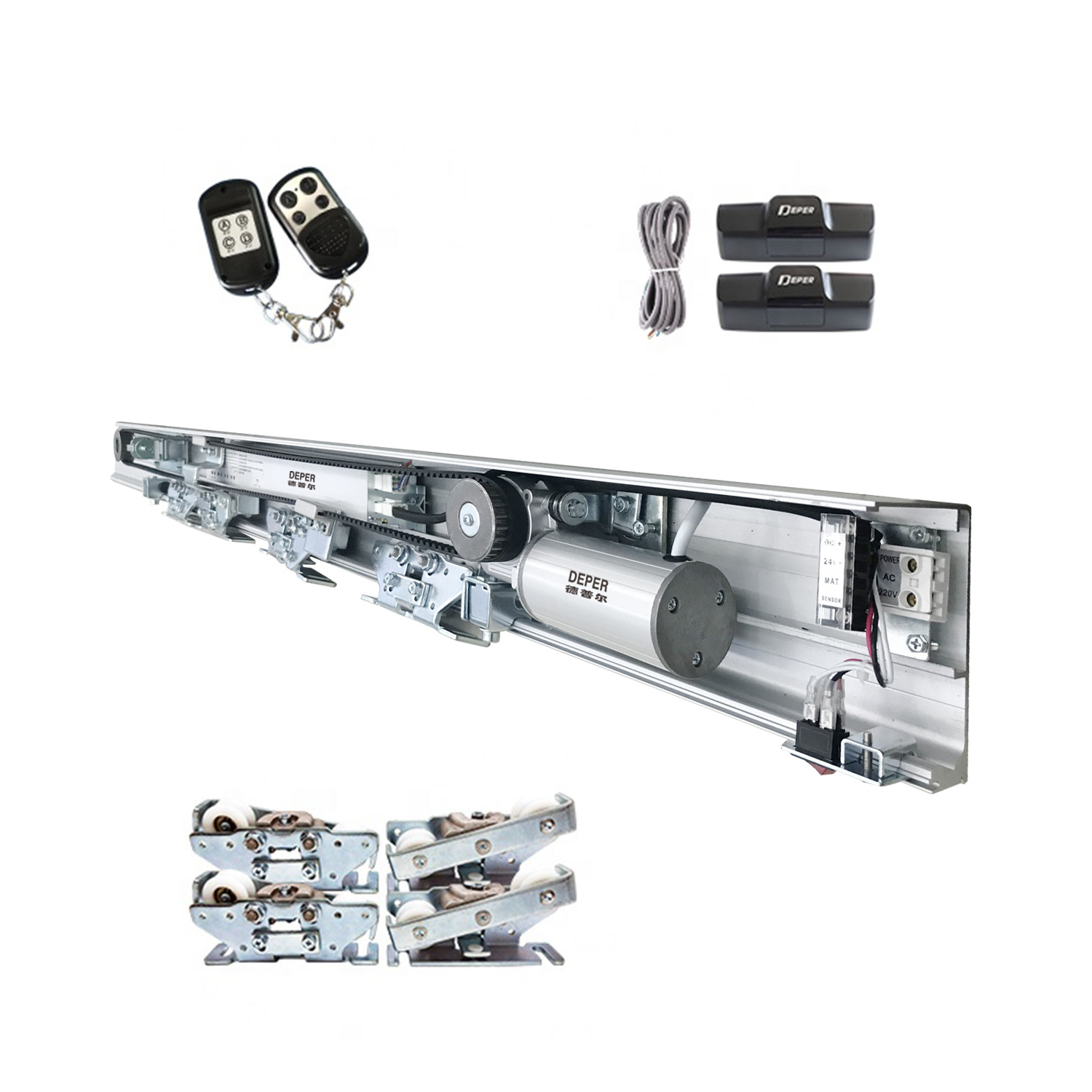

automatic door glass automatic sliding door opener
-
Motor:
-
DC brushless
-
Controller:
-
Microcomputer control
-
Power:
-
70W
-
Guide rail:
-
2.1m/3m/4.2m/6m
-
Opening speed:
-
200-450mm
-
Material:
-
Aluminum alloy
-
Sliding noise:
-
≤55dB
-
Environment temperature:
-
-20 ~ +50℃
-
Keyword:
-
automatic sliding door opener
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hotel,Office Building,Supermarket
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEPER
-
Model Number:
-
DSL-125A
-
Rated Power:
-
65W
-
Product Name:
-
automatic door glass automatic sliding door opener
-
Motor:
-
DC brushless
-
Controller:
-
Microcomputer control
-
Power:
-
70W
-
Guide rail:
-
2.1m/3m/4.2m/6m
-
Opening speed:
-
200-450mm
-
Material:
-
Aluminum alloy
-
Sliding noise:
-
≤55dB
-
Environment temperature:
-
-20 ~ +50℃
-
Keyword:
-
automatic sliding door opener
125B 50W Dc Brushless Motor [Square motor opens doors to a larger size]
Product Advantage
1. Adopting European motor and gearbox integration technology, the drive is strong, the operation is stable, the output power is improved, and it can adapt to the needs of larger doors.
2. The microcomputer control system drives the motor and controls the door to operate in the set mode. Wide voltage power supplydesign, many interface such as double door interlock.
3. Special lubrication measures, special deceleration mute wheel,professionally designed hanging parts and roller structure greatly reduce the running noise.
4. Every time there is a self-testprocedure, the door will rebound when it encounters resistance, which fully guarantees the safety of the passers-by.
5. Suitable for office buildings, storefronts, banks, restaurants, hotels,shopping centers, laboratories, hospitals and other places.
|
Technical Data
|
|
|
|
product name:
|
automatic door sliding
|
|
|
Door configuration:
|
Single leaf,Double leaves
|
|
|
Limited Weight:
|
≤1×150kg,≤2×125kg
|
|
|
Door leaf vidth:
|
750-1600mm,650-1250mm
|
|
|
Power voltage:
|
AC110V-220V±10?0/60Hz
|
|
|
Povwer consumption:
|
<70W
|
|
|
Opening speed:
|
200-450mm/S(adjustable)
|
|
|
Closing speed:
|
200-450mm/S(adjustable)
|
|
|
Hold-open time:
|
0-8S(adjustable)
|
|
|
Manual force:
|
<40N,<50N
|
|
|
Environment temperature:
|
-20~+50℃
|
|
|
Guide rail length:
|
2100mm,4200mm,4800mm,5000mm,6000mm
|
|
|
Standard Size:
|
4200mm
|
|
Why Choosing Our Products
|
Packaging
|
|
|
|
Size
|
54 (L) * 23 (W) * 20 (D)
|
|
|
Weight
|
10kgs/set
|
|
|
Packaging Details
|
The normal package is standard carton (Size: L*W*H). If export to european countries,the wooden box will be fumigated.
|
|
|
Packaging
|
|
|
|
Size
|
426 (L) * 18 (W) * 12 (D)
|
|
|
Weight
|
22kgs/set
|
|
|
Packaging Details
|
The normal package is standard carton (Size: L*W*H). If export to european countries,the wooden box will be fumigated.
|
|
