Quick Details
-
Model Number:
-
OS
-
Color:
-
Black, brown, red or as your request
-
Application:
-
Engine, valve, transmission, reducer, motor, electric car
-
Temperature:
-
-40℃~220℃
-
Medium:
-
Lubricating Oil
-
OEM:
-
Aviable
-
Material Type:
-
NBR, SBR, FKM, Sil, EPDM, HNBR, Cr, Acm, etc
-
Material Hardness:
-
30~90 Shore a
-
Drawings:
-
2D or 3D Acceptable
-
Second Processing:
-
Vulcanizing / Deburring / Silk-Screen / Carving
-
Lead Time:
-
5~10 Days for Making Mold,7~15 Days for Mass Production
Quick Details
-
Size:
-
custom made
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SXAN
-
Model Number:
-
OS
-
Color:
-
Black, brown, red or as your request
-
Application:
-
Engine, valve, transmission, reducer, motor, electric car
-
Temperature:
-
-40℃~220℃
-
Medium:
-
Lubricating Oil
-
OEM:
-
Aviable
-
Material Type:
-
NBR, SBR, FKM, Sil, EPDM, HNBR, Cr, Acm, etc
-
Material Hardness:
-
30~90 Shore a
-
Drawings:
-
2D or 3D Acceptable
-
Second Processing:
-
Vulcanizing / Deburring / Silk-Screen / Carving
-
Lead Time:
-
5~10 Days for Making Mold,7~15 Days for Mass Production
product information
| Common types of oil seals | |||||
| Type | Code number | Main features | Usage | Dielectric pressure resistance | Maximum line speed |
| Simple single lipped | B | It is commonly used for high and low speed rotating shafts and reciprocating movement to seal mineral, oil and water. | Ordinary oil seal, in the case of less dust and impurities, the use of medium pressure, the reciprocating speed of <0.1m/s. | <0.05MPa | 15m/s |
| Regular lip | FB | In addition to the characteristics of the above S type oil seal, dust can be prevented. | Ordinary oil seal, with dustproof lips, dustproof, resistant to medium pressure | <0.05MPa | 15m/s |
| No spring type | BV | Spring free single lip type inner frame type rubber oil seal. | Generally applicable to low-speed conditions, the sealing medium for the lubrication of ester. | <0.05MPa | 6m/s |
| Outer skeleton, single lip | W | With the spring single lip exposed skeleton rubber oil seal, waist thin, follow good, good rigidity. | Ordinary oil seal, used in case of less dust and impurities | <0.05MPa | 15m/s |
| Outer skeleton, double lips | FW | With the lips of the lips exposed, skeleton rubberoil seal, waist thin, followed by good, high stiffness, good coaxial. | Ordinary oil seal, with dustproof lips, dustproof, resistant to medium pressure <0.05 | <0.05MPa | 15m/s |
| Fabricated single lipped | Z | From the inside and outside the outer skeleton oil seal skeleton assembly into piping and installation of high precision, fast heat dissipation, heavy load characteristics. | Suitable for heavy load under high temperature and high speed condition | <0.05MPa | 15m/s |
| Fabricated double lipped | FZ | The assembled external skeleton oil seal with side lip has the characteristics of dust resistance, high installation accuracy, fast heat dissipation and heavy load characteristics. | Apply to high temperature, high speed, heavy load under dust condition | ≤0.05MPa | 15m/s |
| Unidirectional reflux type | Dextral SR,Levo DL | A diagonal bar with angle in lip air measurement system using fluid mechanics principle, produces pump function, with reflux effect. | Because of the backflow effect, the radial force is smaller than that of the ordinary oil seal, thereby reducing wear and heat build-up and improving service life | <0.05MPa | 20m/s |
| Pressure type | NY | The lip is short, stubby waist, with pressure, work pressure is less than 3MPa. | The shaft end oil seal for high pressure pump, general PV value is less than or equal to 8 | ≤3MPa | 15m/s |

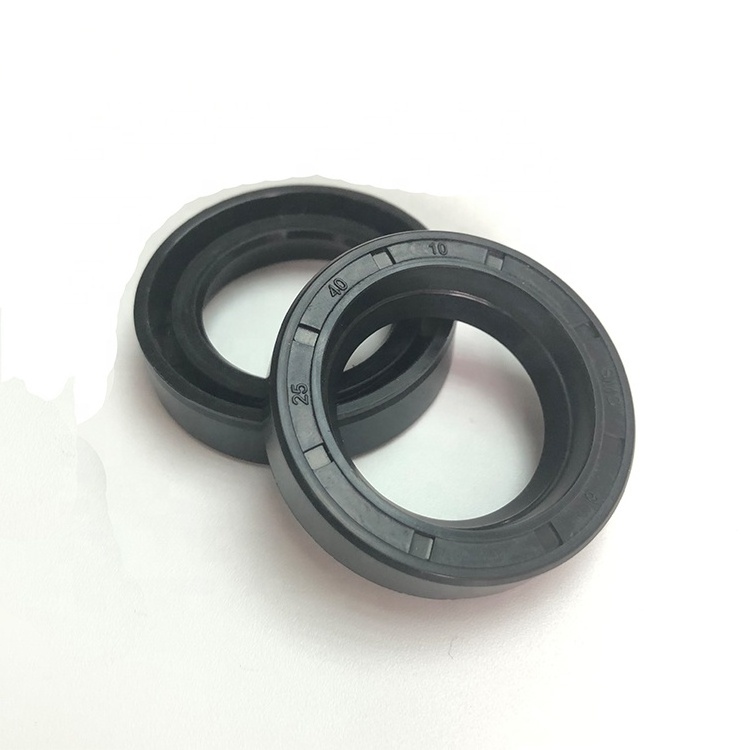

Product show
