Quick Details
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2369*1200*2130mm
-
Tire type:
-
Pneumatic
-
Standard Battery (voltage/capacity):
-
50.4/240V/Ab
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Philippines, Indonesia, India, Thailand, Kazakhstan, Ukraine
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE, ISO
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XGMA
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2369*1200*2130mm
-
Tire type:
-
Pneumatic
-
Standard Battery (voltage/capacity):
-
50.4/240V/Ab
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Philippines, Indonesia, India, Thailand, Kazakhstan, Ukraine
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE, ISO

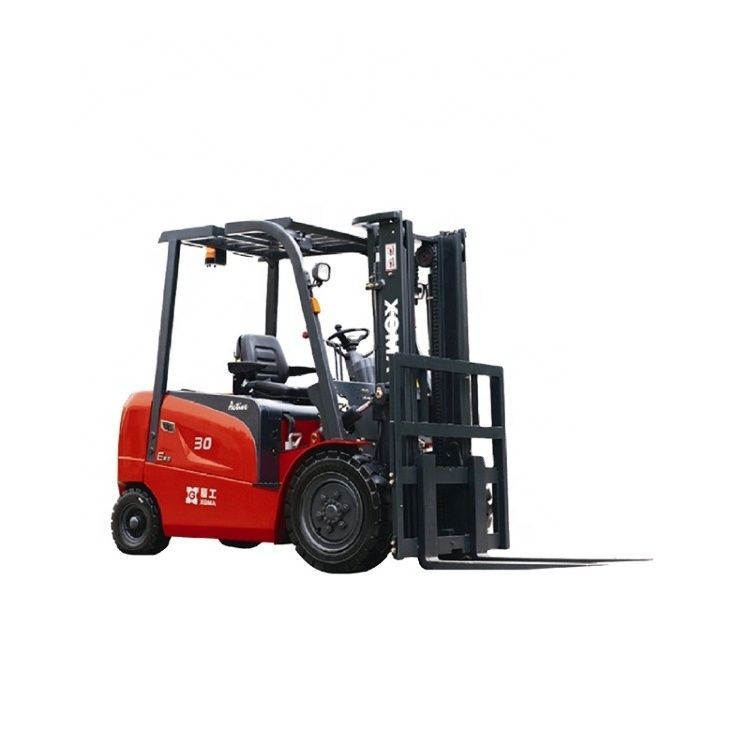

XGMA Electric Forklift CPD25
Contact way: WhatsApp +8613959261266 Sally
PRODUCT FEATURES
- 1.6-3.5T electric ac forklifts adopt new maintenance-free ac motor, it has many features, such as simple structure, high efficiency, no carbon brush and free maintenance, etc. All the features make the cost of preventive and maintenance cheaper. 1.6~3.5T electric ac forklifts equip with large battery (80V/500Ah), trustworthy quality and long continuous working time.
- The same safety design concept as XGMA diesel forklift,1.6~3.5T electric ac forklifts equip with wide-view mast, high strength overhead guard and superior design frame.
- The electric forklift truck is widely used in cold storage,fresh-keeping storehouse and other places of logistics. It is suitable for working in indoor, the cabin, trunk, such as confined space, as well as using in the field tobacco, food, textile, printing and other textile industry.
PARAMETERS
| Item | Description | Unit | XG516B-AA5 | XG520B-AA5 | XG525B-AA5 | XG530B-AA5 | XG535B-AA5 |
| CPD16 | CPD20 | CPD25 | CPD30 | CPD35 | |||
| Features | Power Type | Lithium battery | |||||
| Drive Mode | Sit Type | ||||||
| Rated Load | Kg | 1600 | 2000 | 2500 | 3000 | 3500 | |
| Load Center Distance | mm | 500 | |||||
| Lifting Height | mm | 3000 | |||||
| Weight | Deadweight | Kg | 3000 | 4050 | 4250 | 5000 | 5450 |
| Battery Weight | Kg | 145 | 270 | ||||
| Deadweight without Battery | Kg | 2855 | 4050 | 4250 | 4730 | 5450 | |
| Dimension | Front Suspension | mm | 425 | 470 | 475 | 480 | |
| Wheelbase | mm | 1370 | 1500 | 1680 | |||
| Mast Tilt Angle (Forward/backward) | ° | 6/12 | |||||
| Mast Static Height | mm | 2105 | 2080 | 2080 | 2100 | 2180 | |
| Free Lifting Height | mm | 110 | 140 | 145 | 150 | ||
| Max. Height when lifting | mm | 4065 | 4129 | 4235 | |||
| Overhead Guard Height | mm | 2130 | 2130 | 2130 | 2150 | 2150 | |
| Seat Height | mm | 130 | |||||
| Driver's Height | mm | 1040 | 1110 | 1130 | |||
| Overall Length (till fork surface) | mm | 2080 | 2369 | 2369 | 2530 | 2595 | |
| Overall Width | mm | 1100 | 1200 | 1200 | 1220 | 1220 | |
| Fork Dimension (L*W*T) | mm | 960*100*30 | 1070*122*40 | 1070*125*45 | 1070*125*50 | ||
| Min. Ground Clearance (full load) | mm | 120 | 125 | ||||
| Min. Truning Radius | mm | 1970 | 2070 | 2210 | 2290 | ||
| Tire | Tire type | Pneumatic | Solid | ||||
| Qty. of Tires (front/rear) | 2X/2 | ||||||
| Front tire spec. | 6.50-10-10PR | 7.00-12-12PR | 28X9-15-14PR | 28X9-15 | |||
| rear tire spec. | 5.00-8-10PR | 18X7-8-14PR | 18X7-8-14PR | 18X7-8 | |||
| Performance | Travel Speed (full load/no load) | mm/s | 12/13 | 13/15 | |||
| Lifting Speed (full load/no load) | mm/s | 275/420 | 280/460 | 260/460 | 275/420 | 250/360 | |
| Max. Traction Force (full load/no load) | KN | 13.8/8.21 | 14.1/13.4 | 13.5/12.5 | 15.7/16.2 | 15.5/15.0 | |
| Gradeability (full load/no load) | % | 15/15 | |||||
| Drive System | Travel Motor Power | KW | 8 | 11.1 | 16.6 | ||
| Working Motor Power | KW | 8 | 12 | 13.5 | |||
| Standard Battery (voltage/capacity) | V/Ab | 50.4/200 | 50.4/240 | 80/200 | |||
