Quick Details
-
Warranty:
-
One year or 1000 hours
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Model Number:
-
BSFGO-40
-
Speed:
-
1500/1800RPM
-
Weight:
-
900kg
-
ALTERNATOR BRAND MODEL:
-
BISON/BS184J
-
PRIME POWER:
-
32KW/40KVA
-
POWER EFFICIENCY:
-
88.50%
-
VOLTAGE REGULATION:
-
≤±1
-
EXCITATION TYPE:
-
BRUSHLESS
-
INSULATION CLASS:
-
H
-
CONTROLLER BRAND:
-
DeepSea/Smartgen/BISON
-
Certification:
-
CE/EPA/ISO9001/ISO14001/ISO45001
Quick Details
-
Rated Voltage:
-
50HZ,220V-400V, 60HZ, 110V-480V
-
Rated Current:
-
59A
-
Frequency:
-
50hz/60hz
-
Warranty:
-
One year or 1000 hours
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Model Number:
-
BSFGO-40
-
Speed:
-
1500/1800RPM
-
Weight:
-
900kg
-
ALTERNATOR BRAND MODEL:
-
BISON/BS184J
-
PRIME POWER:
-
32KW/40KVA
-
POWER EFFICIENCY:
-
88.50%
-
VOLTAGE REGULATION:
-
≤±1
-
EXCITATION TYPE:
-
BRUSHLESS
-
INSULATION CLASS:
-
H
-
CONTROLLER BRAND:
-
DeepSea/Smartgen/BISON
-
Certification:
-
CE/EPA/ISO9001/ISO14001/ISO45001
PRODUCT INFORMATION
|

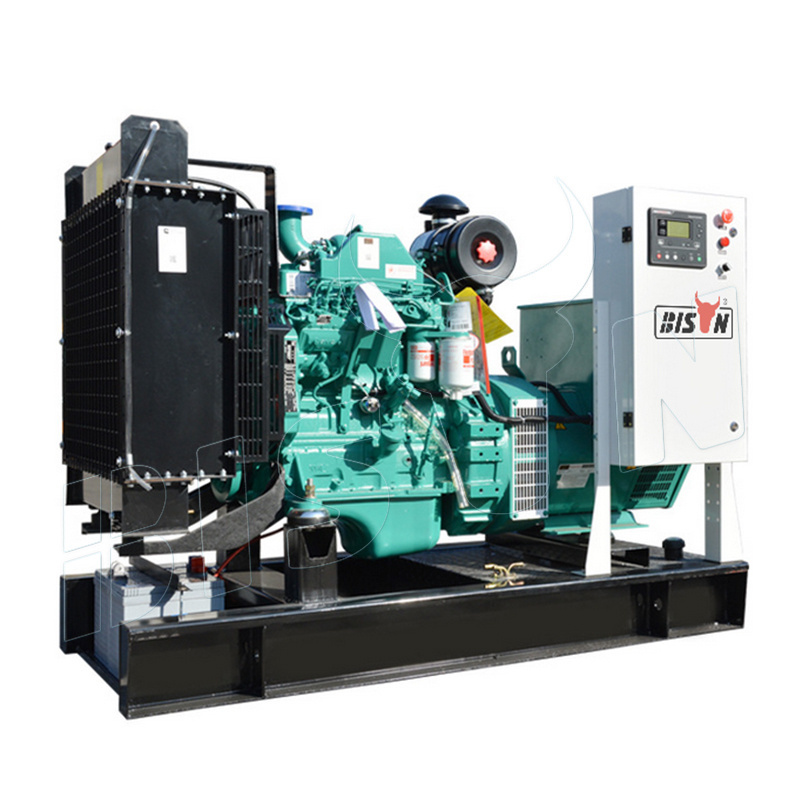

Industrial Diesel Genset Output
|
|
|
|
MODEL NO.
|
BSFGO-40
|
|
|
RATED POWER
|
32KW/40KVA
|
|
|
RATED FREQUENCY/VOLTAGE
|
50HZ，220V-400V, 60HZ, 110V-480V
|
|
|
PHASE/WIRE
|
3PHASE 4WIRE
|
|
|
POWER FACTOR
|
0.8
|
|
|
FUEL TANK (L)
|
80
|
|
|
OPEN TYPE DIMENSION (MM)
|
1650*750*1100
|
|
|
SILENT TYPE DIMENSION (MM)
|
2100*900*1200
|
|
|
SILENT TYPE WEIGHT (KG)
|
900
|
|
|
Diesel Engine
|
|
|
|
ENGINE MODEL
|
4DX21-53D
|
|
|
TYPE
|
Water-cooled, inline, 4-stroke, direct injection
|
|
|
PRIME POWER
|
39KW
|
|
|
INTAKE TYPE
|
Naturally-aspirated
|
|
|
NO.CYLINDERS
|
4
|
|
|
BORE×STROKE (mm)
|
102*118
|
|
|
DISPLACEMENT (L)
|
3.86
|
|
|
LUBRICATING OIL CAPACITY (L)
|
13
|
|
|
REATED FUEL CONSUMPTION (L/H)
|
8.192
|
|
Why choose BISON as your gensets supplier?
BISON's products have
CE certificates
，
EURO 5 certificates
and
SGS guarantees
, and the factory has passed BSCI, ISO9001 field verification, pre-production inspection (PPI), during production inspection (DPI), pre-shipment inspection (PSI), container loading/supervision (LS), piece inspection, etc.
Stock/OEM/ODM
BISON,Your first choose of Supplier who producing the diesel generator sets.
TAIZHOU BISON MACHINRY INDUSTRY CO.,LTD
who is a professional manufacturer of
Generators,Engines,Water Pump,High Pressure Washer and Parts
.
BISON has more than
20+
Technology Engineers and
15+
Designers for OEM Service.BISON has more than
50000+
square meters of workshops and more than
300+
workers to deliver goods on schedule.
BISON eagerly anticipates the opportunity to establish itself as your paramount partner.
Explore our A-level services here, tailored for your utmost satisfaction.
PROJECTS SHOW
WATER COOLED GENERATOR SET
|
BISON offering a versatile range of top engine brands for optional.
BISON can provide
15 KVA to 125KVA
, with a voltage range of
110V~480V
and frequencies of
50Hz and 60Hz
.
|
|
- 12kw/16kw generator
(15kva/20kva generator)
|
|
- 20kw/24kw/28kw generator
(25kva/30kva/35kva generator)
|
|
- 30kw/32kw/35kw/36kw generator
(38kva/40kva/44kva/45kva generator)
|
|
- 40kw/45kw/48kw generator
(50kva/56kva/60kva generator)
|
|
- 50kw/56kw/60kw/64kw generator
(62.5kva/70kva/75kva/80kva generator)
|
|
- 75kw/80kw/90kw/100kw generator
(94kva/100kva/110kva/125kva generator)
|
|
Silent Type Genset:
|
Open Frame Type Genset：
|
Mobile & Trailer Genset:
|
|
Commercial Use，such as hotels, hospitals, schools, office buildings, etc. Events and Entertainment, In outdoor events, concerts, outdoor weddings, etc. Industrial Applications Requiring Low Noise, In some industrial settings where noise sensitivity is a concern, such as laboratories, recording studios, etc.
|
Industrial and Construction Sites, Open type generator sets are often deployed in industrial settings, construction sites, and mining operations.and Agricultural Operations: Farms and agricultural facilities utilize open-frame generator sets to power irrigation systems, farm machinery.
|
Construction Sites, Temporary Events and On-site Activities, Emergency Response and Disaster Relief, Agriculture and Rural Areas, Power Transport and Facility Maintenance.
|
GENSET WHOLESALE GUIDE
|
Water Cooled Diesel Generator set
, commonly referred to as a
water cooled diesel genset
, can be used as a primary or auxiliary power supply.
Diesel generator sets
are more suitable for long-term or even continuous use.
They are widely used in various applications such as military, industrial facilities, ships, and backup power for the communication industry.
These generator sets are available in both single-phase and three-phase configurations.
|
Setting up the business of high-power generators is a big deal. Before running this project, it is recommended that you carefully read the
wholesale guide for generator sets
written by BISON experts. Obtain various knowledge from professional factories in China.
You can also directly contact BISON, and we will assist you in selecting the generator set that suits your project needs flexibly. We are a professional generator set manufacturer in China, committed to providing you with more economical and efficient power solutions.
You can also directly contact BISON, and we will assist you in selecting the generator set that suits your project needs flexibly. We are a professional generator set manufacturer in China, committed to providing you with more economical and efficient power solutions.
How to choose a diesel generator set?
Selecting the right generator set to meet your needs is a crucial decision that requires careful consideration of various factors. Below are some common selection factors that will help you determine the appropriate generator series:
①
Necessary power output to meet current and future demands, including considerations for load types, diversity factors, and step loads.~~
②
Equipment features such as manual or automatic start, grid parallel operation, soundproofing, auxiliary fuel storage, heaters, etc. ~~
③
Complian
ce with legal st
andards such as electrical codes, noise regulations, gas and particulate emissions, and transportation regulations for mobile generator sets. Installation location for the diesel generator set (indoors, outdoors, high altitude, dusty environments, etc.). ~~
Once Bison's engineers gather this information, we tailor projects to meet the customer's requirements, ensuring not only technical specifications but also suitability for the generator set's actual application.
“Additional Features" to Help You Choose a Diesel Generator Set:
♦
Voltage Regulation:
The cheapest Diesel generator sets may don't have an output voltage regulation system. Without this regulation system, equipment connected to the generator set may be at risk of damage, especially if its electronic components are sensitive to overvoltage. Therefore, we recommend checking if the generator set is equipped with an Automatic Voltage Regulator (AVR) to avoid damaging equipment.
♦
Cooling System:
Manufacturers may specify the total running time when the water tank is full on the diesel generator set, as well as the continuous running time and the rest time required for cooling between two uses. Larger models diesel generator set may come with liquid cooling systems.
♦ Portability: High-power generator sets offer a mobile & trailer mode: the structural design allows them to be moved by forklift. They can also be containerized with trailer. Some higher power generator sets cannot be moved after installation and must be fixed.
♦
The noise level of the generator set
may be a decisive factor affecting the comfortable of users. The noise generated by higher power generator sets can easily reach 100 decibels (dBA). If noise level is an important reason for you, suggest consider using a soundproof generator set.
♦
ATS (Automatic Transfer Switch) Function:
An Automatic Transfer Switch (ATS) is a crucial component in a backup power system. It automatically switches the electrical load from the primary power source (usually the utility grid) to the backup power source (such as a generator) in the event of a power outage. The ATS monitors the voltage and frequency of both power sources and ensures a seamless transfer without interruption to the connected equipment. Overall, the ATS plays a crucial role in ensuring uninterrupted power supply during outages, making it an essential component of standby power systems in various applications.
Proper maintenance and troubleshooting of diesel gensets are crucial to ensure their reliable operation and extend their lifespan.
Regular maintenance:
Regular maintenance such as oil and filter changes, air filter replacement, and coolant checks should be performed to ensure the generator is running efficiently and to prevent any potential issues.
Check for leaks:
Check for any signs of leaks in the fuel, oil, or coolant system. Any leaks should be repaired immediately.
Check the alternator:
The alternator should be checked for any signs of wear or damage, and any issues should be addressed promptly.
Check the air filter:
The air filter should be checked and replaced if it is dirty, as a dirty air filter can reduce the efficiency of the generator.
Check the fuel system:
The fuel system should be checked for any signs of contamination or blockages, and any issues should be addressed promptly. (Precautions For Oil Used In Diesel Gensets)
Keep generator clean:
Keep the generator and surrounding area clean to ensure proper ventilation and cooling.
Check the exhaust system:
The exhaust system should be checked for any signs of leaks, blockages, or damage and any issues should be addressed promptly.
If you encounter any problems with your diesel genesets, it is important to troubleshoot and address the issue as soon as possible to prevent any damage to the generator and ensure the reliability of the power supply.
Diesel Generator Set Manufacturer and Suppliers
In the end, selecting the right generator set manufacturer and supplier is more important meeting your specific needs. BISON is a well-known and trusted brand in the Diesel Generator Set Line, BISON offering various types of generator sets to meet various power requirements and applications.
If you are unsure which generator set suits your needs, feel free to consult BISON.
We can help analyze your power requirements, recommend the appropriate generator set size and type, and guide you through
the installation process.
