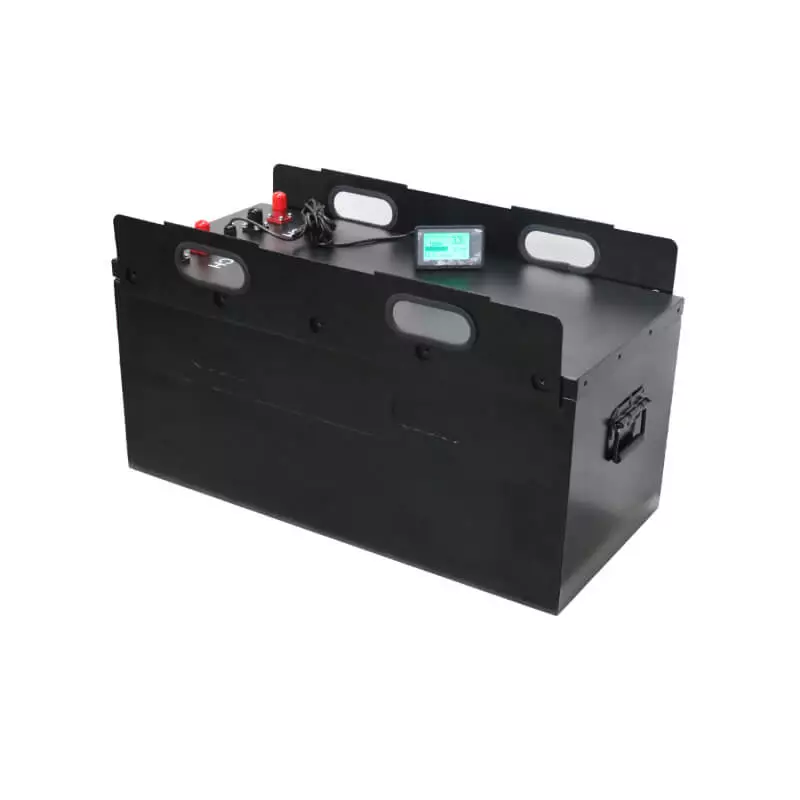

Customized 6000 Times High Power LiFePO4 48V 400AH 420AH 450AH 500Ah Electric Wheel Loader Stacker Forklift Battery

Customized 6000 Times High Power LiFePO4 48V 400AH 420AH 450AH 500Ah Electric Wheel Loader Stacker Forklift Battery

FOB Reference Price: Get Latest Price

≥2 Pieces

US $3700

≥50 Pieces

US $3650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: OSN-LFP51420

Place of Origin:: Guangdong, China

Weight:: 250kg

The charging ratio:: 100A

The discharge rate:: 200A

Electric Energy:: 192000 Wh

Warranty:: 3years

Battery Size:: Can be customized

Certification:: CE/RoHS/UN38.3/MSDS

Battery type:: Lifepo4/lithium Battery

Nominal Capacity:: 420AH

Cell Voltage:: 51.2V

Discharge rate:: 200A

Max discharge current:: 400A

Battery Type:: LiFePO4

Quick Details

Anode Material:: LFP

Application:: Home Appliances, BOATS, Golf Carts, SUBMARINES, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts

Brand Name:: OSN POWER

Model Number:: OSN-LFP51420

Place of Origin:: Guangdong, China

Weight:: 250kg

The charging ratio:: 100A

The discharge rate:: 200A

Electric Energy:: 192000 Wh

Warranty:: 3years

Battery Size:: Can be customized

Certification:: CE/RoHS/UN38.3/MSDS

Battery type:: Lifepo4/lithium Battery

Nominal Capacity:: 420AH

Cell Voltage:: 51.2V

Discharge rate:: 200A

Max discharge current:: 400A

Battery Type:: LiFePO4

Product Description

Customized 6000 Times High Power LiFePO4 48V 400AH 420AH 450AH 500Ah Electric Wheel Loader Stacker Forklift Battery

OSN Power deep cycle lithium batteries are Plug and Play 48V alternative replacements for applications using Gel, AGM or Flooded Lead Acid battery. We use battery cells with technology based Lithium iron phosphate - LiFePO4 which guarantees high thermal and chemical stability and provides more safety features than other lithium-ion technologies. The integrated integrated battery management system(Software BMS)escorts the high quality and stability of the entire battery and realize status monitoring when customer needs. Our 48V battery are designed to replace the lead-acid battery, which are available for drop-in replacement in the Forklift Traction ect.

Detailed Images

Highlights

A grade UL certified lithium cell Inbuilt Military Standard BMS

We use grade A brand new cells, UL1642 or UL1973 certified and have been tested per IEC62133 standards. Meets International regulations for air & marine transport.

Built in multifunctional BMS with 100A constant discharge current, maximizes the performance of the battery by automatically balancing the cells and protecting them from being over charged or over discharged.

Assembly quality

We exploit the most advanced laser welding technology for cell assembly, more firm and better conductivity than screw stud connection. And use large gauge 4 AWG silicone wire for high current. The inside and the top of the battery case will be plugged with fireproof sponge and injected foam glue to fix in case of vibration.

Strict QC quality Control

Every product will undergo strict product testing before leaving the factory to ensure 100% compliance with customer requirements.

5 Year Limited Warranty

Considerate after-sales service and warranty leaves you a peace of mind.

Battery Pack installation

Battery pack gluing

12V Battery Pack Testing

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Advantages of lithium-ion forklift battery

High efficiency : lithium-ion technology can store more power in a longer time. Compared with lead-acid battery, lithium-ion battery eliminates the need for battery changes at each shift Battery life has up to 3500 cycles and beyond，The battery life is 3-5 times that of lead-acid battery Fast charge completes in about two hours Lithium ion battery has no memory ，Consistent performance regardless of charge level Single battery ：The lithium-ion battery does not need multiple batteries to be connected in series and parallel. Only one battery is needed to run the forklift，and minimise the need to buy, store and maintain spares No daily maintenance – the battery stays on board the truck for charging and there is no need for water top-ups or electrolyte checks High energy density ：The energy density of lithium-ion battery pack can reach twice that of lead-acid battery of similar size. During the whole energy discharge process, the voltage supply is more stable, enabling it to operate for a longe

Product Presentation

OSN Deep Cycle Lithium Battery line has the best weight to power ratio on the market

No.	Items	Specifications
1	Nominal Voltage	51.2V
2	Nominal Capacity	420Ah
3	Cell Inside	Brand new A grade cells
4	Configuration	16S
5	Standard Charge Current	100A
6	Max. Charge Current	200A
7	Battery management System (BMS)	Built-in
8	Continuous Discharge Current	200A (adjustable according to the customer’s requirements)
9	Peak Discharge Current	400A (adjustable according to the customer’s requirements)
10	Full Charged Voltage	58.4V(3.65V per cell)
11	Charge Cut-off Voltage	62.4V (3.9V per cell)
12	Discharge Cut-off Voltage	44V (2.0V per cell)
13	Net Weight	250kg (approx.)
14	Dimensions	Can be customized
15	Connector	threaded terminals
16	Operating Temperature	Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C
17	Storage Temperature	(Recommended to store 20 ± 5°C for long term storage)
18	Cycle Life	6000 times (80% of initial capacity at 0.2C rate, IEC Standard)

OSN POWER Standard Forklift Traction Battery Models

Application

The 48V lithium battery is widely applied to RV, camping car, motorhome, Golf cart,solar system(off-grid system), boat, marine, trolling motor, Forklift Traction, kayak which give a replacement to your lead acid/AGM/GEL battery
