Quick Details
-
Type:
-
Heavy Duty Hose Clamp
-
Band width:
-
18, 20, 22, 24, 26mm
-
Band thickness:
-
0.6, 0.8, 1.2, 1.5, 1.7mm
-
Usage:
-
Pipe fastner
-
Certification:
-
ISO9001:2008, CE
-
Delivring Port:
-
Qingdao/Xingang
-
Surface treatment:
-
Zinc Color Plated
-
Packing:
-
Plastic Bag + Carton + Pallets
-
DELIVERY TIME:
-
15-30 Days
Quick Details
-
Warranty:
-
1 year
-
Application:
-
Healthcare, General Industry, Heavy Industry, Mining
-
Name:
-
Galvanized Steel Single Bolt Hose Clamp
-
Type:
-
Heavy Duty Hose Clamp
-
Band width:
-
18, 20, 22, 24, 26mm
-
Band thickness:
-
0.6, 0.8, 1.2, 1.5, 1.7mm
-
Usage:
-
Pipe fastner
-
Certification:
-
ISO9001:2008, CE
-
Delivring Port:
-
Qingdao/Xingang
-
Surface treatment:
-
Zinc Color Plated
-
Packing:
-
Plastic Bag + Carton + Pallets
-
DELIVERY TIME:
-
15-30 Days

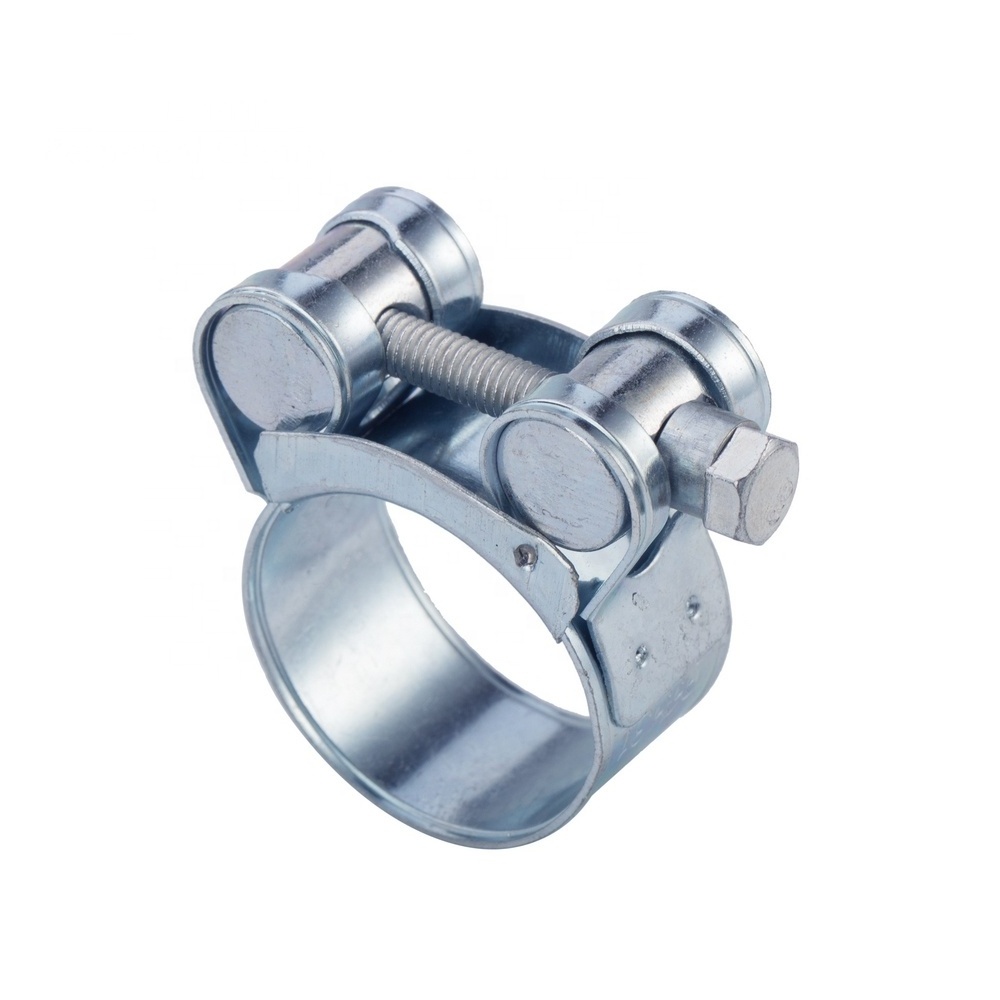

Standard Galvanized Steel High Pressure Heavy Duty Single Bolt Hose Pipe Clamp
1)Sizes: 17-19mm to all
2)Band Width: 18mm, 20mm, 22mm, 24mm, 26mm
3)Material: Galvanized Steel, 201/430/300 series Stainless Steel
4) Any risk of damage to the hose is eliminated by tilted and smooth edge
|
Material |
W1 |
W2 |
W4 |
|
Band |
galvanized steel |
201, 301, 304 stainless steel |
201, 301, 304 stainless steel |
|
Trunnion |
galvanized steel |
galvanized steel |
201, 301, 304 stainless steel |
|
Sleeving |
galvanized steel |
galvanized steel |
201, 301, 304 stainless steel |
|
Bolt |
galvanized steel |
galvanized steel |
201, 301, 304 stainless steel |
| Size | Band Width | Band Thickness W1 | Band Thickness W2/W4 | Thread | Screw Length | Break Torgae |
| mm | mm | mm | mm | mm | Nm | |
| 17-19 | 18 | 0.6 | 0.4 | M5 | 40mm | 4.5Nm |
| 20-22 | 18 | 0.6 | 0.4 | M5 | 40mm | 4.5Nm |
| 23-25 | 18 | 0.6 | 0.6 | M5 | 40mm | 4.5Nm |
| 26-28 | 18 | 0.6 | 0.6 | M5 | 40mm | 4.5Nm |
| 29-31 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 32-35 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 36-39 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 40-43 | 20 | 0.8 | 0.6 | M6 | 50mm | 9Nm |
| 44-47 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 48-51 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 52-55 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 56-59 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 60-63 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 64-67 | 22 | 1.2 | 0.8 | M6 | 55mm | 9Nm |
| 68-73 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 74-79 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 80-85 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 86-91 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 92-97 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 98-103 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 104-112 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 113-121 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 122-130 | 24 | 1.5 | 0.8 | M8 | 70mm | 18Nm |
| 131-139 | 26 | 1.7 | 1 | M10 | 90mm | 29Nm |
| 140-148 | 26 | 1.7 | 1 | M10 | 90mm | 29Nm |
| 149-161 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
| 162-174 | 26 | 1.7 | 1 | M10 | 100mm | 29Nm |
